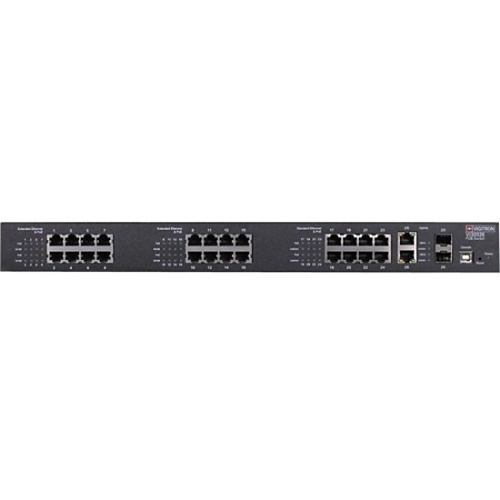

Vigitron Vi30126 MaxiiNet 26-Port Fast Ethernet L2 High Power PoE Managed Switch
VI30126|VG-VI30126
Vigitron Vi30126 MaxiiNet 26-Port Fast Ethernet L2 High Power PoE Managed Switch
VI30126|VG-VI30126
Vigitron
Vigitron Vi30126 MaxiiNet 26-Port Fast Ethernet L2 High Power PoE Managed Switch
VI30126 | VG-VI30126
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Vigitron’s Vi30126 is the next-generation L2 managed switch designed for High power PoE and high bandwidth network applications. It provides a reliable infrastructure for your business network. The Vi30126 delivers unique intelligent features providing unmatched reliability for critical PoE, bandwidth, and port security. The Vi30126 enables individual port programming to apply PoE individually to each port lowering the potential for power overload resulting in potential damage to the switch and connected devices.
Main Features
- Provides 24 port high power PoE
- 24 ports at 10/100Mbps, 2 shared fiber/copper Uplink ports at 1000Mbps
- Two 1000 Mbps independent Uplink ports allow for full use of all 24 ports
- Individual port and main power supply over current, over voltage, over temperature and short protection with automatic recovery
- SNMP for communicating error messaging to local computers
- Automatic IP and and PoE connection and reconnection
- Automatic programmable MAC identification for all connected devices
- Individual port MAC detection and binding for port security
- 685W total power supply, 550W PoE budget
- Programmable Web Access Filtering (WAF) to prevent unauthorized access
General Information
Name: Vigitron Vi30126 MaxiiNet 26-Port Fast Ethernet L2 High Power PoE Managed Switch
Category: Vigitron, Video Surveillance, Data Comm & Networking, Networking Devices, Hubs, Routers & Switches, Network Switches, Network Switches
UPC Code: 841144101297
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number VG-VI30126 Brand Name Vigitron Manufacturer Vigitron, Inc Manufacturer Part Number VI30126 Packaged Quantity 1 Product Line MaxiiNet Product Model Vi30126 Product Name MaxiiNet 26-Port Fast Ethernet L2 High Power PoE Managed Switch Product Type Ethernet Switch Weight 11.80lb
Material Aluminum Media Type Supported Optical Fiber, Twisted Pair Network Switch Type Managed
NDAA Compliant Yes TAA Compliant No
Expansion Slot Type SFP (mini-GBIC) Number of SFP Slots 2 Number of Total Expansion Slots 2 Shared SFP Slot Yes
Connector Type RJ-45 Modular Yes Network (RJ-45) Yes Total Number of Network Ports 26 Uplink Port Yes
Manageable Yes
Network Technology 10/100/1000Base-T, 10/100Base-T, 100/1000Base-X
Ethernet Technology Fast Ethernet, Gigabit Ethernet Layer Supported 2 Networking Standards IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
ADI Part Number Replaces VG-VI3026 Model Number Replaces VI3026
Height 1.8" Width 17.5"
Frequency 50 Hz|60 Hz Input Voltage 120V AC, 230V AC PoE (RJ-45) Port Yes PoE Budget 550W Power Source Power Supply
Length 14.9" Mount Type DIN Rail Mount
Country of Origin US Environmental Certification RoHS, WEEE Environmentally Friendly Yes Features 26 Port PoE Network Switch Package Contents - MaxiiNet 26-Port Fast Ethernet L2 High Power PoE Managed Switch
- Power Cord
- Mounting Kit
- USB Drive:
- Operations Manual
