TRENDnet TI-PG102 10-Port Industrial Gigabit PoE+ DIN-Rail Switch, 20Gbps
TRENDnet TI-PG102 10-Port Industrial Gigabit PoE+ DIN-Rail Switch, 20Gbps
TRENDnet TI-PG102 10-Port Industrial Gigabit PoE+ DIN-Rail Switch, 20Gbps
TI-PG102 | TQ-TIPG102
Please sign in to view pricing and availability and to add to cart.

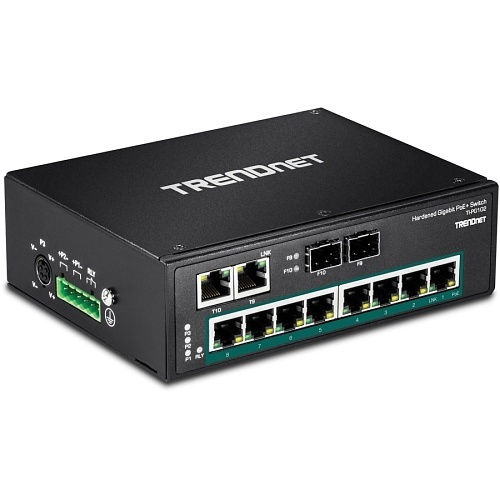

Product Overview
TRENDnet's 10-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG102, has eight gigabit PoE+ ports with a 240 W PoE power budget, plus two gigabit RJ-45 / SFP shared ports. Users are able to connect eight PoE+ devices to the switch, while still providing two gigabit ports for additional network connections. The switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75°C (-40° - 167°F) for industrial environments. PoE Power A 240 W PoE+ power budget supplies up to eight Power over Ethernet devices with PoE+ power. Fault Tolerance Features dual redundant power inputs with output alarm relay. Industrial Hardened Design Equipped with a rugged IP30 rated housing, designed to withstand a high degree of vibration, shock, and operate within a wide temperature range of -40 - 75°C (-40 - 167°F). ately (models: TI-S24048 / 48VDC3000)
Main Features
- 8 x Gigabit PoE+ ports and 2 x Gigabit RJ-45 / SFP shared ports
- 240W PoE Power budget
- 20Gbps Switching capacity
- Power supply sold separately (models; TI-S24048 / 48VDC3000)
- Hardened IP30 rated metal switch

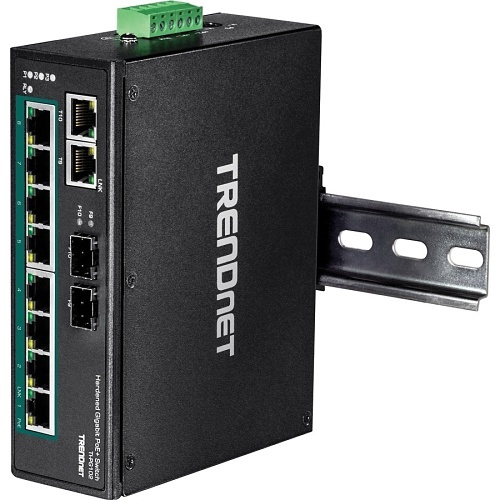

- Includes DIN-rail and wall mounts
- Operating temperature range of -40° - 75°C (-40° - 167°F)
- Dual redundant power inputs with overload current protection
- Alarm output triggered by power failure
General Information
Specifications
ADI Part Number TQ-TIPG102 Brand Name TRENDnet Manufacturer TRENDnet Manufacturer Part Number TI-PG102 Product Line Industrial Product Model TI-PG102 Product Name 10-Port Hardened Industrial Gigabit PoE+ DIN-Rail Switch Product Series TI Product Type Ethernet Switch Weight 1.43lb
Material Metal Media Type Supported Optical Fiber, Twisted Pair Power Consumption 5.67W
NDAA Compliant Yes TAA Compliant Yes
Expansion Slot Type SFP Number of SFP Slots 2 Number of Total Expansion Slots 2 Shared SFP Slot Yes
Modular Yes Total Number of Network Ports 10 Uplink Port No
Manageable No
Network Technology 1000Base-T, 1000Base-X
Ethernet Technology Gigabit Ethernet Layer Supported 2 Networking Standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Depth 10" Height 3" Width 5"
Input Voltage 48-56V DC PoE (RJ-45) Port Yes PoE Budget 240W Power Source Power Supply
Length 6.1" Mount Type Desktop Mount
Limited Warranty Lifetime

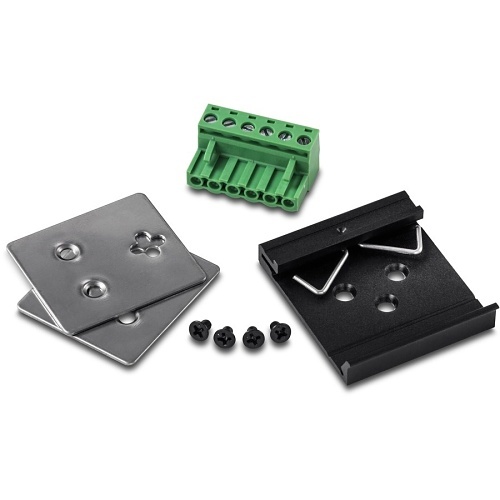

Country of Origin TW Environmentally Friendly Yes Package Contents - 10-Port Industrial Gigabit PoE+ DIN-Rail Switch
- Quick Installation Guide
- Removable Terminal Block
- DIN-rail and Wall Mount Kit
