APC AP7552 Basic Rack 3680va Pdu
AP7552 | 2G-AP7552
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

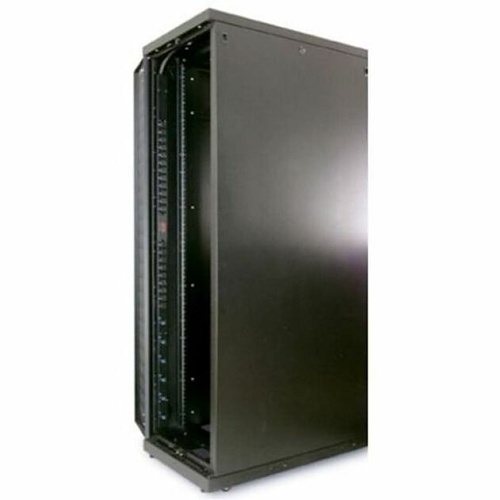

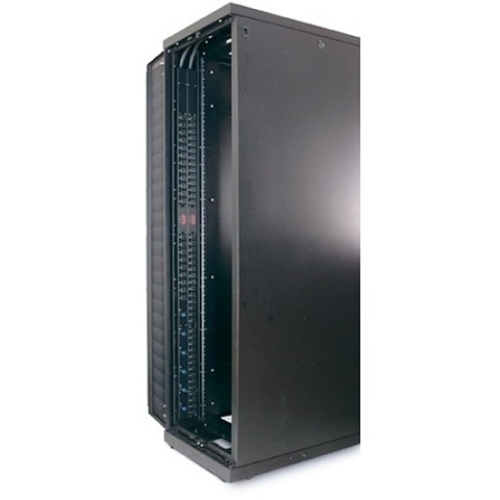

Basic Rack 3680VA PDU which allow users to distribute power outlets to rack-mount equipment with low cost power distribution. APC now offers Basic Rack PDU that mount veritcally, without tools in the rear channel of a NetShelter VX.
Main Features
- A device fitted with multiple outputs for the distribution of electric power
- Basic PDU is the space-saving and cost-effective way to deliver power
- IEC 60320 C13 receptacle type to ensure maximum usability and reliable power output
- IEC 60320 C20 plug/connector type for reliable, productive connectivity and optimal power output
- 200 V input voltage for better reliance and maximum dependability
- 230 V AC output voltage for optimal performance with maximum feasibility
General Information
Name: APC AP7552 Basic Rack 3680va Pdu
Category: APC by Schneider Electric, Batteries & Power Supplies, Power Management, Power Distribution Units
UPC Code: 731304207900
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 2G-AP7552 Brand Name APC by Schneider Electric Manufacturer Schneider Electric SA Manufacturer Part Number AP7552 Packaged Quantity 1 Each Product Line Basic Rack Product Name Basic Rack 3680VA PDU Product Type PDU
Output Voltage 230V AC PDU Type Basic Receptacle Detail 20 x IEC 60320 C13, 4 x IEC 60320 C19 Receptacle Type IEC 60320 C13, IEC 60320 C19
Color Black Depth 1.7" Form Factor Rack Mount Height 63.7" Rack Height 0U Width 2.2"
Input Voltage 230V AC Plug/Connector Type IEC 60320 C20
Mount Type Rack Mount Protection Type Overload Protection
Limited Warranty 2-Year
Environmental Certification WEEE Environmentally Friendly Yes Package Contents - Basic Rack 3680VA PDU
- Installation guide
- Rack mounting brackets
- Toolless mounting kit
