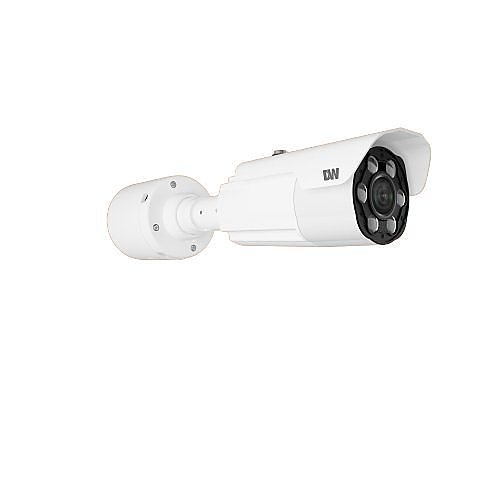

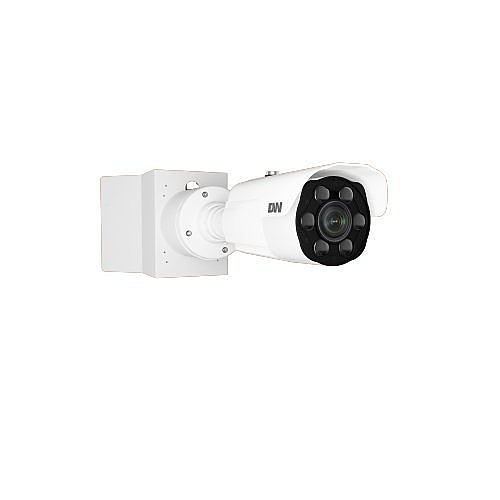

Digital Watchdog DWC-XSBA05MiL 5MP WDR AI ANPR Bullet IP Camera, 6-50mm Varifocal Lens, NDAA Compliant, White
DWC-XSBA05MIL|6K-XSBA05ML
Digital Watchdog DWC-XSBA05MiL 5MP WDR AI ANPR Bullet IP Camera, 6-50mm Varifocal Lens, NDAA Compliant, White
DWC-XSBA05MIL|6K-XSBA05ML
Digital Watchdog
Digital Watchdog DWC-XSBA05MiL 5MP WDR AI ANPR Bullet IP Camera, 6-50mm Varifocal Lens, NDAA Compliant, White
DWC-XSBA05MIL | 6K-XSBA05ML
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
This MEGApix Ai IP camera uses the AI engine to detect and extract the numbers and letters in license plates at up to 75mph, converting the pixels to usable digital data. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.
Main Features
- 5MP sensor at real-time 30 fps
- Star-Light Plus color in near-total darkness technology
- AI Deep Learning object detection
- Create up to 40 separate detection zones
- Easy setup with no analytics calibration
- Seamless integration and control with DW Spectrum
- Reduce false alarms with multiple detection zones and logical rules
- Increase your recording storage with smart recording and no false alarms
- ANPR optical character recognition captures and reads vehicle license plates at up to 75mph speeds
- Long-range vari-focal p-iris lens with motorized zoom and autofocus for complete remote lens control and focused image any time
General Information
Name: Digital Watchdog DWC-XSBA05MiL 5MP WDR AI ANPR Bullet IP Camera, 6-50mm Varifocal Lens, NDAA Compliant, White
Category: Digital Watchdog, Video Surveillance, IP Cameras, Bullet Cameras, ADI Pro Rewards
UPC Code: 812226038992
Country of Origin: Vietnam. Country of origin is subject to change.
Specifications
ADI Part Number 6K-XSBA05ML Brand Name Digital Watchdog Manufacturer Part Number DWC-XSBA05MIL Product Line MEGApix Ai Supported Network Protocols IPv4
American Wire Gauge 18AWG Built-in Microphone Yes Effective Camera Resolution 5MP Field of View Horizontal, Vertical Illumination Distance 130' Lens Type P-iris, Varifocal, Zoom Material Aluminum Die-cast Maximum Frame Rate 30 fps Motion Detection Yes Night Vision Yes Output Voltage 12V DC Programmable Yes Protocols DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, NTP, ONVIF, RTP (UDP/TCP), RTSP, SMTP, SNMPv1/v2/v3 (MIB-2), SSL, TCP/IP, UDP, Zeroconf (AutoIP)
Audio Encoding G.711 Memory Card Slot Yes|1TB
Wide Dynamic Range Yes
Ingress Protection Rating IP67 TAA Compliant Yes
Image Sensor Size 1/2.8" Maximum Video Resolution 2592 x 1944
Operating Humidity 10-90% (Non-condensing) Operating Temperature (T-T) -40-122°F
Minimum Illumination 0.0 lux (B/W)
Aspect Ratio 4:3
Focal Length 6-50 mm Focus Modes Auto, Manual
Network Technology 10 Base-T Ethernet, 100 Base-T Ethernet
Color White Durability Weather Resistant Form Factor Bullet Weight 2.64 lb
Frequency 50 Hz

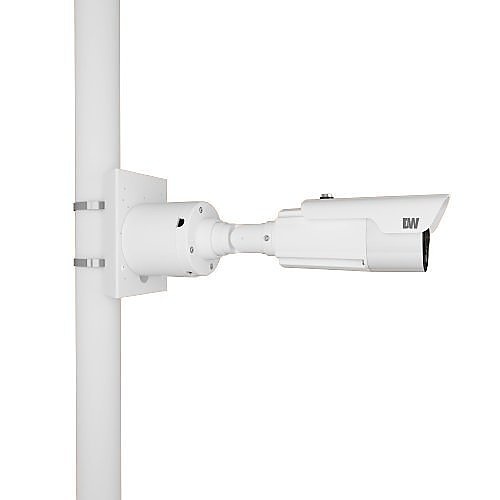

Mount Type Ceiling Mount, Wall Mount
Amperage 1.1A
Limited Warranty 5-Year
Certifications CE, FCC, NDAA, ONVIF, TAA, UL Listing Impact Protection Rating IK10
