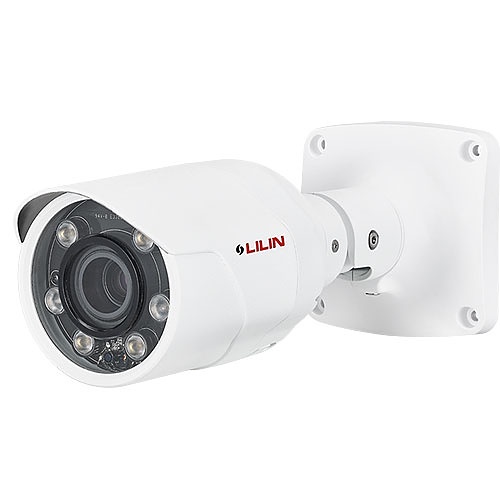

LILIN Z7R8182X2-P06AI Starvis Z7 Series 8MP Outdoor PoE IR Bullet IP Camera with License Plate Recognition, 6-22mm Motorized Lens, NDAA Compliant, White
Z7R8182X2-P06AI|WC-Z7R8182X2
Focal Length: 22 mm
LILIN Z7R8182X2-P06AI Starvis Z7 Series 8MP Outdoor PoE IR Bullet IP Camera with License Plate Recognition, 6-22mm Motorized Lens, NDAA Compliant, White
Z7R8182X2-P06AI|WC-Z7R8182X2
Focal Length: 22 mm
LILIN Z7R8182X2-P06AI Starvis Z7 Series 8MP Outdoor PoE IR Bullet IP Camera with License Plate Recognition, 6-22mm Motorized Lens, NDAA Compliant, White
Z7R8182X2-P06AI | WC-Z7R8182X2
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
AI Features | Aida-EDGEFLOW
- This system is designed for outdoor security defense. It can accurately detect an object when invades the security zone and triggered a security alarm, with left-right direction detection. It can recognize 6 FPS and detect 24 objects at the same time, with each object captured larger than 120x120 px.
- LILIN people and car counting for premises' capacity solution effectively analyze the capacity of humans and cars in a premises area and provide traffic flow statistics for the control of traffic signals. Count results will send to the storage daily and reset at a specific time.
- It manages to recognize car plates under 100km/h and supports up to 2000 whitelisted, 100 black listed, and 600 visitor's car plates. It can record up to 600 incidents and integrate with a third-party summon system.
Main Features
- LPR License Included: Highway Application with 5-50 mm Motorized P-Iris lens
- High sensitive 8MP CMOS image sensor for strong low light performance
- NDAA and TAA Compliant
- 30fps @ 3840 × 2160
- High efficiency IR LED( up to 100ft)
- IP67 rain/dust resistant and IK10 Vandal resistant housing
- Support (Up to 1TB) Micro SD/SDHC/SDXC card for recording (SD Card Sold Separately)
- 2-way audio supported
- Onvif Supported
General Information
Name: LILIN Z7R8182X2-P06AI Starvis Z7 Series 8MP Outdoor PoE IR Bullet IP Camera with License Plate Recognition, 6-22mm Motorized Lens, NDAA Compliant, White
Category: Merit LILIN, Video Surveillance, IP Cameras, Bullet Cameras
UPC Code: 4710483864780
Country of Origin: Taiwan, Province of China. Country of origin is subject to change.
Specifications
ADI Part Number WC-Z7R8182X2 Brand Name Merit LILIN Manufacturer Merit LILIN Ent. Co., Ltd Manufacturer Part Number Z7R8182X2-P06AI Product Line H.265 Product Model Z7R8182X2-P Product Name Starvis 4K P-Iris Auto Focus IR AI Smart IP Camera Product Series Z7 Product Type Network Camera
Connectivity Technology Wired Effective Camera Resolution 8MP Field of View 42.8° (W) - 18.3° (T) (H) 23.6° (W) - 10.4° (T) (V) 49.7° (W) - 21.1° (T) (D) Lens Type Varifocal Maximum Aperture f/1.6 Maximum Frame Rate 30fps Minimum Focal Length 6mm Night Vision Yes Night Vision Type Infrared Optical Zoom 3.7x
Night Vision Distance 131.23 ft Wide Dynamic Range Yes
Ingress Protection Rating IP68 NDAA Compliant Yes TAA Compliant Yes
Maximum Video Resolution 3840 x 2160
Maximum Operating Temperature 122°F (50°C) Minimum Operating Temperature -40°F (-40°C) Operating Humidity 0.9
Longest Shutter Speed 1/25 Second Shortest Shutter Speed 1/30000 Second
Network (RJ-45) Yes
Focal Length 22 mm Lens Included Yes Maximum Focal Length 22 mm Minimum Aperture f/3.3
Remote Management Yes
Color White Depth 10.2" Durability Dust Resistant, Heat Resistant, Impact Resistant, Rain Resistant, Vandal Resistant, Waterproof Form Factor Bullet Height 4" Weight 2.25 lb Width 4"
Input Voltage 12V DC
Recording Formats 4K Storage Type Memory Card
Analog Video Signal Format CVBS Maximum Resolution 1280 x 720
Features 3D Noise Reduction, Alarm Detection, Audio Detection, Auto Gain Control, Automatic White Balance, Day/Night, Motion Detection, Privacy Masking, SD Card Local Storage, Tamper Detection Impact Protection Rating IK10 Indoor/Outdoor Outdoor
