Digital Watchdog DW-BJRR2Y380T Blackjack Rack Server, Windows 10 IoT, 360TB
DW-BJRR2Y380T|6K-RR2Y380T
Hard Drive Capacity: 380TB
Operating System Compatibility: Windows
RAID Levels: RAID 5
Digital Watchdog DW-BJRR2Y380T Blackjack Rack Server, Windows 10 IoT, 360TB
DW-BJRR2Y380T|6K-RR2Y380T
Hard Drive Capacity: 380TB
Operating System Compatibility: Windows
RAID Levels: RAID 5
Digital Watchdog DW-BJRR2Y380T Blackjack Rack Server, Windows 10 IoT, 360TB
DW-BJRR2Y380T | 6K-RR2Y380T
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

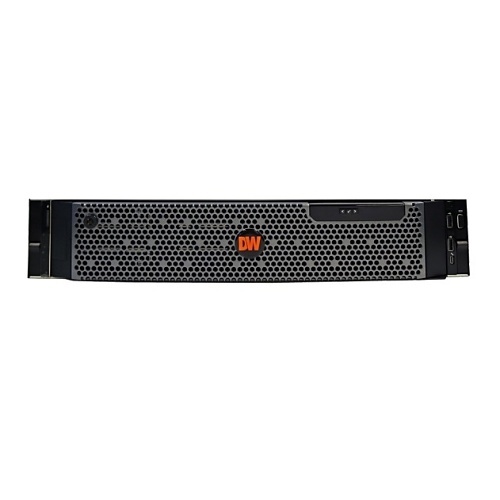

This dual-processor Blackjack Rack server is the ultimate solution for recording multiple IP cameras of any resolution at up to 600Mbps throughput. The UL listed server includes Windows 10 IoT, Windows Server 2019, or Linux Ubuntu OS on a separate mirrored 240GB SSD. The 2U rack-mountable hardware features dual Intel Xeon processors, 32GB memory, up to four (4) 1GB and 10GB network cards and a dual power supply. The Blackjack Rack server comes preloaded with DW Spectrum IPVMS and eight recording licenses, up to 520TB of raw internal storage with RAID5 and RAID6 options and removable hot-swappable drives.
Main Features
- Supports all ONVIF conformant IP cameras
- Storage options 380-520TB raw internal storage
- Record and manage single- and multi-sensor IP cameras of any resolution up to 600Mbps throughput
- Hot Swappable HDDs
- OS RAID 1, Data RAID5, 6 Options
- Redundant power supply
- 2x 1GB Base-T Ethernet Ports, 2x 10GB SFP+ Fiber
- Windows 10 IoT, Ubuntu Linux, Windows Server 2019 OS options on separate SSD
- Dedicated RAID controller
General Information
Name: Digital Watchdog DW-BJRR2Y380T Blackjack Rack Server, Windows 10 IoT, 360TB
Category: Digital Watchdog, ADI Pro Rewards
UPC Code: 840407901001
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number 6K-RR2Y380T Brand Name Digital Watchdog Manufacturer Part Number DW-BJRR2Y380T Maximum Supported Storage Capacity 380TB Minimum Storage Drive Space 5TB Product Line Blackjack Product Series Rack Y
Storage Capacity 360TB
Recording Modes Continuous, Motion Detection, Motion Plus Low Res, Motion Plus Object, Object Only
TAA Compliant Yes
RAID Levels RAID 5
Maximum Video Resolution 1920 x 1080
Operating Humidity 20-90% RH Operating Temperature (T-T) 41-104°F
Number of USB Ports 1 Output Ports Mini DisplayPort
License Quantity 8
Data Transfer Rate 600 Mbps
Ethernet Technology 1 Gigabit Ethernet, 10 Gigabit SFP+ Fiber Remote Management Yes
Dimensions 3.41" x 17.6" x 31.9" Weight 88.2 lb
Software Included Yes
Hard Drive Capacity 380TB Number of Hard Drives Supported 26
Certifications CE, FCC, NDAA, ONVIF, TAA, UL Listed Operating System Compatibility Windows Package Contents Keyboard, Mouse
