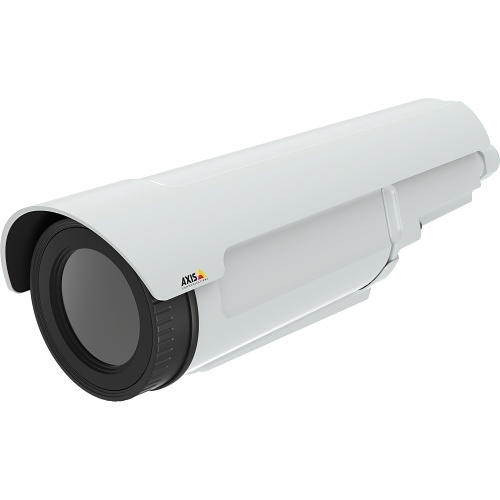

AXIS Q1942-E 10mm 30fps PT Mount Thermal IP Camera, Wide VGA Thermal Coverage, White
Q1942-E|Z4-0981001
AXIS Q1942-E 10mm 30fps PT Mount Thermal IP Camera, Wide VGA Thermal Coverage, White
Q1942-E|Z4-0981001
Axis Communications
AXIS Q1942-E 10mm 30fps PT Mount Thermal IP Camera, Wide VGA Thermal Coverage, White
Q1942-E | Z4-0981001
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The bullet-style, outdoor-ready AXIS Q1942-E PT Mount offers the possibility of mounting the camera on a pan/tilt motor to increase installation flexibility. The thermal resolution of 640x480 and a range of lenses make it easy to detect and verify people, objects and incidents from pitch dark areas to a sunlit parking lot. A noise filter gives improved thermal image contrast while keeping noise levels low, without adding blur and ghost effects. AXIS Q1942-E PT Mount withstands harsh weather conditions and has a built-in heater for the window. Additionally, it offers Power over Ethernet and has a microSD card slot.
Main Features
- Axis Zipstream
- Electronic Image Stabilization
- PT mount-ready
- Powerful performance for video analytics
- VGA thermal imaging
General Information
Name: AXIS Q1942-E 10mm 30fps PT Mount Thermal IP Camera, Wide VGA Thermal Coverage, White
Category: Axis Communications, Video Surveillance, IP Cameras, Thermal Imaging Cameras
UPC Code: 7331021058736
Country of Origin: Poland. Country of origin is subject to change.
Specifications
ADI Part Number Z4-0981001 Brand Name AXIS Communications Manufacturer Axis Communications Manufacturer Part Number 0981-001 Product Line Q Product Model Q1942-E Product Name AXIS Q1942-E PT MOUNT 10MM 30 FPS Product Series Q19 Product Type Thermal cameras Supported Network Protocols IPv6 USGv6|NIST SP500-267 Weight 4.40lb
Aperture f/1.24 Connectivity Technology Wired Field of View Horizontal, Vertical Lens Type Fixed Maximum Frame Rate 30fps Minimum Focal Length 10mm Video Formats H.264, MJPEG, MPEG-4
Image Sensor Type Uncooled Microbolometer Wide Dynamic Range Yes
Ingress Protection Rating IP66 NDAA Compliant Yes TAA Compliant Yes
Image Sensor Size 640 x 480 Maximum Video Resolution 800 x 600
Operating Temperature (T-T) -40-104°F
Network (RJ-45) Yes
Focal Length 10mm Maximum Focal Length 10 mm
Memory Card Supported Yes
Remote Management Yes
Color White Durability Dustproof, Waterproof
Maximum Power Consumption 13W Power over Ethernet (PoE) Yes
Mount Type Ceiling Mount, Corner Mount, Pole Mount, Wall Mount
Certifications EN 50121-4, EN 55022 Class A, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 22 Class A, VCCI Class A Certifications & Standards ONVIF G, ONVIF S Country of Origin PL Environmental Certification IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-52, IEC 60068-2-6, IEC/EN 60529 IP66, MIL-STD-810F (Method 521.2), NEMA 250 Type 4X Indoor/Outdoor Outdoor
