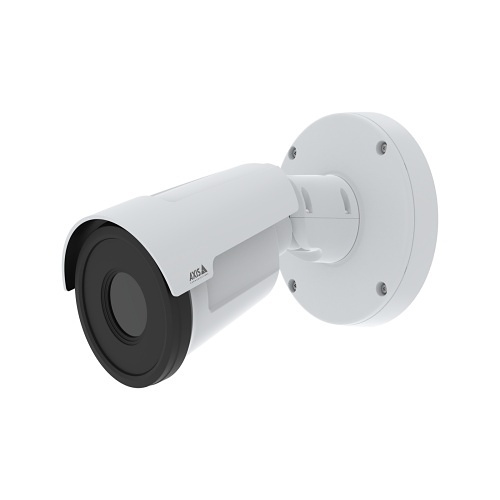

AXIS Q1971-E Thermal Camera, 35mm Lens, 8.3fps, Detection 24/7, IP66, IP67
Q1971-E|Z4-02954001
AXIS Q1971-E Thermal Camera, 35mm Lens, 8.3fps, Detection 24/7, IP66, IP67
Q1971-E|Z4-02954001
Axis Communications
AXIS Q1971-E Thermal Camera, 35mm Lens, 8.3fps, Detection 24/7, IP66, IP67
Q1971-E | Z4-02954001
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Ideal for perimeter protection, this robust, halogen-free camera can detect and verify regardless of weather and light conditions even in low-contrast scenes. With five lens alternatives, it ensures optimal detection to suit specific needs. This AI-based camera enables proactive surveillance. And AXIS Perimeter Defender is available for enhanced protection. Built on a powerful platform, it supports third-party analytics. It features two I/O ports and with edge-to-edge technology you can connect, for instance, a horn speaker to enable audio alarms. Furthermore, Axis Edge Vault safeguards the device and offers FIPS 140-2 Level 2 certified key storage and operations.
Main Features
- Built-in cybersecurity with Axis Edge Vault
- Compact, robust, and halogen-free
- Five lens alternatives
- Reliable thermal detection 24/7
- Support for AXIS Perimeter Defender
General Information
Name: AXIS Q1971-E Thermal Camera, 35mm Lens, 8.3fps, Detection 24/7, IP66, IP67
Category: Axis Communications, Video Surveillance, IP Cameras, Thermal Imaging Cameras
UPC Code: 7331021086746
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number Z4-02954001 Brand Name AXIS Communications Manufacturer Part Number 02954-001 Product Name AXIS Q1971-E 35 mm 8.3 fps Product Type Thermal cameras Supported Network Protocols IPv6 USGv6|NIST SP500-267
Aperture f/1.14 Field of View Horizontal, Vertical Maximum Frame Rate 8.3fps Video Formats H.264, MJPEG
Image Sensor Type Uncooled Microbolometer
Ingress Protection Rating IP66, IP67
Image Sensor Size 384 x 288 Maximum Video Resolution 768 x 576
Maximum Operating Temperature 140°F Minimum Operating Temperature -40°F Operating Temperature (T-T) -40-104°F
Focal Length 35mm Maximum Focal Length 35 mm
Memory Card Supported Yes
ADI Part Number Replaces Z4-02150001, Z4-02152001, Z4-02154001, Z4-02155001, Z4-02156001 Model Number Replaces 02150-001, 02152-001, 02154-001, 02155-001, 02156-001
Maximum Power Consumption 13W Power over Ethernet (PoE) Yes
Certifications CISPR 32 Class A, CISPR 35, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES(A)/NMB(A), IEC 62236-4, KS C 9832 Class A, KS C 9835, VCCI Class A Certifications & Standards ONVIF G, ONVIF M, ONVIF S, ONVIF T Environmental Certification IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK10, ISO 21207 (Method B), MIL-STD-810H (Method 501.7), MIL-STD-810H (Method 502.7), MIL-STD-810H (Method 505.7), MIL-STD-810H (Method 506.6), MIL-STD-810H (Method 507.6), MIL-STD-810H (Method 509.7), MIL-STD-810H (Method 510.7), MIL-STD-810H (Method 514.8), MIL-STD-810H (Method 516.8), MIL-STD-810H (Method 521.4), NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9) Environmentally Friendly Yes Impact Protection Rating IK10 Indoor/Outdoor Outdoor
