Axis Communications
AXIS A1214 Network Door Controller Kit
02684-001 | Z4-02684001
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

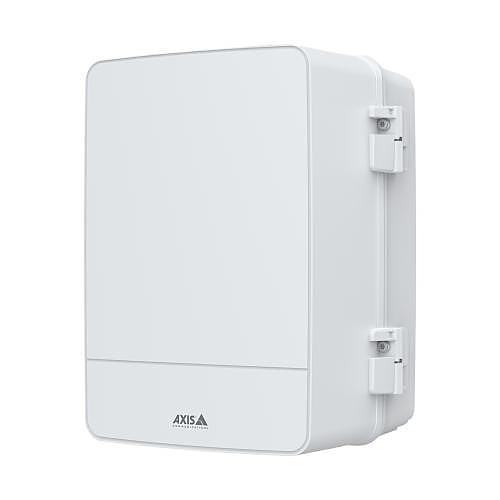

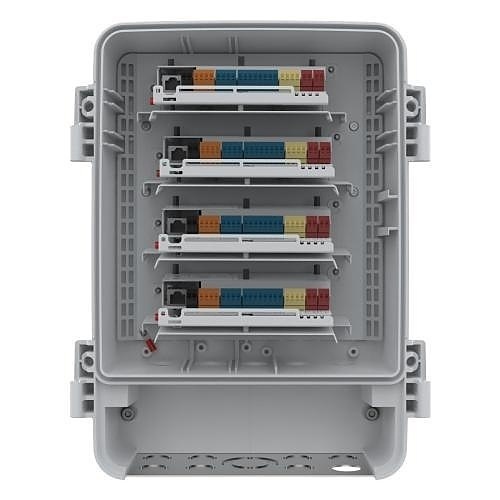

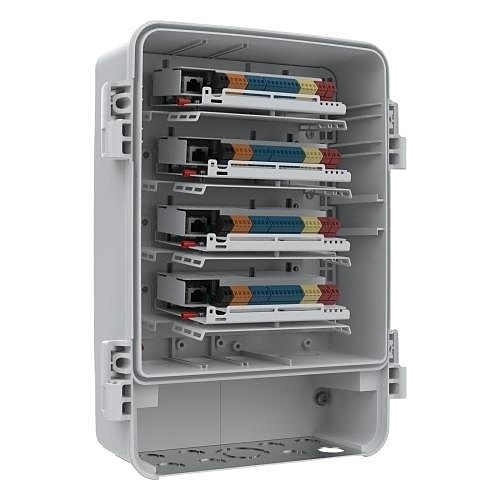

This all-in-one, out-of-the-box-ready kit can control up to four doors. It includes four AXIS A1210-B units enclosed in AXIS TQ1808-VE Surveillance Cabinet, a robust, vandal-resistant IK10, IP66, and NEMA 4x-rated cabinet and all powered by PoE cable. Fully integrated within Axis end-to-end solutions, it’s optimized for both small and large installations and supports flexible authentication using various credentials. This cost-effective kit offers fast and easy installation. With intelligence on the edge, it can internally handle all tasks related to door access—even if the network is down. Furthermore, thanks to built-in cybersecurity features, it prevents unauthorized access and safeguards your system.
Main Features
- Built-in cybersecurity features
- Complete control for four doors
- Fully integrated within Axis end-to-end solutions
- Intelligence on the edge
- Vandal-resistant enclosure
General Information
Name: AXIS A1214 Network Door Controller Kit
Category: Axis Communications, Access Control, Access Control Panels & Accessories, Access Control Panel Kits
UPC Code: 7331021081635
Country of Origin: Poland. Country of origin is subject to change.
Specifications
ADI Part Number Z4-02684001 Brand Name Axis Communications Manufacturer Axis Communications Manufacturer Part Number 02684-001 Product Line A Product Model A1214MP Product Name AXIS A1214 Product Series A12 Product Type Door controllers
Number of Doors 4
TAA Compliant Yes
Color White Height 14" Weight 78376.45lb
Input Voltage 12V DC
Certifications EAC, EN 50130-4, EN 55032 Class B, EN 55035, EN 61000-3-2, EN 61000-3-3, KC KN32 Class B, KC KN35 Environmental Certification cUL, UL Environmentally Friendly Yes Package Contents A1214Network Door Controller KitInstallation guideConnector kit (Mount)Grounding kit, cable tiesPre-Mount cable gasketsPre-Mount DIN railCable clasand more below, Cable straps, Device Mounting Bracket, Power cover
