AXIS M1135-E Mk II M11 Series 2MP Outdoor WDR Box Camera, 3-10.5mm Varifocal Lens, White (Replaces M1135-E)
M1135-E MK II|Z4-02485001
AXIS M1135-E Mk II M11 Series 2MP Outdoor WDR Box Camera, 3-10.5mm Varifocal Lens, White (Replaces M1135-E)
M1135-E MK II|Z4-02485001
Axis Communications
AXIS M1135-E Mk II M11 Series 2MP Outdoor WDR Box Camera, 3-10.5mm Varifocal Lens, White (Replaces M1135-E)
M1135-E MK II | Z4-02485001
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

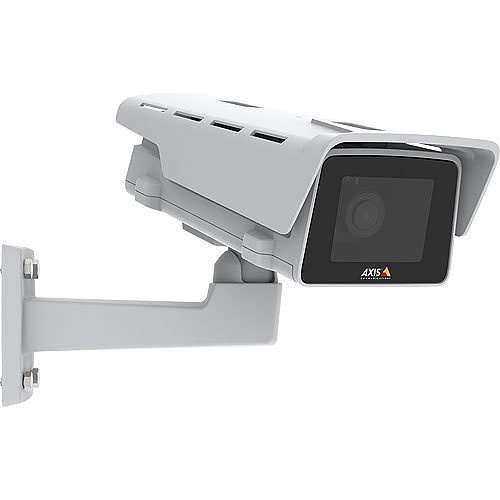

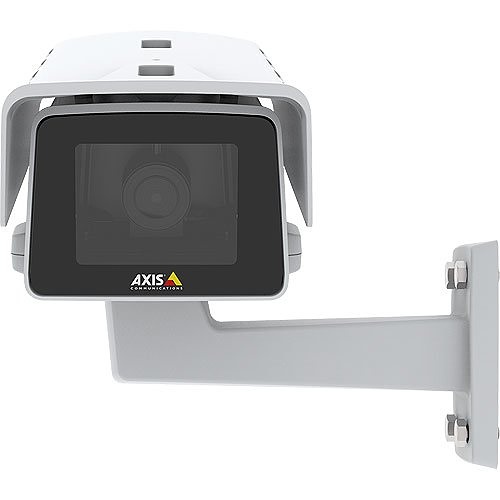

This affordable, outdoor-ready camera is easy to install and operate. Enclosed in an IP66-, IK10- and NEMA 4X-rated casing, it supports PoE and redundant DC power to ensure your data is safeguarded in the event of a power outage. Featuring Axis Lightfinder and Axis Forensic WDR, it delivers true colors and great details in challenging light or near darkness. Plus, audio input lets you record video with sound. The camera's CS-mount enables flexibility for exchangeable lenses. With AXIS Object Analytics preinstalled, it’s possible to detect and classify humans and vehicles. Furthermore, Axis Zipstream with H.264/H.265 significantly lowers bandwidth and storage requirements.
Main Features
- AXIS Object Analytics
- Audio input
- Compact and flexible design
- Lightfinder and Forensic WDR
- Remote zoom and focus with i-CS
General Information
Name: AXIS M1135-E Mk II M11 Series 2MP Outdoor WDR Box Camera, 3-10.5mm Varifocal Lens, White (Replaces M1135-E)
Category: Axis Communications, Video Surveillance, IP Cameras, Box Cameras
UPC Code: 7331021078253
Country of Origin: Poland. Country of origin is subject to change.
Specifications
ADI Part Number Z4-02485001 Brand Name AXIS Communications Manufacturer Axis Communications Manufacturer Part Number 02485-001 Product Line M Product Model M1135-E MK II Product Name AXIS M1135-E MK II Product Series M11 Product Type Fixed cameras Supported Network Protocols IPv6 USGv6|NIST SP500-267
Aperture f/1.4 Connectivity Technology Wired Effective Camera Resolution 2MP Field of View Horizontal, Vertical Lens Mount Type i-CS Lens Type Varifocal Maximum Aperture f/1.4 Maximum Frame Rate 30fps Minimum Focal Length 3mm Night Vision Yes Optical Zoom 3.5x Video Formats H.264, H.265, MJPEG
Image Sensor Type CMOS Wide Dynamic Range Yes
Ingress Protection Rating IP66 TAA Compliant Yes
Image Sensor Size 1/2.9" Maximum Video Resolution 1920 x 1080
Maximum Operating Temperature 122°F (50°C) Minimum Operating Temperature -13°F (-25°C)
Minimum Illumination 0.02 lux
Network (RJ-45) Yes
Focal Length 3-10.5mm Lens Included Yes Maximum Focal Length 10.50 mm
Memory Card Supported Yes
Remote Management Yes
ADI Part Number Replaces Z4-01772001 Model Number Replaces 01772-001, M1135-E
Color White Durability Dustproof, Impact Resistant, Waterproof
Maximum Power Consumption 7W Power over Ethernet (PoE) Yes
Mount Type Box Mount, Wall Mount
Recording Formats Full HD Storage Type Memory Card
Maximum Resolution 1280 x 720
Certifications EN 55024, EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A Certifications & Standards ONVIF G, ONVIF M, ONVIF S, ONVIF T Country of Origin PL Environmental Certification IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 62262 IK10, NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9) Features Audio Detection, Built-in Microphone, Day/Night, SD Card Local Storage, Tampering Alarm, Wide Dynamic Range Impact Protection Rating IK10 Indoor/Outdoor Outdoor
