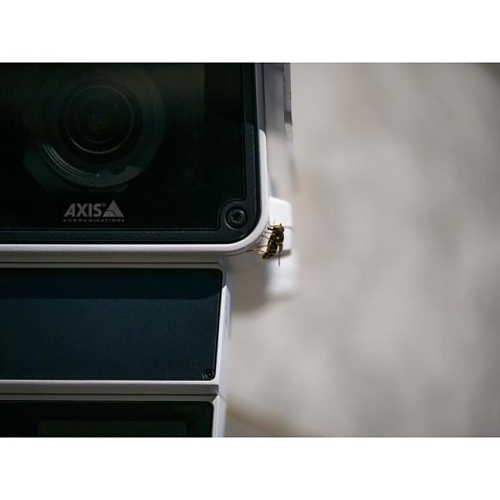

AXIS Q1656-DLE Q16 Series 4MP Radar-Video Fusion Box IP Camera, 3.9-10mm Varifocal Lens, White
Q1656-DLE|Z4-02420001
AXIS Q1656-DLE Q16 Series 4MP Radar-Video Fusion Box IP Camera, 3.9-10mm Varifocal Lens, White
Q1656-DLE|Z4-02420001
Axis Communications
AXIS Q1656-DLE Q16 Series 4MP Radar-Video Fusion Box IP Camera, 3.9-10mm Varifocal Lens, White
Q1656-DLE | Z4-02420001
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
This unique device fuses two powerful technologies to deliver next-level detection and visualization for reliable wide-area intrusion protection 24/7. Video and radar analytics come together in AXIS Object Analytics to provide precise localization and object classification powered by deep learning and distance and speed measurements based on an object’s radar signature and movement characteristics. By default, our intelligent fusion system handles notifications in the most advantageous way depending on what best suits the circumstances. Or, if you prefer, you can choose between minimizing false notifications or never missing a thing.
Main Features
- For remote surveillance needs, this network camera is best suited
- Up to 2688 x 1512 resolution for surveillance in real-time
- CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
- 10 mm maximum focal length provides incredible detail and how effective is your network camera
- 3.9x optical zoom ensures maximum surveillance productivity without compromising quality
- Provides night vision of objects at a distance of up to 124.67 ft
- Infrared night vision type consumes very little electrical power and provides evidentiary quality night-time surveillance video
- P-iris camera iris provides dependable output to ensure maximum usability according to the lighting conditions and situations
- Varifocal lens type for sharp, detailed focus to ensure maximum surveillance usability
- PoE power source type for your network camera better reliance and maximum energy dependability
General Information
Name: AXIS Q1656-DLE Q16 Series 4MP Radar-Video Fusion Box IP Camera, 3.9-10mm Varifocal Lens, White
Category: Axis Communications, Video Surveillance, IP Cameras, Box Cameras
UPC Code: 7331021077027
Country of Origin: Poland. Country of origin is subject to change.
Specifications
ADI Part Number Z4-02420001 Brand Name Axis Communications Manufacturer Axis Communications Manufacturer Part Number 02420-001 Product Line Q Product Model Q1656-DLE Product Name AXIS Q1656-DLE Product Series Q16 Product Type Fixed cameras; Radars Supported Network Protocols IPv6 USGv6|NIST SP500-267
Aperture f/1.5 Connectivity Technology Wired Effective Camera Resolution 4MP Field of View Horizontal, Vertical Lens Mount Type i-CS Lens Type Varifocal Maximum Frame Rate 60 fps Minimum Focal Length 3.90 mm Night Vision Yes Night Vision Type Infrared Optical Zoom 3.9x
Night Vision Distance 124.67 ft Wide Dynamic Range Yes
Ingress Protection Rating IP66
Image Sensor Size 1/1.8" Maximum Video Resolution 2688 x 1512
Maximum Operating Temperature 140°F (60°C) Minimum Operating Temperature -40°F (-40°C) Operating Humidity 100% Operating Temperature (T-T) -40-60°C
Longest Shutter Speed 1 Second Minimum Illumination 0.01 lux
Network (RJ-45) Yes
Focal Length 3.9-10mm Lens Included Yes Maximum Focal Length 10 mm
Memory Card Supported Yes
Remote Management Yes
Color White Durability Dustproof, Impact Resistant, Waterproof Weight 11.02 lb
Input Voltage 10V DC, 28V DC Maximum Power Consumption 26W Power over Ethernet (PoE) Yes
Mount Type Box Mount, Wall Mount
Storage Type Memory Card
Maximum Resolution 1280 x 720
Certifications CISPR 32 Class A, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4 Certifications & Standards ONVIF G, ONVIF M, ONVIF S, ONVIF T Environmental Certification IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 62262 IK08, ISO 21207 (Method B), NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9) Features Alarm Detection, Audio Detection, Auto Tracking, Day/Night, Electronic Image Stabilization, Motion Detection, PTZ, Rugged Design, Video Management System, Wide Dynamic Range Impact Protection Rating IK10 Indoor/Outdoor Outdoor
