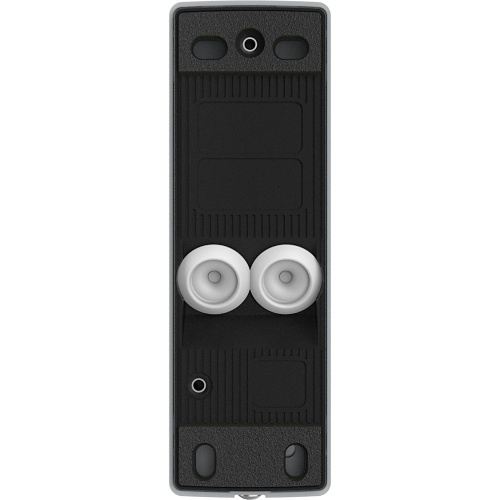

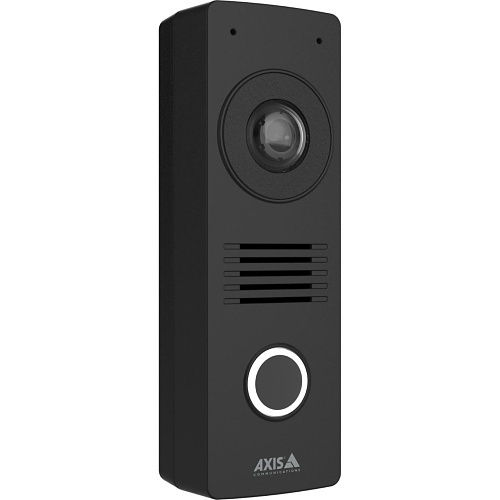

AXIS I8116-E Network Video Intercom, 5MP Video with Audio
I8116-E|Z4-02409001
AXIS I8116-E Network Video Intercom, 5MP Video with Audio
I8116-E|Z4-02409001
Axis Communications
AXIS I8116-E Network Video Intercom, 5MP Video with Audio
I8116-E | Z4-02409001
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
This compact and powerful network video intercom operates as a communication device and security camera, providing 5MP video, two-way communication, and remote entry control. Open standards such as ONVIF and Session Initiation Protocol (SIP) combined with its small size enables unique opportunities for system design and integration. WDR and efficient noise cancellation ensure performance in demanding situations, such as strong backlight or surrounding noise. It’s also possible to wire an OSDP reader to the IO connector for trouble-free access control using Axis Access Control solutions. Furthermore, it comes with AXIS Object Analytics preinstalled, and built-in cybersecurity features help prevent unauthorized access.
Main Features
- Mullion form factor
- High quality 5MP video with audio
- SIP support
- Support for analytics based on deep learning
- Built-in cybersecurity features
General Information
Name: AXIS I8116-E Network Video Intercom, 5MP Video with Audio
Category: Axis Communications, Communications, Intercoms & Telephone Entry, Intercom Door Stations, Trending at ADI
UPC Code: 7331021076891
Country of Origin: Poland. Country of origin is subject to change.
Specifications
ADI Part Number Z4-02409001 Brand Name Axis Communications Manufacturer Axis Communications Manufacturer Part Number 02409001 Product Line I Product Model I8116-E Product Name AXIS I8116-E Black Product Series I81 Product Type Fixed cameras; Intercoms
Application/Usage Access Control, Outdoor Built-in Microphone Yes Communication Mode Full-duplex Effective Camera Resolution 5MP Field of View Horizontal, Vertical Maximum Frame Rate 30fps Power Consumption 10.80W
Horizontal Viewing Angle 162° Wide Dynamic Range Yes
Ingress Protection Rating IP65 TAA Compliant Yes
Image Sensor Size 1/2.7" Maximum Video Resolution 2592 x 1944 Vertical Viewing Angle 118°
Operating Temperature (T-T) -22-140°F
Minimum Illumination 0.15 lux
Focal Length 1.95mm
ADI Part Number Replaces Z4-0871001 Model Number Replaces 0871-001
Depth 1.6" Height 5.8" Weight 14.11oz Width 1.9"
Certifications EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KS C 9832 Class A, RCM AS/NZS CISPR 32 Class A, VCCI Class A Environmental Certification IEC/EN 60529 IP65, IEC/EN 62262 IK07, NEMA 250 Type 4X Indoor/Outdoor Outdoor
