AXIS M5075-G M50 Series 2MP Palm-Sized WDR PTZ Camera, 5x Optical Zoom
M5075-G|Z4-02347004
AXIS M5075-G M50 Series 2MP Palm-Sized WDR PTZ Camera, 5x Optical Zoom
M5075-G|Z4-02347004
Axis Communications
AXIS M5075-G M50 Series 2MP Palm-Sized WDR PTZ Camera, 5x Optical Zoom
M5075-G | Z4-02347004
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

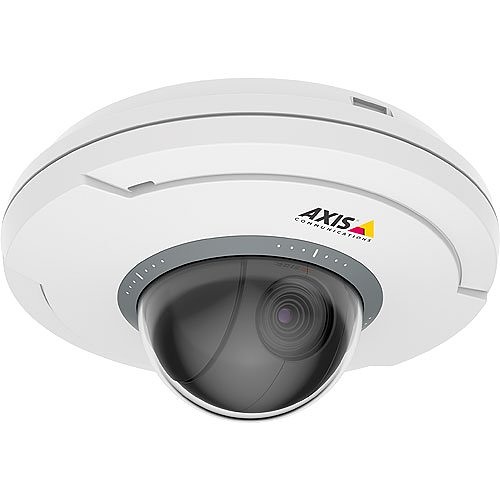

AXIS M5075-G is a discreet, palm-sized PTZ camera designed to fit in anywhere. It delivers sharp, detailed video in HDTV 1080p/2 MP resolution. PTZ functionality with 5x optical zoom and 12x digital zoom allows you to benefit from sweeping overviews and zoom in to get the details. This plug & play solution offers wireless I/O connectivity with up to 32 Z-Wave® devices (six in VMS) in a system setup, for instance using on/off commands. Featuring a built-in microphone, it also includes analytics such as scream detection to alert you whenever a scream is detected in the camera's proximity.
Main Features
- Up to 1920 x 1080 video resolution
- CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
- 11 mm maximum focal length with sharp output to help identify and locate the object with added efficiency
- f/1.4 maximum aperture for productive capturing according to focal length and lighting conditions
- 5x optical zoom for bringing the subject closer for maximum surveillance efficiency
- Full HD recording format for a lively video quality experience with maximum dependability
- Varifocal lens type for sharp, detailed focus to ensure maximum surveillance usability
- PoE power source type for your network camera provides optimal performance with maximum usability
- Ceiling Mount mount type is reliable and allows trouble-free and easy usage
- PTZ feature for better reliance and usability
General Information
Name: AXIS M5075-G M50 Series 2MP Palm-Sized WDR PTZ Camera, 5x Optical Zoom
Category: Axis Communications, Video Surveillance, HDoC Cameras, PTZ Security Cameras
UPC Code: 7331021076204
Country of Origin: Taiwan, Province of China. Country of origin is subject to change.
Specifications
ADI Part Number Z4-02347004 Brand Name Axis Communications Manufacturer Axis Communications Manufacturer Part Number 02347-004 Product Line M Product Model M5075-G Product Name AXIS M5075-G US Product Series M50 Product Type PTZ cameras Supported Network Protocols IPv6 USGv6 Weight 13.40oz
Aperture f/1.4-2.5 Built-in Microphone Yes Connectivity Technology Wired Effective Camera Resolution 2MP Field of View Horizontal, Vertical Lens Type Varifocal Maximum Aperture f/1.4 Maximum Frame Rate 60fps Minimum Focal Length 2.2mm Night Vision Yes Optical Zoom 5x
Wide Dynamic Range Yes
Ingress Protection Rating IP51 TAA Compliant Yes
Image Sensor Size 1/2.8" Maximum Video Resolution 1920 x 1080
Maximum Operating Temperature 113°F (45°C) Minimum Operating Temperature 32°F (0°C) Operating Humidity 0.9 Operating Temperature (T-T) 32-113°F
Longest Shutter Speed 2 Second Minimum Illumination 0.1 lux Shortest Shutter Speed 1/17000 Second
Network (RJ-45) Yes
Focal Length 2.2-11.0mm Lens Included Yes Maximum Focal Length 11 mm Minimum Aperture f/2.5
Memory Card Supported Yes
Remote Management Yes
ADI Part Number Replaces Z4-01107004 Model Number Replaces 01107-004
Color White Durability Dust Resistant Height 2"
Maximum Power Consumption 9W Power over Ethernet (PoE) Yes
Diameter 5.1" Mount Type Ceiling Mount, Surface Mount
Recording Formats Full HD Storage Type Memory Card
Maximum Resolution 1280 x 720
Limited Warranty 5-Year
Certifications EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A Certifications & Standards ONVIF G, ONVIF S, ONVIF T Features Audio Detection, Built-in Microphone, Day/Night, HTTPS Encryption, Password Protection, Privacy Masking, PTZ, SD Card Local Storage, White Balance, Wide Dynamic Range Package Contents - M5075-G PTZ Camera
- AXIS M50 Mounting Kit
- Installation Guide
- Windows decoder 1-user license
