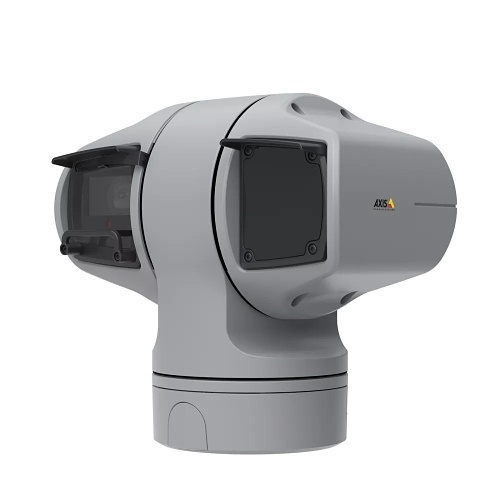

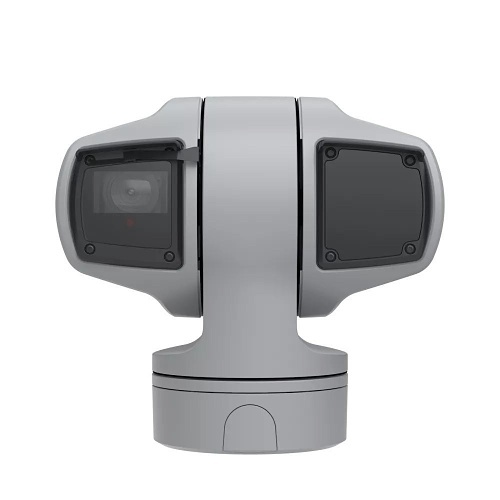

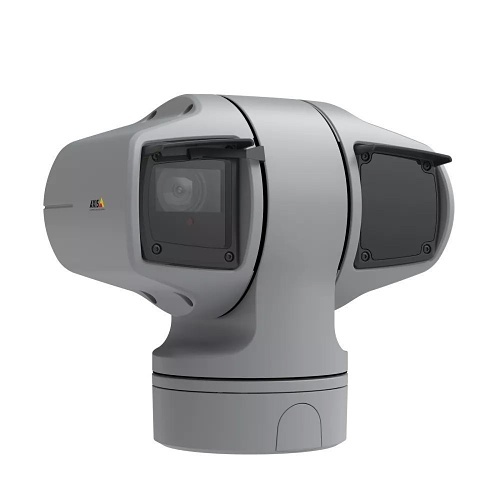

AXIS 02317-301 IP PTZ IR Security Camera
02317-301 | Z4-02317301
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
This heavy-duty PTZ camera meets the MIL-STD-810G standard, ensuring reliable operation in the toughest conditions. It offers HDTV 1080p resolution and a 1/2" sensor with 31x optical zoom. Featuring Lightfinder, Forensic WDR, and OptimizedIR it ensures sharp, clear images in any light conditions. This vandal-resistant, IK10-rated camera is resistant to both impacts and harsh weather conditions including wind speed up to 245 km/h (150 mph). It comes with built-in analytics preinstalled to alert you when needed. Additionally, Zipstream with H.264/ H.265 significantly reduces bandwidth and storage requirements without compromising image quality.
Main Features
- 1/2" sensor and long-range OptimizedIR
- AXIS Object Analytics preinstalled
- Electronic image stabilization
- HDTV 1080p and 31x optical zoom
- MIL-STD-810G and NEMA TS 2 compliant
General Information
Name: AXIS 02317-301 IP PTZ IR Security Camera
Category: Axis Communications, Video Surveillance, IP Cameras, PTZ Security Cameras
UPC Code: 7331021084629
Country of Origin: Poland. Country of origin is subject to change.
Specifications
ADI Part Number Z4-02317301 Brand Name Axis Communications Manufacturer Part Number 02317-301 Product Name AXIS Q6225-LE 60 Hz NM Product Type PTZ cameras Supported Network Protocols IPv6 USGv6
Aperture f/1.36-4.6 Field of View Horizontal, Vertical Lens Type Varifocal Maximum Aperture f/1.36 Maximum Frame Rate 60fps Minimum Focal Length 6.91 mm Night Vision Yes Optical Zoom 31x
Wide Dynamic Range Yes
Ingress Protection Rating IP66, IP68
Image Sensor Size 1/2" Maximum Video Resolution 1920 x 1080
Maximum Operating Temperature 131°F Minimum Operating Temperature -58°F Operating Humidity 10-100% Operating Temperature (T-T) -58-131°F
Longest Shutter Speed 1/2 Second Minimum Illumination 0.001 lux Shortest Shutter Speed 1/111000 Second
Network (RJ-45) Yes
Focal Length 6.91-214.69mm Lens Included Yes Maximum Focal Length 214.64 mm Minimum Aperture f/4.6
Memory Card Supported Yes
Durability Vandal Resistant
Maximum Power Consumption 71W Power over Ethernet (PoE) Yes
Limited Warranty 5 Year
Certifications CISPR 32 Class A, CISPR 35, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES(A)/NMB(A), IEC 62236-4, KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A Certifications & Standards ONVIF G, ONVIF M, ONVIF S, ONVIF T Environmental Certification IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP68, IEC/EN 62262 IK10, ISO 12944-6 C5, ISO 21207 (Method B), MIL-STD-810G (Method 500.5), MIL-STD-810G (Method 501.5), MIL-STD-810G (Method 502.5), MIL-STD-810G (Method 503.5), MIL-STD-810G (Method 505.5), MIL-STD-810G (Method 506.5), MIL-STD-810G (Method 507.5), MIL-STD-810G (Method 509.5), MIL-STD-810G (Method 510.5), MIL-STD-810G (Method 521.3), MIL-STD-810H (Method 500.6), MIL-STD-810H (Method 501.7), MIL-STD-810H (Method 502.7), MIL-STD-810H (Method 506.6), MIL-STD-810H (Method 509.7), MIL-STD-810H (Method 521.4), NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9) Impact Protection Rating IK10 Indoor/Outdoor Outdoor
