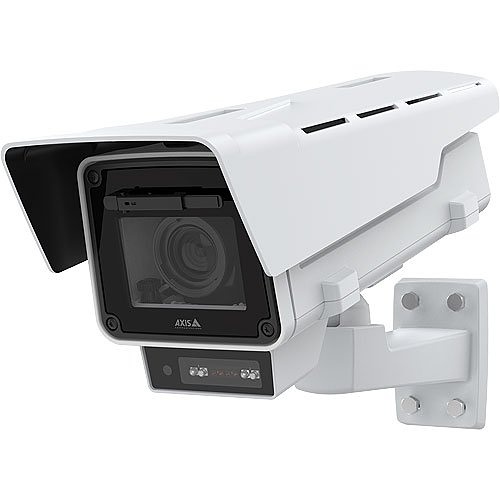

AXIS Q1656-LE Q16 Series 4MP Outdoor Fixed WDR IP Box Camera with Built-in Wiper, 3.9-10mm Varifocal Lens, White
Q1656-LE|Z4-02168001
AXIS Q1656-LE Q16 Series 4MP Outdoor Fixed WDR IP Box Camera with Built-in Wiper, 3.9-10mm Varifocal Lens, White
Q1656-LE|Z4-02168001
Axis Communications
AXIS Q1656-LE Q16 Series 4MP Outdoor Fixed WDR IP Box Camera with Built-in Wiper, 3.9-10mm Varifocal Lens, White
Q1656-LE | Z4-02168001
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
With 4 MP resolution at up to 60 fps, a 1/1.8” sensor, and Lightfinder 2.0, AXIS Q1656-LE delivers exceptional video quality even in poor light conditions. Plus, a built-in wiper ensures great images in all weather conditions. Based on the latest Axis system-on-chip (SoC), it offers support for advanced features and powerful applications based on deep learning on the edge. And, AXIS Object Analytics offers highly nuanced object classification. This outdoor-ready camera includes premium Q-line functionality and support for PoE and redundant DC power. Furthermore, enhanced security functionality prevents unauthorized access and safeguards your system.
Main Features
- Built-in wiper for snow and rain
- Enhanced security features
- Exceptional images with 1/1.8” sensor
- Premium Axis Q-line camera functionality
- Support for analytics with deep learning
General Information
Name: AXIS Q1656-LE Q16 Series 4MP Outdoor Fixed WDR IP Box Camera with Built-in Wiper, 3.9-10mm Varifocal Lens, White
Category: Axis Communications, Video Surveillance, IP Cameras, Box Cameras
UPC Code: 7331021073982
Country of Origin: Poland. Country of origin is subject to change.
Specifications
ADI Part Number Z4-02168001 Brand Name AXIS Communications Manufacturer Axis Communications Manufacturer Part Number 02168-001 Product Line Q Product Model Q1656-LE Product Name AXIS Q1656-LE Product Series Q16 Product Type Fixed cameras Supported Network Protocols IPv6 USGv6|NIST SP500-267
Aperture f/1.5 Connectivity Technology Wired Effective Camera Resolution 4MP Field of View Horizontal, Vertical Lens Mount Type i-CS Lens Type Varifocal Maximum Frame Rate 60fps Night Vision Yes
Image Sensor Type CMOS Wide Dynamic Range Yes
Ingress Protection Rating IP66, IP67 TAA Compliant Yes
Image Sensor Size 1/1.8" Maximum Video Resolution 2688 x 1512
Operating Temperature (T-T) -40-104°F
Minimum Illumination 0.01 lux
Network (RJ-45) Yes
Focal Length 3.9-10mm Maximum Focal Length 10 mm
Memory Card Supported Yes
Remote Management Yes
ADI Part Number Replaces Z4-01052001, Z4-01223001, Z4-02064001 Model Number Replaces 01052-001, 01223-001, 02064-001, Q1645-LE
Color White Durability Dustproof, Waterproof
Maximum Power Consumption 26W Power over Ethernet (PoE) Yes
Mount Type Box Mount, Wall Mount
Recording Formats Full HD
Certifications CISPR 32 Class A, CISPR 35, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, IEC 62236-4, KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A Certifications & Standards ONVIF G, ONVIF M, ONVIF S, ONVIF T Country of Origin PL Environmental Certification IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK10, ISO 21207 (Method B), NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9) Features Built-in IR LED, Day/Night, Video Content Analytics, Wiper Impact Protection Rating IK08, IK10 Indoor/Outdoor Outdoor
