Axis Communications

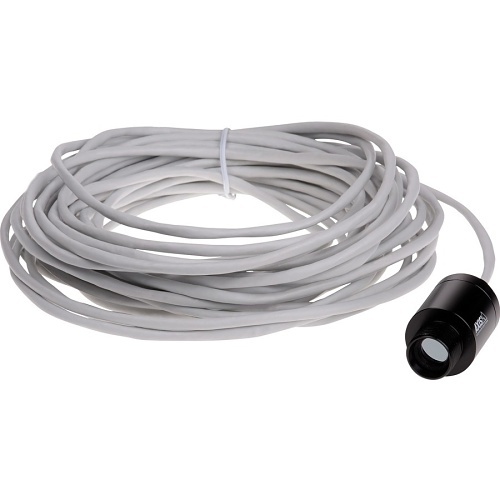

AXIS FA1080-E Thermal Sensor Unit, Outdoor-Ready
FA1080-E | Z4-02089001
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
AXIS FA1080-E is a flexible and highly discreet outdoor-ready thermal sensor unit that allows for versatile installation: behind surfaces for discreet surveillance, on walls, or recessed. It can be used as a surveillance sensor that doesn’t compromise personal integrity. It features a choice of lenses; a 2.2 mm lens for wide-angle views and a 4 mm lens for narrower-angle views with longer detection distances. For use with AXIS FA54 Main Unit, it supports AXIS Camera Application Platform, enabling the use of analytics. Furthermore, it provides a reliable solution for detection, with a low rate of false alarms.
Main Features
- For use with AXIS FA54 Main Unit
- Outdoor-ready, discreet sensor unit
- Possibilities for multi-channel setup
- Reliable thermal detection 24/7
- Two variants with a choice of lenses
- Wired connectivity technology offers maximum visual convenience
General Information
Name: AXIS FA1080-E Thermal Sensor Unit, Outdoor-Ready
Category: Axis Communications, Video Surveillance, IP Cameras, Thermal Imaging Cameras
UPC Code: 7331021072435
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number Z4-02089001 Brand Name Axis Communications Manufacturer Axis Communications Manufacturer Part Number 02089-001 Product Model FA1080-E Product Name AXIS FA1080-E 2.2MM 8.3 FPS Product Series FA10 Product Type Thermal sensor units
Aperture f/1.05 Connectivity Technology Wired Field of View Horizontal, Vertical Lens Type Fixed Maximum Aperture f/1.05 Maximum Frame Rate 8.3 fps
Ingress Protection Rating IP66, IP67 TAA Compliant Yes
Image Sensor Size 208 x 156 Maximum Video Resolution 208 x 156
Maximum Operating Temperature 140°F (60°C) Minimum Operating Temperature -22°F (-30°C) Operating Humidity 100% Operating Temperature (T-T) -30-55°C
Focal Length 2.2mm Lens Included Yes Maximum Thermal Focal Length 86.6 mil
Color White Durability Dustproof, Waterproof Weight 13.05 oz
Diameter 1.2" Mount Type Bracket Mount, Ceiling Mount, Recessed Mount, Surface Mount, Wall Mount
Limited Warranty 5-Year
Certifications EN 55024, EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), RCM AS/NZS CISPR 32 Class A, VCCI Class A Environmental Certification IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-30, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67, NEMA 250 Type 4X Features Human Detection, Vehicle Detection Indoor/Outdoor Outdoor Package Contents - FA1080-E Thermal Sensor Unit
- F8201 Vari-angle Mounting Bracket
