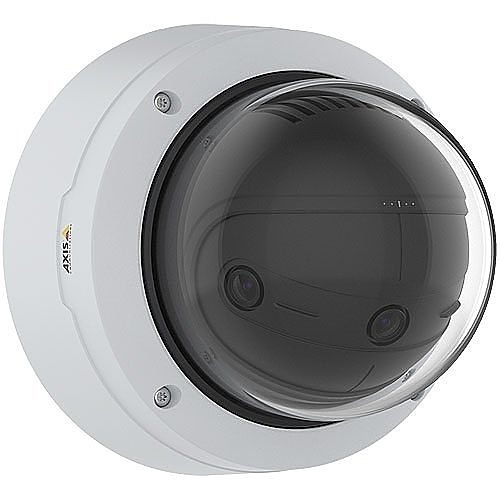

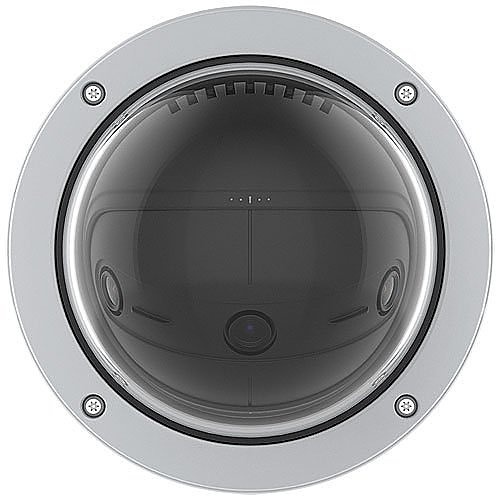

AXIS P3818-PVE P38 Series 13MP Outdoor Vandal Resistant 180° Panoramic Fixed Dome IP Camera, 3.2mm Fixed Lens, White
P3818-PVE|Z4-02060001
AXIS P3818-PVE P38 Series 13MP Outdoor Vandal Resistant 180° Panoramic Fixed Dome IP Camera, 3.2mm Fixed Lens, White
P3818-PVE|Z4-02060001
Axis Communications
AXIS P3818-PVE P38 Series 13MP Outdoor Vandal Resistant 180° Panoramic Fixed Dome IP Camera, 3.2mm Fixed Lens, White
P3818-PVE | Z4-02060001
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
AXIS P3818-PVE delivers a 180º panoramic overview of extensive areas with ultra-high resolution images and incredible details up to 30 fps. With 13 MP resolution and seamless stitching of all three images, it offers 180° horizontal and 90° vertical coverage with no blind spots. Including a variety of mounting options, it’s also possible to mount two cameras back-to-back for a complete 360° overview, using AXIS T94V01C Dual Camera Mount. Featuring edge-to-edge technology, it’s easy to add support for audio enabling you to listen in to transactions or incidents. Additionally, built-in cybersecurity features prevent unauthorized access and safeguard your system.
Main Features
- 13 MP multisensor camera with one IP address
- 180° horizontal, 90° vertical coverage
- Built-in cybersecurity features
- Seamlessly stitched images
- Support for audio input
- 4K recording format for stunning, vivid video results with maximum efficiency
- Fixed lens type is set all the way open to its lowest F stop, and is common on small form factor cameras
- Junction Box Mount mount type allows convenient, easy usage with maximum efficiency
- Wide Dynamic Range feature for maximum efficiency and convenience
- Wired connectivity technology helps you always stay connected to your network camera for maximum productivity
General Information
Name: AXIS P3818-PVE P38 Series 13MP Outdoor Vandal Resistant 180° Panoramic Fixed Dome IP Camera, 3.2mm Fixed Lens, White
Category: Axis Communications, Video Surveillance, IP Cameras, Panoramic Cameras
UPC Code: 7331021071742
Country of Origin: Mexico. Country of origin is subject to change.
Specifications
ADI Part Number Z4-02060001 Brand Name Axis Communications Manufacturer Axis Communications Manufacturer Part Number 02060-001 Product Line P Product Model P3818-PVE Product Name AXIS P3818-PVE Product Series P38 Product Type Fixed dome cameras Supported Network Protocols IPv6 USGv6
Aperture f/2.0 Connectivity Technology Wired Effective Camera Resolution 13MP Field of View Horizontal, Vertical Lens Type Fixed Maximum Aperture f/2 Maximum Frame Rate 30fps Minimum Focal Length 3.2mm Night Vision Yes
Wide Dynamic Range Yes
Ingress Protection Rating IP66, IP67 TAA Compliant Yes
Image Sensor Size 1/2.8" Maximum Video Resolution 5120 x 2560
Maximum Operating Temperature 122°F (50°C) Minimum Operating Temperature -40°F (-40°C) Operating Humidity 1 Operating Temperature (T-T) -40-50°C
Longest Shutter Speed 1/25 Second Minimum Illumination 0.05 lux Shortest Shutter Speed 1/91000 Second
Network (RJ-45) Yes
Focal Length 3.2mm Lens Included Yes Maximum Focal Length 3.20 mm
Memory Card Supported Yes
Remote Management Yes
Color White Durability Vandal Resistant Form Factor Dome Height 6.7" Weight 4.85lb
Maximum Power Consumption 18W Power over Ethernet (PoE) Yes
Diameter 7.7" Mount Type Ceiling Mount, Junction Box Mount, Pendant Mount, Pole Mount, Recessed Mount, Wall Mount
Recording Formats 4K Storage Type Memory Card
Maximum Resolution 1280 x 720
Limited Warranty 5-Year
Certifications CISPR 24, CISPR 35, EAC, EN 50121-4, EN 55024, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A Certifications & Standards ONVIF G, ONVIF M, ONVIF S, ONVIF T Environmental Certification IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK10, NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9) Features Active Tampering Alarm, Audio Detection, Auto Gain Control, Built-in Microphone, Day/Night, HTTPS Encryption, Motion Detection, Noise Reduction, Password Protection, Privacy Masking, Removable IR Cut-off Filter, SD Card Local Storage, White Balance, Wide Dynamic Range Impact Protection Rating IK10 Indoor/Outdoor Outdoor
