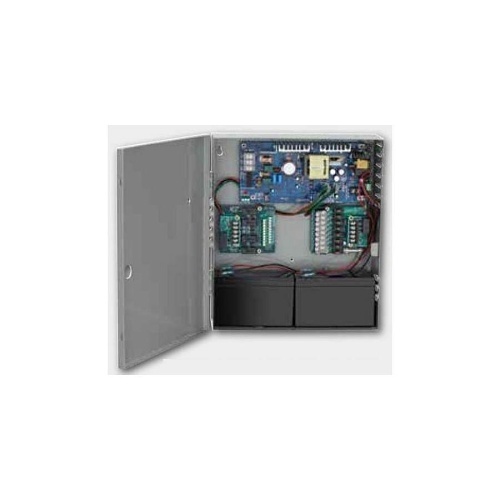

Von Duprin PS904-4RL 4A Power Supply with 4-Relay Board Integrated Logic for Controlling Security Interlocks
PS904-4RL|VN-PS9044RL
Von Duprin PS904-4RL 4A Power Supply with 4-Relay Board Integrated Logic for Controlling Security Interlocks
PS904-4RL|VN-PS9044RL
Von Duprin
Von Duprin PS904-4RL 4A Power Supply with 4-Relay Board Integrated Logic for Controlling Security Interlocks
PS904-4RL | VN-PS9044RL
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The Schlage comprehensive line of power supplies and option boards was designed to address the changing needs of the access control market. Installation is simplified by utilizing a flat mounting design and polarized locking connectors for option boards. This design eliminates the need for racks and side connectors. The flat mounting of the option boards also provides for easier access to the terminal blocks for connection of electrified devices (such as electrified strikes, electromagnetic locks, card readers, etc.).
Main Features
- Provides low-voltage, Class 2, filtered and regulated power
- Universal 120-240V AC, fused primary input
- 4A at 12/24V DC constant output, field selectable with jumper
- Single polarized option board connector
- AC input and DC output monitoring circuit with LED indicators
- Externally visible AC input indicator with isolated SPDT contacts
- High-voltage protective cover for AC circuitry (not shown)
- Battery back-up board auto-selects voltage
- Optional Fire Alarm plug-in board available
- UL 294, ULC-S318, RoHS, and FCC Part 15 certified
General Information
Name: Von Duprin PS904-4RL 4A Power Supply with 4-Relay Board Integrated Logic for Controlling Security Interlocks
Category: Von Duprin, Access Control, Egress Devices & Alarms, Exit Door Bars
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number VN-PS9044RL Brand Name Von Duprin Manufacturer Part Number PS904-4RL
Depth 4" Height 14"
Input Voltage 12V DC, 24V DC
Environmental Certification UL Environmentally Friendly Yes
