Platinum Tools 202049J ezEX38 Shielded RJ45 Internal Ground Connectors
202049J | TS-202049J
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

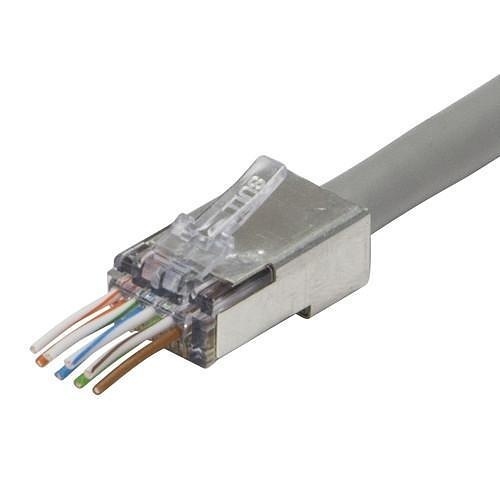

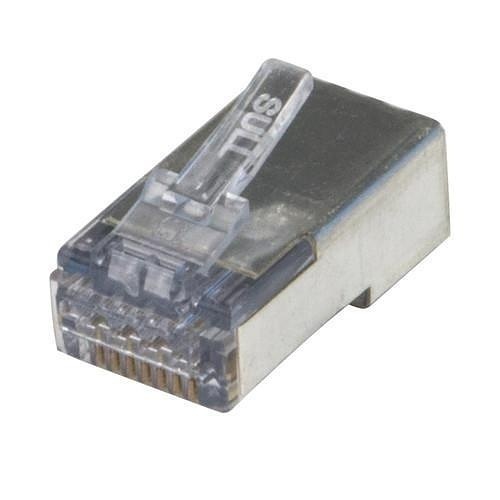

The patented ezEX38 connectors are designed to provide a reliable and efficient solution for terminating Cat5e (Small Cat6) cabling, making them perfect for PoE/PoE+ and data applications. Featuring a unique integrated Hi-Lo stagger load bar, these connectors allow large conductors to pass through the front end, ensuring easy verification of the wiring sequence before termination. The one-piece, pass-through design eliminates the need for bars or liners, simplifying the installation process. These connectors support solid or stranded conductors (24-22 AWG) with an insulation diameter range of 0.033” – 0.038” (0.84 – 0.97mm), and a maximum outer diameter of 0.290” (7.36mm). With 50-micron gold-plated contacts, they are compliant with 5e/6/6A standards and meet TIA, TAA, RoHS, UL, and FCC regulations. A shielded (STP) internal ground style is also available for enhanced protection. Compatible with the EXO Crimp Frame and EXO-EX Die (100061C) for seamless terminations, these connectors are made in the USA, ensuring high-quality performance and durability.
Main Features
- Reliable solution for Cat5e/Small Cat6 termination
- Ideal for PoE/PoE+ and data applications
- Unique Hi-Lo stagger load bar for easy wiring verification
- One-piece pass-through design simplifies installation
- Supports solid or stranded conductors (24-22 AWG)
- 50-micron gold-plated contacts for superior performance
- Compliant with 5e/6/6A standards and regulations
- Shielded internal ground for enhanced protection
- Compatible with EXO Crimp Frame and EXO-EX Die
- Made in the USA for high-quality performance
General Information
Name: Platinum Tools 202049J ezEX38 Shielded RJ45 Internal Ground Connectors
Category: Platinum Tools, Data Comm & Networking, Cable Connectors, Network Cable Connectors
UPC Code: 849160011255
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number TS-202049J Brand Name Platinum Tools Manufacturer Part Number 202049J Packaged Quantity 50
Package Type Jar
Diameter 7.36"
