TRENDnet TPE-TG50ES 5-Port Gigabit EdgeSmart PoE+ Switch
TPE-TG50ES | TQ-TPETG50ES
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

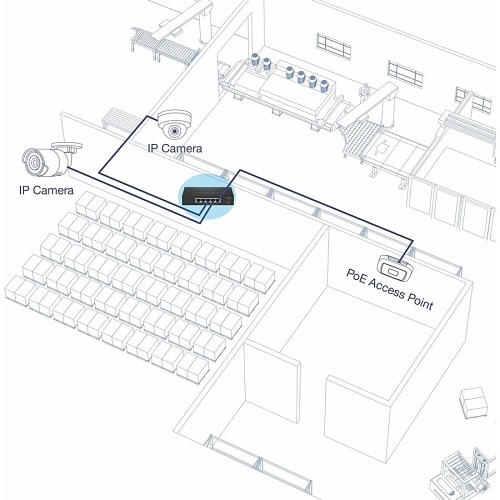

TRENDnet's 5-Port Gigabit EdgeSmart PoE+ Switch, model TPE-TG50ES, is a cost-effective desktop managed switch solution for high-speed gigabit PoE+ applications. This 5-port smart PoE+ switch features the most commonly used managed switch features, reducing unnecessary switch complexity. The web-based management interface offers features for traffic control, static link aggregation, RSTP, VLAN, QoS, and monitoring. TRENDnet's TPE-TG50ES provides four gigabit PoE+ ports for connecting devices such as wireless access points, IP cameras, and VoIP handsets.
Main Features
- NDAA / TAA COMPLIANT( U.S. and Canada only)

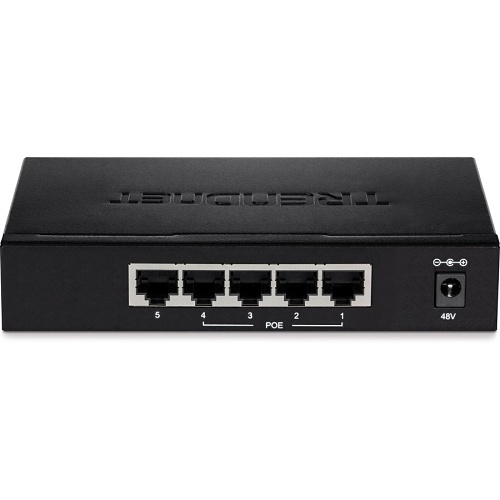

- ETHERNET PORT CONFIGURATION: 4 x Gigabit PoE+ ports, 1x Gigabit port.
- EDGESMART NETWORK MANAGEMENT: Provides an easy-to-use web-based management interface for reduced switch configuration complexity and offers a combination of more commonly used SMB management features for easy deployment.The web-based management interface offers features for loopback detection, RSTP, static link aggregation, VLAN, IGMP Snooping, and QoS
- INTEGRATION FLEXIBILITY: Managed features include loopback detection, RSTP, static link aggregation, VLAN, IGMP Snooping, and QoS for flexible network integration.
- PoE+ POWER: A 31W PoE power budget supplies up to four Power over Ethernet devices from the 5-port smart PoE+ switch.
- MONITORING SOLUTIONS: SNMP, SNMP Trap, and Port Mirroring support administrator monitoring solutions
- COMPACT FANLESS DESIGN: With a fanless compact and lightweight metal housing design, this switch is well-suited for desktop and wall mount installations
General Information
Name: TRENDnet TPE-TG50ES 5-Port Gigabit EdgeSmart PoE+ Switch
Category: TRENDnet, Data Comm & Networking, Hubs, Routers & Switches, Network Switches
UPC Code: 710931161267
Country of Origin: Taiwan, Province of China. Country of origin is subject to change.
Specifications
ADI Part Number TQ-TPETG50ES Brand Name TRENDnet Manufacturer TRENDnet Manufacturer Part Number TPE-TG50ES Product Line EdgeSmart Product Model TPE-TG50ES Product Name 5-Port Gigabit EdgeSmart PoE+ Switch (31W) Product Series TPE Product Type Ethernet Switch
Material Metal Media Type Supported Twisted Pair Network Switch Type Managed Power Consumption 34W
NDAA Compliant Yes TAA Compliant Yes
Shared SFP Slot No
Modular No Total Number of Network Ports 5 Uplink Port No
Manageable Yes
Network Technology 1000Base-T
Ethernet Technology Gigabit Ethernet Layer Supported 2 Networking Standards IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Depth 12" Height 4" Width 13"
Frequency 50 Hz, 60 Hz Input Voltage 110-240V AC PoE (RJ-45) Port No PoE Budget 31W Power Source PoE+

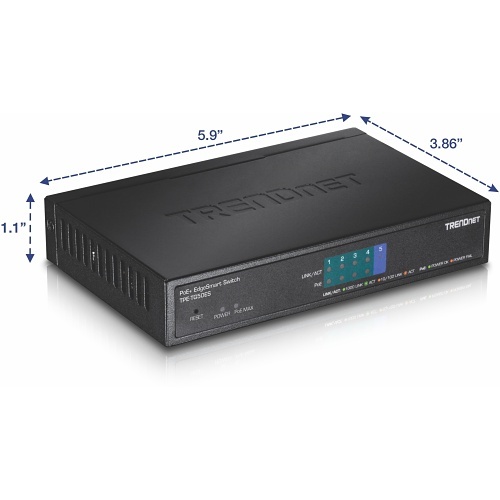

Length 5.9"
Limited Warranty Lifetime
Environmentally Friendly Yes Package Contents Power brick (48V DC, 0.8A), Power Cord, Quick Installation Guide, TPE-TG50ES
