TRENDnet TI-B541 5-Port Industrial Gigabit PoE++ Powered DIN-Rail Switch with PoE Pass-Through
TI-B541|TQ-TIB541
TRENDnet TI-B541 5-Port Industrial Gigabit PoE++ Powered DIN-Rail Switch with PoE Pass-Through
TI-B541|TQ-TIB541
TRENDnet
TRENDnet TI-B541 5-Port Industrial Gigabit PoE++ Powered DIN-Rail Switch with PoE Pass-Through
TI-B541 | TQ-TIB541
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
TRENDnet’s 5-Port Industrial Gigabit PoE++ Powered DIN-Rail Switch with PoE Pass-Through, model TI-B541, is powered by a PoE++ switch or injector, no AC adapter is required. The PoE-powered industrial switch features four gigabit PoE+ ports to power devices such as IP cameras, VoIP handsets, and wireless access points. The switch’s PoE++ powered feature allows it to be installed in a place where there is no power source nearby.
Main Features

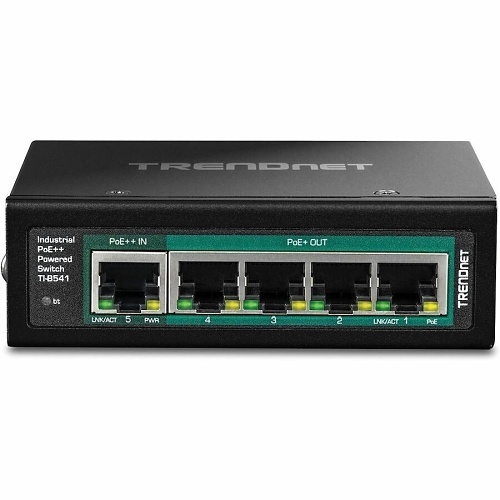

- 1 x Gigabit PoE++ input port
- 4 x Gigabit PoE+ output ports
- 65W PoE power budget with PoE++ Type 4 (90W) input power
- 10Gbps switching capacity
- Hardened IP30 rated metal switch

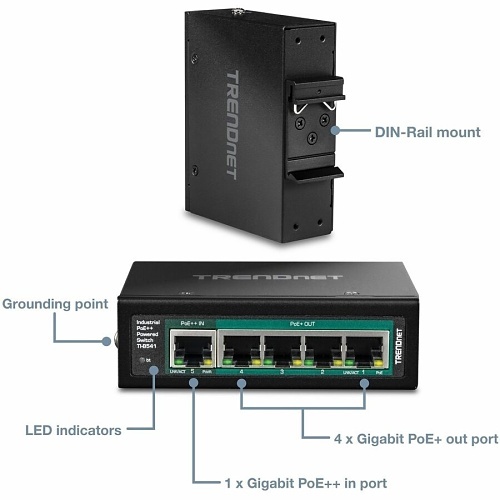

- Includes DIN-Rail and wall mounts
- Extreme operating temperature range of -40° - 75° C (-40° - 167° F)
- NDAA / TAA compliant
- Lifetime Warranty
General Information
Name: TRENDnet TI-B541 5-Port Industrial Gigabit PoE++ Powered DIN-Rail Switch with PoE Pass-Through
Category: TRENDnet, Data Comm & Networking, Hubs, Routers & Switches, Network Switches
UPC Code: 710931162592
Country of Origin: Taiwan, Province of China. Country of origin is subject to change.
Specifications
ADI Part Number TQ-TIB541 Brand Name TRENDnet Manufacturer TRENDnet Manufacturer Part Number TIB541 Product Model TI-B541 Product Name TI-B541 Ethernet Switch Product Type Ethernet Switch
Material Metal Media Type Supported Twisted Pair Power Consumption 3.90W
NDAA Compliant Yes TAA Compliant Yes
Network (RJ-45) Yes Total Number of Network Ports 5
Network Technology 1000Base-T
Ethernet Technology 10 Gigabit Ethernet Layer Supported 2 Networking Standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Depth 3.1" Height 1.2" Weight 5.64 oz Width 4"
PoE (RJ-45) Port Yes PoE Budget 65W Power Source PoE++
Mount Type Din Rail Mount, Wall Mount
Limited Warranty Lifetime
Package Contents - TI-B541 Ethernet Switch
- Quick Installation Guide
- DIN-Rail and Wall Mount Hardware
