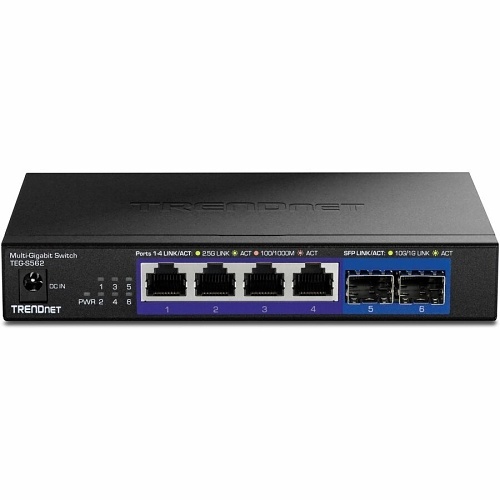

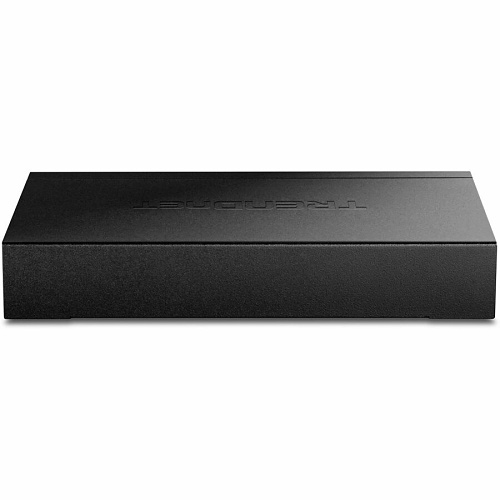

TRENDnet TEG-S562 6-Port Unmanaged Multi-Gig Network Switch
TEG-S562 | TQ-TEGS562
Please sign in to view pricing and availability and to add to cart.
Product Overview
Expand your network's bandwidth and reduce traffic bottlenecks with TRENDnet's Unmanaged Multi-Gigabit Switches. This 2.5G switch with SFP+ support comes equipped with 2.5GBASE-T RJ-45 ports that provide higher gigabit speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling. The 2.5G switch with 10G fiber also offers two dedicated 10G SFP+ ports for high-speed network connections, providing a cost-effective solution in adding 10G link capability to an SMB network. The fanless design lowers energy consumption and eliminates distracting operating noise. TRENDnet's reliable multi-gigabit switches are costeffective solutions to increase your network's throughput.
10G SFP+ Ports
Offers two 10G SFP+ ports for highspeed network connections providing a cost-effective solution in adding 10G link capability.
2.5G Ports
Equipped with four 2.5GBASE-T RJ-45 ports that provide multi-gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling.
Fanless
The compact fanless design lowers power consumption and energy costs, and eliminates distracting operating noise.
FEATURES | Easy Installation
No configuration needed, simply connect network devices to the 2.5G switch
2.5G Ports
Equipped with 2.5GBASE-T RJ-45 ports that provide higher gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling
10G SFP+ Ports
The 2.5G switch with SFP+ ports features 10G SFP+ ports for highspeed network connections providing a cost-effective solution in adding 10G link capability
Fanless
Compact fanless design lowers energy consumption and eliminates operating noise
Housing Design
Sturdy metal housing

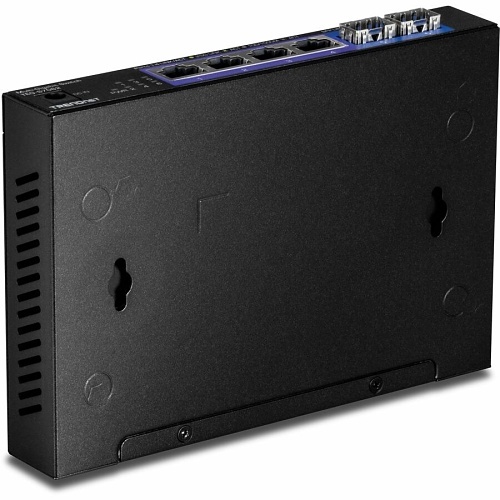

Wall Mountable
Features a convenient wall-mountable design for greater installation flexibility
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 12KB) for increased performance
LED Indicators
LED indicators on this 2.5G switch with SFP+ ports conveys port status
Main Features
- 4 x 2.5GBASE-T ports
- 2 x 10G SFP+ ports
- IEEE 802.3bz (2.5G) compliant
- IEEE 802.3ae (SFP+) compliant
- Backwards compatible with 100/1000BASE-T devices
- 60Gbps switching capacity
- Compact fanless design eliminates noise
- Wall mountable for installation flexibility
- Lifetime Warranty
- NDAA / TAA compliant (U.S. and Canada only)
General Information
Specifications
ADI Part Number TQ-TEGS562 Brand Name TRENDnet Manufacturer TRENDnet Manufacturer Part Number TEGS562 Product Model TEG-S562 Product Name 6-Port Unmanaged Multi-Gig Switch Product Type Ethernet Switch
Material Metal Media Type Supported Optical Fiber, Twisted Pair Network Switch Type Unmanaged Power Consumption 5.86W
TAA Compliant Yes
Expansion Slot Type SFP+ Number of SFP+ Slots 2 Number of Total Expansion Slots 2
Modular Yes Network (RJ-45) Yes Total Number of Network Ports 4
Manageable No
Network Technology 10GBase-X, 2.5GBase-T
Ethernet Technology 10 Gigabit Ethernet Layer Supported 2 Networking Standards IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3bz
Depth 4.3" Height 1" Weight 1lb Width 6.2"
Frequency 63 Hz|47 Hz Input Voltage 120V AC, 230V AC Power Source Power Adapter
Mount Type Wall Mount
Limited Warranty Lifetime
Features Fanless Package Contents - 6-Port Unmanaged Multi-Gig Switch
- Quick Installation Guide
- Power Adapter (12V, 1A)
