Product Overview
The 24-Port Gigabit Switch, model TEG-S25, provides high bandwidth performance, ease of use, and reliability. Boost office network efficiency and eliminate network congestion with gigabit speeds and a total switching capacity of 48Gbps with full-duplex mode. A built-in universal power supply reduces cable clutter and diagnostic LEDs help with network troubleshooting. Plug and play this sturdy metal switch for reliable high-speed network connectivity.
- DEVICE INTERFACE: 24 x Gigabit RJ-45 ports; LED indicators
- SWITCHING CAPACITY: This 24-port gigabit switch has a 48Gbps switching capacity with a forwarding rate of 35.71Mpps (64-byte packet size)
- DATA TRANSFER RATE: Ethernet: 10 Mbps (half duplex); 20 Mbps (full duplex); Fast Ethernet: 100 Mbps (half duplex); 200 Mbps (full duplex);Gigabit: 2000 Mbps (full duplex)
- KMOUNT DESIGN: Sturdy metal housing with rackmount brackets included for greater installation flexibility and well suited for 19" 1U rack installations

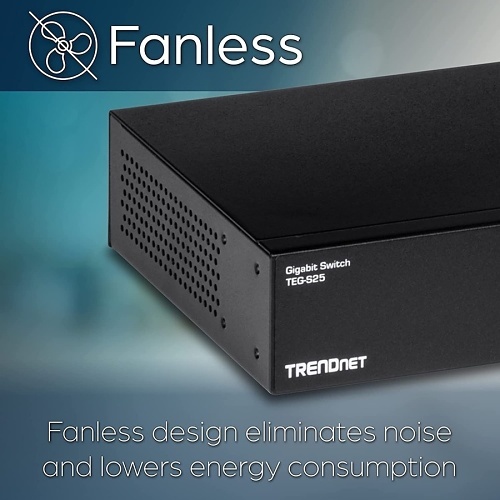

- FANLESS DESIGN: The network switch fanless design lowers energy consumption and eliminates operating noise.
- NDAA / TAA compliant (U.S. and Canada only)
Main Features
- 24 x Gigabit RJ-45 ports
- Sturdy metal switch
- Built-in power supply
- 48Gbps forwarding capacity
- Fanless design
- 1U 19" rackmount brackets included
- Lifetime Warranty
- NDAA / TAA compliant (U.S. and Canada only)
General Information
Name: TRENDnet TEG-S25 24-Port Gigabit Rack Mountable Switch, RJ-45
Category: TRENDnet, Video Surveillance, Data Comm & Networking, Networking Devices, Hubs, Routers & Switches, Network Switches, Network Switches
UPC Code: 710931140873
Country of Origin: Taiwan, Province of China. Country of origin is subject to change.
Specifications
ADI Part Number TQ-TEGS25 Brand Name TRENDnet Manufacturer TRENDnet Manufacturer Part Number TEG-S25 Product Model TEG-S25 Product Name 24-Port Gigabit Switch Product Type Ethernet Switch Weight 3.81lb
Material Metal Media Type Supported Twisted Pair Network Switch Type Unmanaged Power Consumption 14.24W
NDAA Compliant Yes TAA Compliant Yes
Network (RJ-45) Yes Total Number of Network Ports 24
Network Technology 1000Base-X
Ethernet Technology Gigabit Ethernet Layer Supported 2 Networking Standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Compatible Rack Unit 1U Height 4.3" Width 1"
Frequency 50 Hz|60 Hz Power Source Power Supply
Length 6.3" Mount Type Rack Mount
Limited Warranty Lifetime
Country of Origin TW
