Eaton Tripp Lite SV60KM3P4B 60kVA/54kW 3-Phase UPS System, Medium Frame, 4 Battery Modules, 208/120V, Black
SV60KM3P4B|TC-SV60KM3P4
Eaton Tripp Lite SV60KM3P4B 60kVA/54kW 3-Phase UPS System, Medium Frame, 4 Battery Modules, 208/120V, Black
SV60KM3P4B|TC-SV60KM3P4
Eaton Tripp Lite
Eaton Tripp Lite SV60KM3P4B 60kVA/54kW 3-Phase UPS System, Medium Frame, 4 Battery Modules, 208/120V, Black
SV60KM3P4B | TC-SV60KM3P4
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

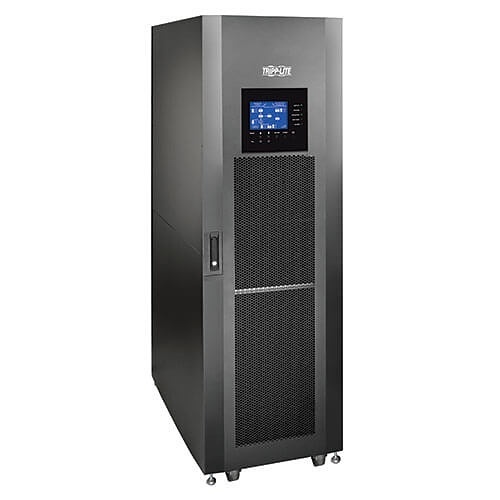

The SV60KM3P4B SmartOnline SV Series 60kVA 3-Phase On-Line Double-Conversion UPS System delivers true scalability and offers the highest level of secure, uninterrupted power protection. Featuring a modular, scalable design with high-efficiency voltage and frequency independent (VFI) operation, this on-line UPS system is ideal for protecting a variety of critical IT systems. The SV60KM3P4B includes pre-installed input, bypass and output breakers, as well as a static transfer switch (STS), three 20kVA SV20PM power modules and four SVBM battery modules. Space is included for one additional user-installable SV20PM power module. The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. With up to 92% efficiency in standard mode and up to 99% efficiency in optional economy mode, this 60kVA UPS system helps you reduce operating and cooling costs. Automatic and manual bypass options keep connected equipment operational during routine maintenance or critical power module failure. Front-panel display offers full UPS condition and status reporting.
Main Features
- 60kVA 54kW 3-Phase Medium-Chassis UPS System
- Supports 208/120V or 220/127V AC 50/60Hz
- Dual hardwire Input for 2 Power sources
- Network-grade sine-wave AC output
- 1% Output voltage regulation
- Less than 1% Output total harmonic distortion
- Tested to UL 1778, CSA, and NOM standards
- High 0.9 Power factor for maximum load
- Pre-Installed WEBCARDLX for remote access
- Supports 10/100 Mbps Ethernet communication
General Information
Name: Eaton Tripp Lite SV60KM3P4B 60kVA/54kW 3-Phase UPS System, Medium Frame, 4 Battery Modules, 208/120V, Black
Category: Eaton Tripp Lite, Batteries & Power Supplies, Power Management, UPS
UPC Code:
Country of Origin: China. Country of origin is subject to change.
Specifications
ADI Part Number TC-SV60KM3P4 Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number SV60KM3P4B Product Line SmartOnline Product Model SV60KM3P4B Product Name SmartOnline SV60KM3P4B 60kVA Tower UPS Product Series SmartOnline SV Product Type Dual Conversion Online UPS
Backup/Run Time (Full Load) 5.7-Minute Backup/Run Time (Half Load) 13-Minute Output Voltage 120V AC, 230V AC Phase Three Phase Receptacle Type Hardwired
Network Management SNMP Manageable, SSH, Telnet
Depth 43.3" Form Factor Tower Height 79.1" Weight 1751lb Width 23.6"
Input Voltage 120V AC, 230V AC Plug/Connector Type Hardwired Waveform Type Pure Sine Wave
Limited Warranty 1-Year
Environmental Certification RoHS Environmentally Friendly Yes
