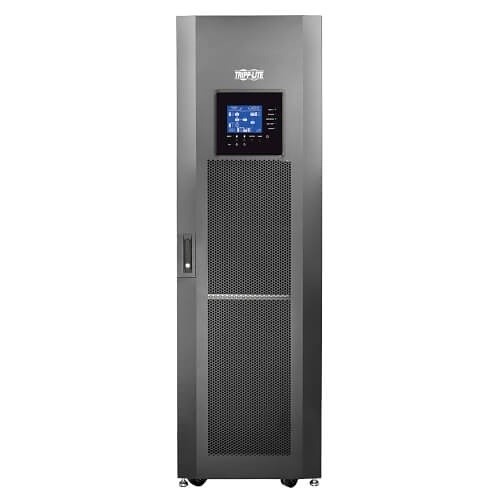

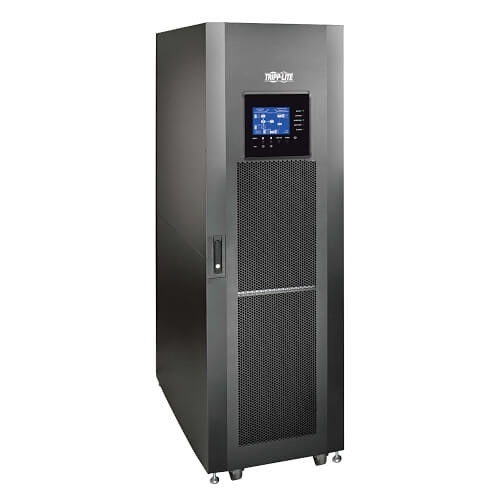

Eaton Tripp Lite SV60KM3P0B 60kVA/54kW 3-Phase UPS System, Medium Frame, No Battery Modules, 208/120V, Black
SV60KM3P0B|TC-SV60KM3P0
Eaton Tripp Lite SV60KM3P0B 60kVA/54kW 3-Phase UPS System, Medium Frame, No Battery Modules, 208/120V, Black
SV60KM3P0B|TC-SV60KM3P0
Eaton Tripp Lite
Eaton Tripp Lite SV60KM3P0B 60kVA/54kW 3-Phase UPS System, Medium Frame, No Battery Modules, 208/120V, Black
SV60KM3P0B | TC-SV60KM3P0
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

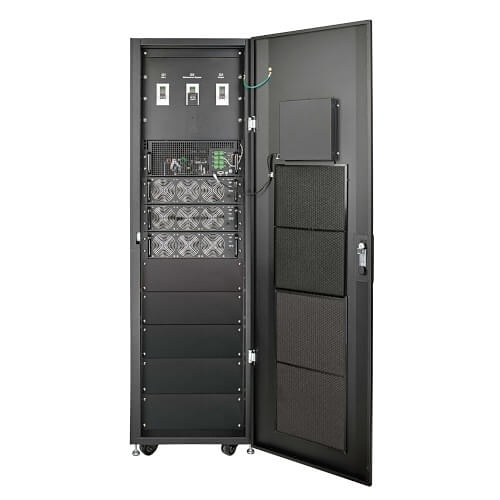

The SV60KM3P0B SmartOnline SV Series 60kVA 3-Phase On-Line Double-Conversion UPS System delivers true scalability and offers the highest level of secure, uninterrupted power protection. Featuring a modular, scalable design with high-efficiency voltage and frequency independent (VFI) operation, this online UPS system is ideal for protecting a variety of critical IT systems. The SV60KM3P0B includes pre-installed input, bypass and output breakers, as well as a static transfer switch (STS) and three 20kVA SV20PM power modules. Space is included for one additional user-installable SV20PM power module. External ±120VDC battery options, such as BP240V370 or EBP240VXXX series battery cabinets, are available for extended runtime. The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. With up to 92% efficiency in standard mode and up to 99% efficiency in optional economy mode, this 60kVA UPS system helps you reduce operating and cooling costs. Automatic and manual bypass options keep connected equipment operational during routine maintenance or critical power module failure. Front panel display offers full UPS condition and status reporting.
Main Features
- 60kVA 54kW 3-Phase Medium-Chassis UPS System
- Supports 208/120V or 220/127V AC 50/60Hz
- Dual hardwire Input for 2 Power sources
- 1% Output voltage regulation, less than 1% THD
- Tested to UL 1778, CSA, NOM standards
- High 0.9 Power factor for max load Power
- Pre-installed WEBCARDLX for remote access
- Modular design with hot-swappable modules
- Optional economy mode, up to 99% efficient
- Advanced IGBT Inverter with DSP Technology
General Information
Name: Eaton Tripp Lite SV60KM3P0B 60kVA/54kW 3-Phase UPS System, Medium Frame, No Battery Modules, 208/120V, Black
Category: Eaton Tripp Lite, Batteries & Power Supplies, Power Management, UPS
UPC Code:
Country of Origin: China. Country of origin is subject to change.
Specifications
ADI Part Number TC-SV60KM3P0 Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number SV60KM3P0B Product Line SmartOnline Product Model SV60KM3P0B Product Name SmartOnline SV60KM3P0B 60kVA Tower UPS Product Series SmartOnline SV Product Type Dual Conversion Online UPS
Application/Usage Critical IT System AVR Yes EMI/RFI Noise Filter Yes Energy Saving Yes Output Voltage 120V AC, 127V AC, 208V AC, 220V AC Phase Three Phase Receptacle Type Hardwire (3P + N + E)
Battery Recharge Time 4.5-Hour DC System Voltage 120

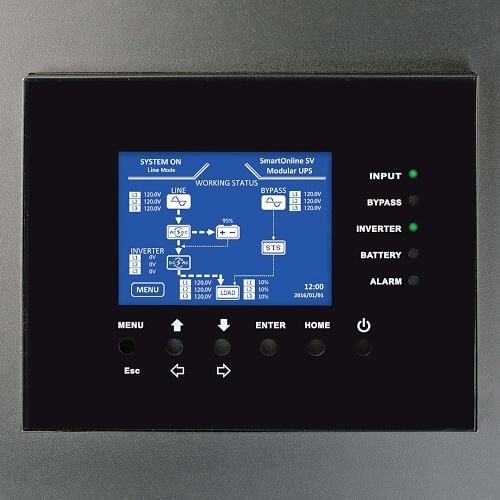

Status Indicators Yes
Maximum Operating Elevation 3280.84' Maximum Operating Temperature 104°F (40°C) Sound Emission 73 dB(A) Thermal Dissipation 5340.63W
EPO Port Yes Serial Port Yes
Alarm Battery Mode, Low Battery, Power Off, Power On, UPS Alarm, UPS Fault Network Management HTTP Remote Monitoring, SNMP
Depth 43.3" Form Factor Tower Height 79.1" Weight 831lb Width 23.6"
Input Frequency 70Hz Input Voltage 120V AC, 127V AC, 208V AC, 220V AC Output Frequency 60Hz Plug/Connector Type Hardwired Surge Energy Rating 2496 J Waveform Type Pure Sine Wave
Limited Warranty 1-Year
Environmental Certification RoHS Environmentally Friendly Yes Package Contents - SV60KM3P0B SmartOnline SV Series 60kVA 3-Phase On-Line Double-Conversion UPS SystemPre-installed WEBCARDLX network interface(3) SV20PM 20kVA power modules (shipped separately)Owner’s manual
