Product Overview

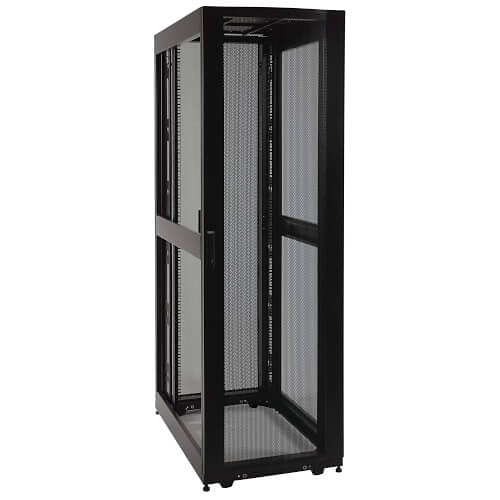

42U rack cabinet houses, organizes and secures standard-width rack equipment in high-density server and IT networking areas.
Features
Standard-Depth 42U Server Cabinet Accommodates 19 in. Rack Equipment
This SmartRack® 42U rack enclosure is designed for network wiring closets, retail locations, classrooms, back offices and other areas with essential rack-mount IT equipment. Constructed from heavy-duty steel with a durable black powder-coated finish, the SRX42UBEXP has a maximum stationary load capacity of 1360 kilograms and a maximum rolling load capacity of 1020 kilograms.
Keeps Important Equipment Secure

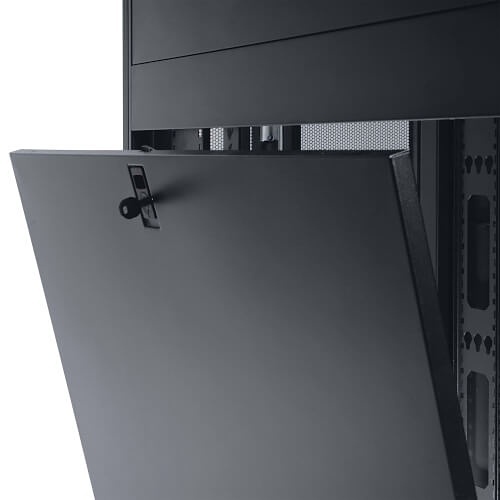

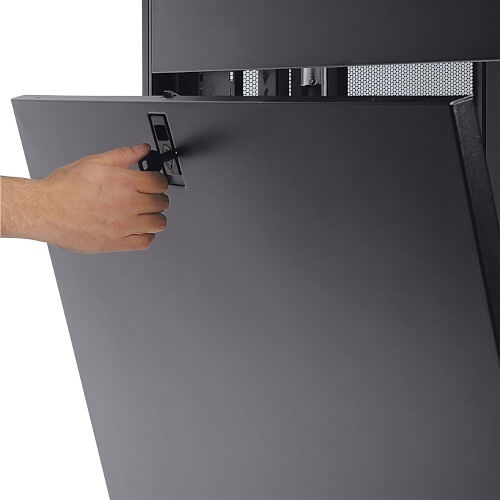

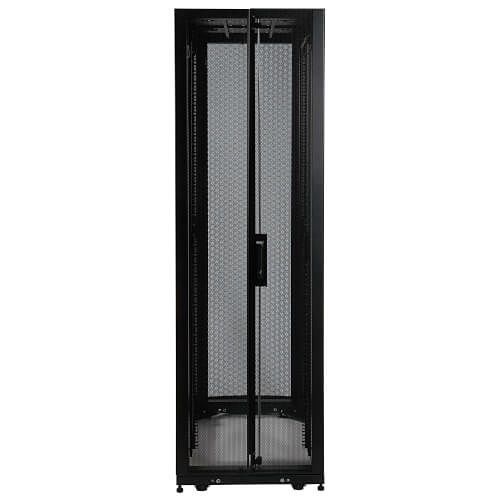

The reversible front door and split rear doors lock securely to help prevent damage, tampering or theft. The doors and top panel are designed for quick release, making it easy to access connected equipment and cabling with little effort. Convenient top access ports and an open bottom allow easy cable routing through the cabinet. The vented doors allow generous airflow from front to rear to keep your equipment cool and functioning at their peak.
Easy Enclosure and Equipment Installation
This 42U server rack comes fully assembled for quick and easy deployment with pre-installed casters that let you maneuver it over a level, smooth, stable surface and through a standard two-meter doorway into position, where it can be stabilized by adjusting the levelers. Four mounting rails adjust in 6.35-millimeter increments to accommodate equipment up to 850 millimeters deep. Toolless 0U mounting rails allow quick installation of up to four compatible PDUs and vertical cable managers.
Designed for Baying Multiple Enclosures in a Row
This expansion model comes without side panels for baying with other rack cabinets in a row. Integrated baying tabs make it easy to combine multiple units. This rack is also compatible with hot aisle/cold aisle configurations. Center-to-center width can be set at 600 millimeters to match standard data-center floor tiles. Optional side panels, such as Tripp Lite's SR42SIDE (sold separately), may be added later if desired.
Meets Payment Card Industry Standards
The SRX42UBEXP provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance. This is essential for companies that process, store and/or transmit credit card information.
Features
Standard-Depth 42U Server Cabinet Accommodates 19 in. Rack Equipment
This SmartRack® 42U rack enclosure is designed for network wiring closets, retail locations, classrooms, back offices and other areas with essential rack-mount IT equipment. Constructed from heavy-duty steel with a durable black powder-coated finish, the SRX42UBEXP has a maximum stationary load capacity of 1360 kilograms and a maximum rolling load capacity of 1020 kilograms.
Keeps Important Equipment Secure
The reversible front door and split rear doors lock securely to help prevent damage, tampering or theft. The doors and top panel are designed for quick release, making it easy to access connected equipment and cabling with little effort. Convenient top access ports and an open bottom allow easy cable routing through the cabinet. The vented doors allow generous airflow from front to rear to keep your equipment cool and functioning at their peak.
Easy Enclosure and Equipment Installation
This 42U server rack comes fully assembled for quick and easy deployment with pre-installed casters that let you maneuver it over a level, smooth, stable surface and through a standard two-meter doorway into position, where it can be stabilized by adjusting the levelers. Four mounting rails adjust in 6.35-millimeter increments to accommodate equipment up to 850 millimeters deep. Toolless 0U mounting rails allow quick installation of up to four compatible PDUs and vertical cable managers.
Designed for Baying Multiple Enclosures in a Row
This expansion model comes without side panels for baying with other rack cabinets in a row. Integrated baying tabs make it easy to combine multiple units. This rack is also compatible with hot aisle/cold aisle configurations. Center-to-center width can be set at 600 millimeters to match standard data-center floor tiles. Optional side panels, such as Tripp Lite's SR42SIDE (sold separately), may be added later if desired.
Meets Payment Card Industry Standards
The SRX42UBEXP provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance. This is essential for companies that process, store and/or transmit credit card information.
Main Features
- 42U server cabinet for 19 in. rack equipment
- Heavy-duty steel with black powder-coated finish
- Max stationary load capacity: 1588 kg
- Max rolling load capacity: 1020 kg
- Reversible front door and split rear doors with locks
- Quick release doors and top panel for easy access
- Vented doors for optimal airflow
- Pre-installed casters for easy maneuverability
- Adjustable mounting rails for equipment up to 850 mm deep
- Compatible with hot aisle/cold aisle configurations
General Information
Name: Eaton Tripp Lite SRX42UBEXP
Category: Eaton Tripp Lite, Data Comm & Networking, Racks & Enclosures, Rack Cabinets & Frames
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number TC-SRX42UBEX Brand Name Eaton Tripp Lite Manufacturer Tripp Lite by Eaton Manufacturer Part Number SRX42UBEXP Product Line SmartRack Product Model SRX42UBEXP Product Name SmartRack SRX42UBEXP Rack Cabinet Product Type Rack Cabinet
Application/Usage LAN Switch, Patch Panel, Server, UPS
Color Black Depth 41.3" Form Factor Floor Standing Height 78.5" Rack Depth 33.47" Rack Height 42U Rack Width 19" Width 23.6"
Limited Warranty 5 Year
Assembly Required No Environmentally Friendly Yes Package Contents - SmartRack SRX42UBEXP Rack Cabinet
- 2 x Keys
- 50 x M6 Screws
- 50 x M6 Washers
- 50 x M6 Cage Nuts
- Owner's Manual
