Eaton Tripp Lite S3MT-100K480V SmartOnline S3MT-Series 3-Phase 100kVA Input Isolation Transformer, Delta 480V to 208V Wye
Eaton Tripp Lite S3MT-100K480V SmartOnline S3MT-Series 3-Phase 100kVA Input Isolation Transformer, Delta 480V to 208V Wye
Eaton Tripp Lite S3MT-100K480V SmartOnline S3MT-Series 3-Phase 100kVA Input Isolation Transformer, Delta 480V to 208V Wye
S3MT-100K480V | TC-S3MT100K4
Please sign in to view pricing and availability and to add to cart.
Product Overview
Get Complete Step-Down and Isolation Protection and Prevent Power Disruption
Tripp Lite's S3MT-100K480V 100kVA/kW transformer offers line isolation and protection to the connected 3-phase UPS system and its load. It isolates the UPS and connected components from line surges and spikes caused by utility power disruptions that can damage equipment or corrupt data. The step-down input isolation transformer is ideal for 4-wire (3Ph+N+PE) IT loads in government, manufacturing, healthcare and corporate settings with a 480V electrical feed and 208/120V equipment.
Performs with High Efficiency up to 97.7%

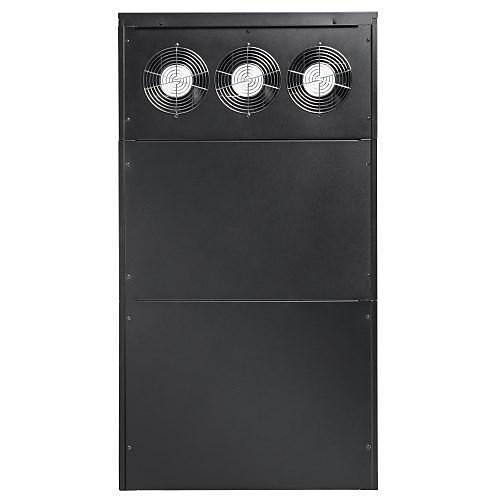

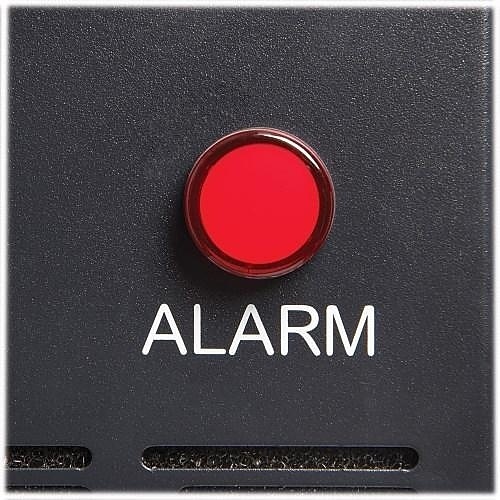

Not only is the S3MT-100K480V very efficient, with up to 97.7 percent efficiency, but it is also very quiet with a noise profile less than 65 dBA. A built-in circuit breaker on the output side helps prevent dangerous power overloads. Three large ball-bearing cooling fans help prevent overheating. An overheat-sensing relay and switch combine with a red LED indicator to provide over-temperature warning and overheating protection.
Small Footprint for Quick Installation in a Compact Space

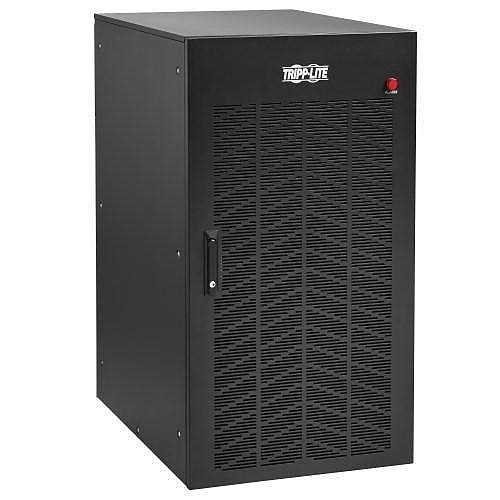

The compact footprint enables installation of the S3MT-100K480V with minimal space. The rugged stainless steel housing ships ready for immediate installation with a compatible 80-100kVA/kW Tripp Lite S3M-Series 3-phase UPS system.
Main Features
- Provides complete step-down and isolation protection
- Prevents Power disruptions and equipment damage
- Ideal for 4-wire IT loads in various settings
- High efficiency up to 97.7%
- Quiet operation with noise profile under 65 dBA
- Built-in circuit breaker prevents Power overloads
- Cooling fans and overheat protection included
- Compact footprint for easy installation
- Rugged stainless steel housing
General Information
Specifications
ADI Part Number TC-S3MT100K4 Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number S3MT-100K480V Product Line SmartOnline Product Model S3MT-100K480V Product Name SmartOnline S3MT-100K480V Isolation Transformer Product Series SmartOnline S3MX Product Type Isolation Transformer Sector Data Comm & Networking
Application/Usage Commercial, Residential Output Voltage 480V AC Phase Three Phase
TAA Compliant Yes
Color Red Depth 33.5" Form Factor Tower Height 47.2" Weight 1078lb Width 23.6"
Input Voltage 480V AC Power Rating 100 kVA
Limited Warranty 2-Year
Compatibility Tripp Lite 80-100kVA/kW S3M-Series 3-Phase UPS System Environmentally Friendly Yes Package Contents - S3MT-100K480V 3-Phase 100kVA Input Isolation Transformer
- Owner’s manual
