Image of TC-P5663VGAA

Tripp Lite P566-003-VGA-A HDMI to VGA + Audio Active Adapter Cable, HDMI to Low-Profile HD15 + 3.5 mm Male / Male, 3' (0.9m)

P566-003-VGA-A|TC-P5663VGAA

Tripp Lite P566-003-VGA-A HDMI to VGA + Audio Active Adapter Cable, HDMI to Low-Profile HD15 + 3.5 mm Male / Male, 3' (0.9m)

P566-003-VGA-A|TC-P5663VGAA

Sign In for Dealer Pricing

Become an ADI Customer
Image of TC-P5663VGAA
Eaton Tripp Lite

Tripp Lite P566-003-VGA-A HDMI to VGA + Audio Active Adapter Cable, HDMI to Low-Profile HD15 + 3.5 mm Male / Male, 3' (0.9m)

P566-003-VGA-A | TC-P5663VGAA

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

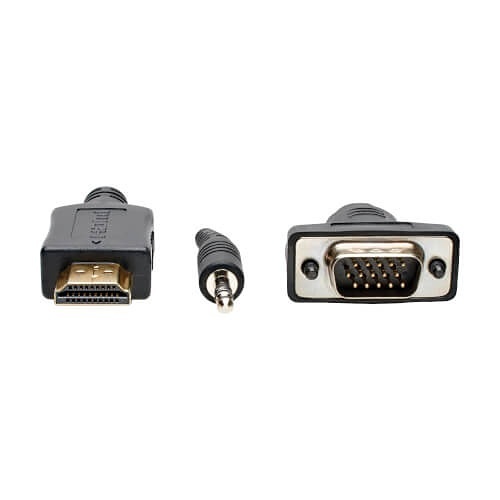

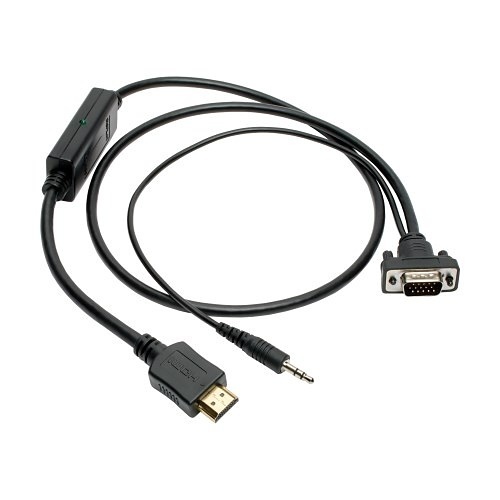

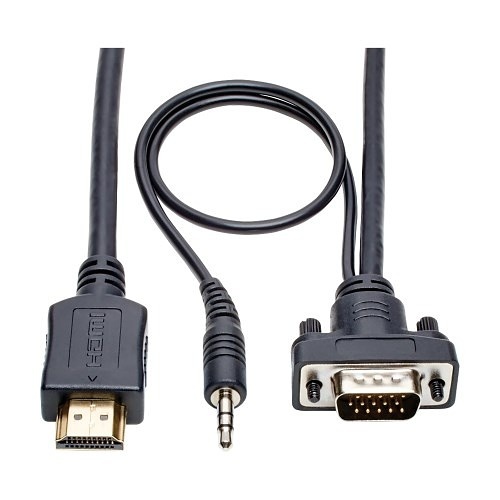

The P566-003-VGA-A HDMI to VGA + Audio Active Converter Cable connects a computer, cable box, Blu-ray™ player or other HDMI source to the VGA port on a monitor, projector or television. This allows you to use your existing VGA display instead of investing time, effort and money into upgrading to a new HDMI display. The low-profile HD15 connector fits neatly into tight spaces without jamming between the monitor and wall or blocking nearby connections. An attached 3.5 mm plug allows connection of compatible mini stereo speakers.

Ideal for displaying video on a large monitor or digital sign, this three-foot converter cable supports high-definition video resolutions up to 1920 x 1200 at 60 Hz. No software or drivers are required. If additional power is needed, connect a USB cable (sold separately) between the cable's USB Micro-B port and a USB wall charger or computer port.

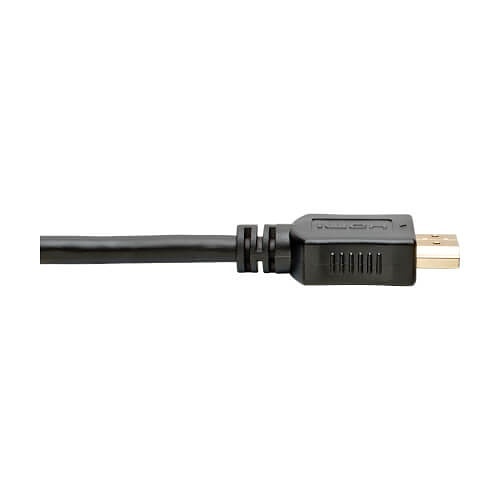

Foil and braid shielding delivers reliable, error-free signal quality and protection from EMI/RFI line noise that can distort or destroy data. The corrosion-resistant gold-plated HDMI connector and contacts provide maximum conductivity and minimize data loss. Integral strain relief gives the cable extra flexibility, reduces stress, and helps the cable and connectors move freely without cracking.

Main Features

  • HDMI to VGA Conversion with audio support
  • Ideal for large monitors and digital signage
  • Low-profile HD15 Connector for tight spaces
  • Plug-and-play, no software needed
  • Supports HD Resolutions up to 1920 x 1200 at 60 Hz
  • Foil and braid shielding for EMI/RFI protection
  • Gold-Plated HDMI for maximum conductivity
  • Integral strain relief for added flexibility
  • Impedance-matched to reduce crosstalk
  • USB Micro-B port for additional Power

General Information

Name: Tripp Lite P566-003-VGA-A HDMI to VGA + Audio Active Adapter Cable, HDMI to Low-Profile HD15 + 3.5 mm Male / Male, 3' (0.9m)
Category: Eaton Tripp Lite, Pro AV, Commercial Connector Cables, Pro HDMI to VGA Cables
UPC Code: 037332201072
Country of Origin: China. Country of origin is subject to change.
