Eaton Tripp Lite HCTHERMISTOR
HCTHERMISTOR | TC-HCTHERMIS
Please sign in to view pricing and availability and to add to cart.
Product Overview
Features
Medical-Grade Temperature Sensor Protects Connected Battery from Excessive HeatThis medical
temperature sensor provides extra fault protection for the sealed lead acid (SLA) batteries in your Tripp
Lite HC150SL or HCINT150SL power module for mobile medical carts. The HCTHERMISTOR lets the
power module shut down battery charger if the battery's temperature exceeds 50 degrees Celsius (122
degrees Fahrenheit). It helps prevent overcharging, which can protect the connected battery and prolong
its lifespan.

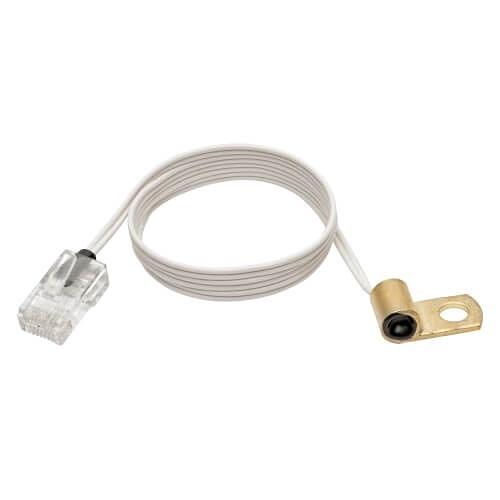

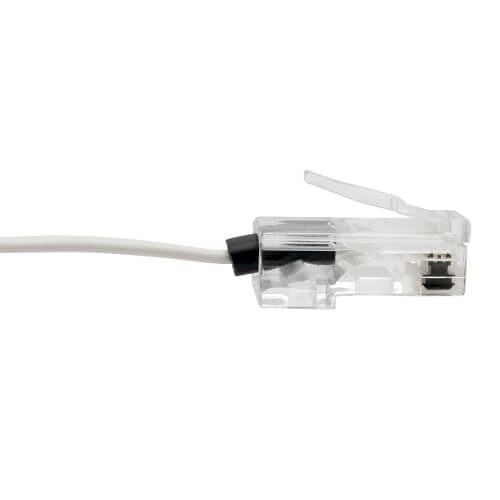

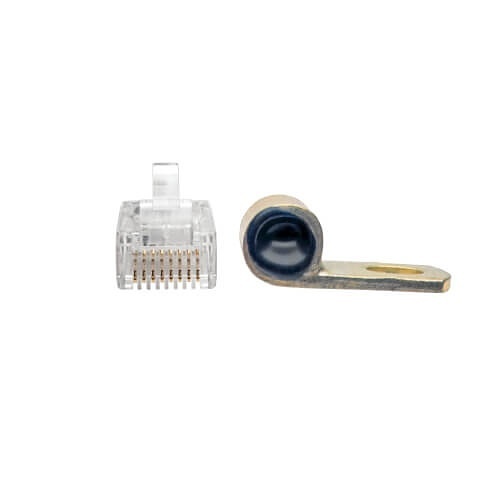

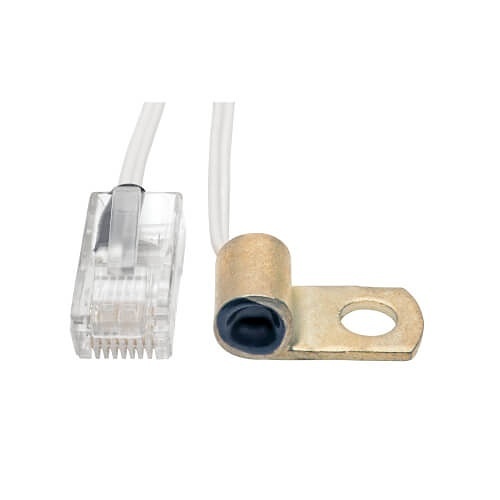

Compatible with Tripp Lite Medical Power ModulesConnect the RJ45 end of the two-foot medical-
grade temperature sensor cable to the temperature sensor port on your power module. The other end is a
ring terminal that connects to the battery's negative post.
Main Features
- Medical-grade temperature sensor for healthcare Power modules
- Protects battery from excessive heat and overcharging
- Compatible with HC150SL and HCINT150SL Power modules
- Shuts down battery charger if temperature exceeds 50°C (122°F)
- Prolongs battery lifespan by preventing overcharging
- 2' (0.6 m) Cable with RJ45 and ring terminal connections
General Information
Specifications
ADI Part Number TC-HCTHERMIS Brand Name Eaton Tripp Lite Manufacturer Tripp Lite by Eaton Manufacturer Part Number HCTHERMISTOR Product Model HCTHERMISTOR Product Name HCTHERMISTOR Temperature Sensor Product Type Temperature Sensor
Depth 0.5" Height 5" Width 0.5"
Limited Warranty 2 Year
Compatibility Tripp Lite Healthcare Power Modules Environmental Certification RoHS Environmentally Friendly Yes
