Product Overview

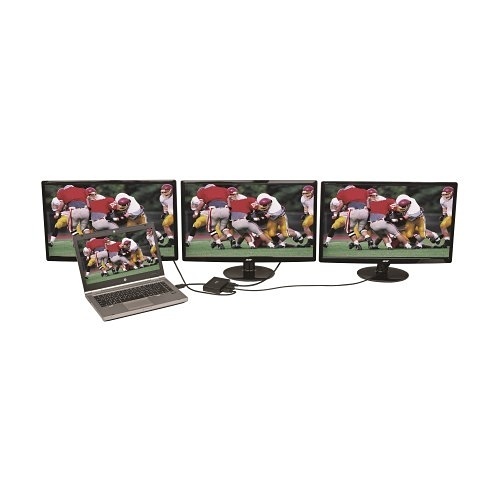

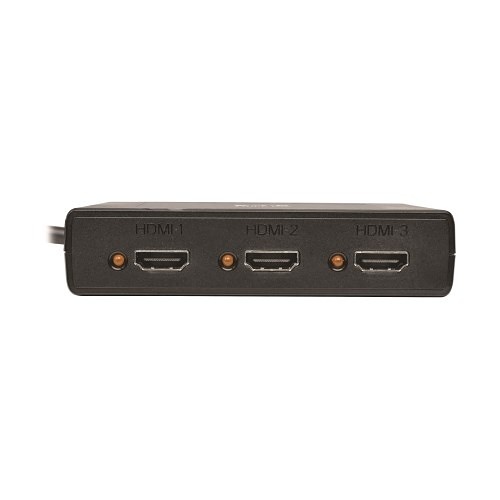

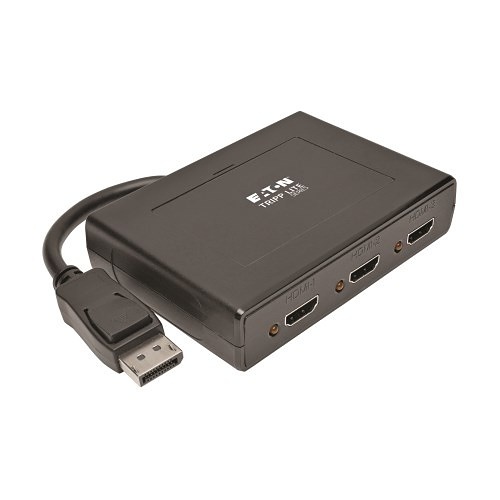

The B156-003-HD-V2 3-Port DisplayPort 1.2 to HDMI MST Hub connects up to three HDMI monitors to the DisplayPort output on your computer. Ideal for digital signage in schools, churches, conference rooms, trade shows, hotels and retail outlets, this hub allows you to display the same image on all three monitors, extend the desktop across them, or combine all three as one large monitor in video wall mode. The B156-003-HD-V2 is compliant with DisplayPort 1.2 and backward compatible with versions 1.1 and 1.1a with the feature set being limited to that of your equipment. It supports Ultra High Definition (UHD) video resolutions up to 4K at 60 Hz (3840x2160). In video wall mode, it supports expanded resolutions, such as 5760x1080 in a horizontal 1x3 monitor configuration or 1920x3240 in a vertical 3x1 configuration. This MST hub also supports HDCP, EDID, DDC and 48-Bit Deep Color (16-Bit per channel), as well as DTS-HD, Dolby TrueHD and 7.1-Channel surround sound audio. It works with all operating systems. Plug-and-play convenience means no software or drivers are needed. A built-in 6" cable connects directly to a DisplayPort source. LEDs indicate when the monitors are receiving a signal.
Main Features
- Supports UHD video resolutions up to 3840 x 2160 (4K x 2K)

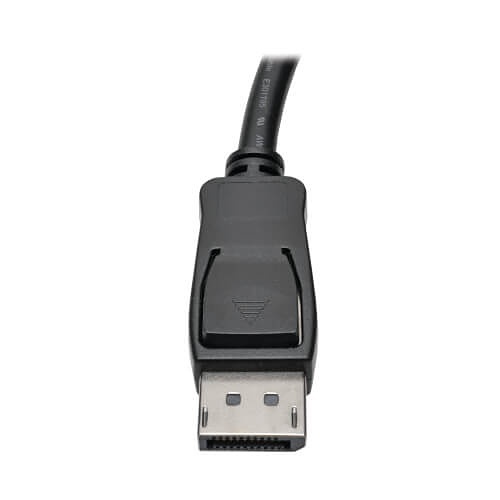

- Built-in 6" cable connects directly to DisplayPort source
- Supports up to 48-bit Deep Color (16 bits per channel)
- Works with all operating systems
- Supports DTS-HD, Dolby TrueHD and 7.1-channel surround sound
General Information
Name: Eaton Tripp Lite B156-003-HD-V2 3-Port DisplayPort to HDMI Multi-Monitor Splitter, MST Hub, 4K 60 Hz UHD, DP1.2, TAA
Category: Eaton Tripp Lite, Residential AV, Pro AV, Residential Video Signal Distribution, Commercial Video Signal Distribution, HDMI Splitters, Pro HDMI Splitters
UPC Code: 037332193346
Country of Origin: Taiwan, Province of China. Country of origin is subject to change.
Specifications
ADI Part Number TC-B1563HDV2 Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number B156-003-HD-V2 Packaged Quantity 1 Product Model B156-003-HD-V2 Product Name B156-003-HD-V2 3-Port DisplayPort 1.2 to HDMI MST Hub Product Type Signal Splitter Weight 3.88oz
TAA Compliant Yes
Maximum Video Resolution 3840 x 2160
DisplayPort Yes Number of HDMI Outputs 3
Depth 3" Height 0.9" Width 4.3"
Input Voltage 5V DC
Limited Warranty 3-Year
Environmentally Friendly Yes Package Contents - B156-003-HD-V2 3-Port DisplayPort 1.2 to HDMI MST Hub
- External power supply w/NEMA 1-15P plug and 5 ft. cord (Input: 100–240V, 50/60 Hz, 0.5A; Output: 5V, 2A)
- Owner’s manual
