Image of TC-B156004V2
Shop all Eaton Tripp Lite

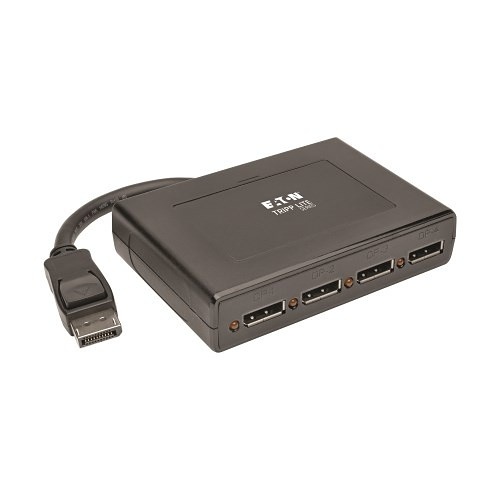

Eaton Tripp Lite B156-004-V2 4-Port 4K DisplayPort Multi-Monitor Splitter, MST Hub, 60Hz, TAA

B156-004-V2|TC-B156004V2
Shop all Eaton Tripp Lite

Eaton Tripp Lite B156-004-V2 4-Port 4K DisplayPort Multi-Monitor Splitter, MST Hub, 60Hz, TAA

B156-004-V2|TC-B156004V2

Sign In for Dealer Pricing

Become an ADI Customer
Image of TC-B156004V2
Eaton Tripp Lite

Eaton Tripp Lite B156-004-V2 4-Port 4K DisplayPort Multi-Monitor Splitter, MST Hub, 60Hz, TAA

B156-004-V2 | TC-B156004V2

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

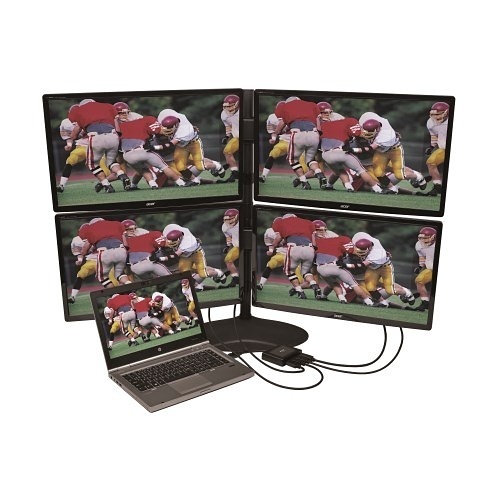

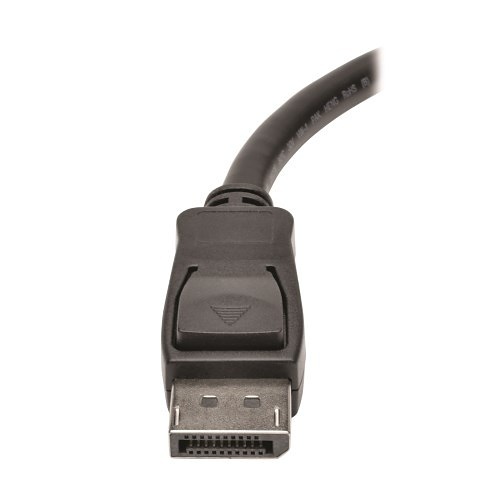

The B156-004-V2 4-Port DisplayPort 1.2 MST Hub connects up to four DisplayPort monitors to the DisplayPort output on your computer. Ideal for digital signage in schools, churches, conference rooms, trade shows, hotels and retail outlets, this hub allows you to display the same image on all four monitors, extend the desktop across them, or combine all four into one large monitor in video wall mode. The B156-004-V2 is compliant with DisplayPort 1.2 and backward compatible with versions 1.1 and 1.1a with the feature set being limited to that of your equipment. It supports high-definition video resolutions up to 1920x1080 (1080p) per monitor. In video wall mode, this hub supports expanded video resolutions, such as 4K at 60Hz (3840x2160) in a 2x2 monitor configuration or 7680x1080 in a vertical 4x1 configuration. This MST hub also supports HDCP, EDID, DDC and 48-Bit Deep Color (16-Bit per channel), as well as DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio. It works with all operating systems. Plug-and-play convenience means no software or drivers are needed. A built-in 6" cable connects directly to a DisplayPort source. LEDs indicate when the monitors are receiving a signal.

Main Features

  • Connects up to 4 DisplayPort monitors
  • Supports 4K video resolution at 60Hz
  • Ideal for digital signage and video walls
  • Plug-and-play, no software needed
  • Compatible with DisplayPort 1.2 and 1.1a
  • Supports HDCP, EDID, DDC, and Deep Color
  • Works with all operating systems

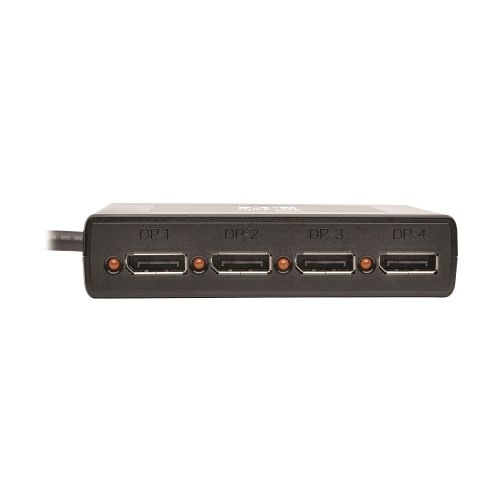

  • LED indicators for signal status
  • Complies with TAA for GSA purchases
  • Supports DTS-HD and Dolby TrueHD audio

General Information

Name: Eaton Tripp Lite B156-004-V2 4-Port 4K DisplayPort Multi-Monitor Splitter, MST Hub, 60Hz, TAA
Category: Eaton Tripp Lite, Residential AV, Pro AV, Residential Video Signal Distribution, Commercial Video Signal Distribution, HDMI Splitters, Pro HDMI Splitters
UPC Code:
Country of Origin: Taiwan, Province of China. Country of origin is subject to change.

Specifications

Product Documents and Resources

Product Data Sheet
User Manual
