Product Overview

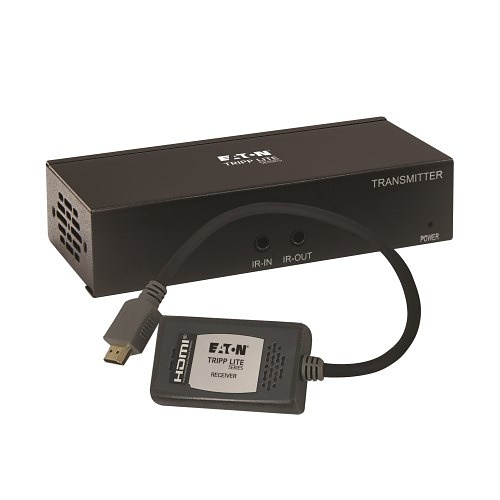

This complete transmitter and receiver system is recommended for video presentations in conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings, hotels and other digital signage applications where the source and display are farther apart than conventional A/V cables allow. The low-profile pigtail-type receiver is ideal for applications in which space around the display is restricted and a larger box-style receiver will not fit. The B127A-1A1-BHPH extends 4K signals from an HDMI source device to an HDMI display up to 230' away via user-supplied CAT6 cabling. By adding a Tripp Lite B127A-010-H HDMI repeater or B127A-110-BH Transceiver (sold separately) to the application, you can extend the signal up to 400 or 460', respectively. The B127A-1A1-BHPH supports Ultra HD resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz, as specified by HDMI 2.0, with full, rich uncompressed DTS-HD, Dolby TrueHD and 7.1-channel digital audio. High Dynamic Range (HDR) provides a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 Compliance allows you to stream 4K Amazon and Netflix content with no complications. This extender kit also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. Built-in equalization allows you to fine-tune the image quality at the remote display. To monitor the video signal being extended to the receiver, connect a 4K display to the transmitter's local HDMI port with a user-supplied HDMI cable. This port does not support multi-resolution capabilities, so the connected monitor must also support 4K / 60 Hz to function properly. Power over Cable (PoC) technology powers the receiver over CAT6 cable. LEDs on both the transmitter and receiver will light up to indicate the system is receiving power and a signal is being transmitted. PoC lets you avoid the hassle of a bulky power brick and gives you the freedom to place the receiver where needed without worrying about finding a nearby AC outlet. The included transmitter and receiver units work right out of the box with no software required. Mounting hardware is included for installing the transmitter on a wall, pole or 19" rack. Connect the transmitter to the source with a user-supplied HDMI cable (such as Tripp Lite's P568- or P569-Series). Then, connect the pigtail receiver to the display with its built-in HDMI cable. Finally, connect the 2 units with user-supplied CAT6 patch cable (such as Tripp Lite N202-Series).
Main Features
- Supports 4K at 60 Hz video resolutions (4:4:4) as specified in HDMI 2.0
- Carries High Dynamic Range (HDR) signals for rich contrast and expanded color accuracy
- Power over Cable (PoC) technology provides power to the receiver via Cat6 cable

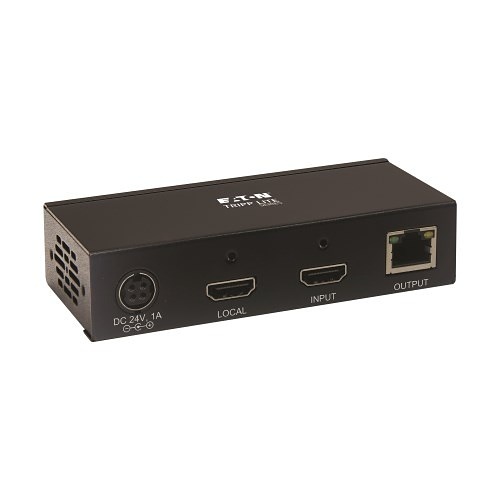

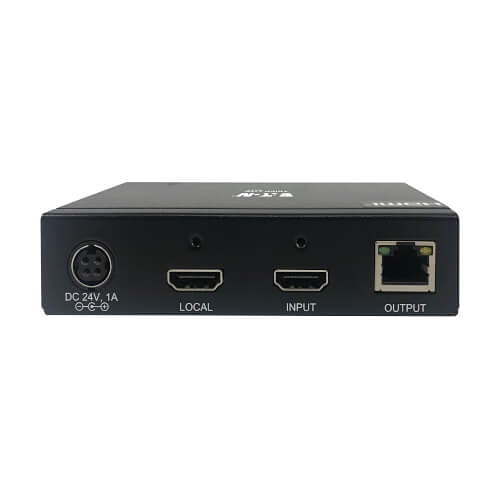

- Transmitter's local port shows you the 4K image being displayed at the other end
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- 1-year limited warranty
General Information
Name: Eaton Tripp Lite B127A-1A1-BHPH HDMI Over CAT6 Extender Kit, Transmitter and Pigtail Receiver, 4K 60 Hz, 4:4:4, PoC, HDR, HDCP 2.2, 230', TAA
Category: Eaton Tripp Lite, Residential AV, Pro AV, Residential Video Signal Distribution, Commercial Video Signal Distribution, HDMI Extenders, Pro HDMI Extenders
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number TC-B1271A1B Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number B127A-1A1-BHPH Product Model B127A-1A1-BHPH Product Name B127A-1A1-BHPH Video Extender Transmitter/Receiver Product Type Video Extender Transmitter/Receiver
Cable Type Category 6 Connectivity Technology Wired Maximum Operating Distance 230' Media Type Supported Twisted Pair Number of Input Devices Supported 1 Number of Output Devices Supported 1
TAA Compliant Yes
Maximum Video Resolution 3840 x 2160
Network (RJ-45) Yes Number of HDMI Inputs 1 Number of HDMI Outputs 1 Number of Network (RJ-45) Ports 2
Application/Usage Residential Depth 6.24" Form Factor Rack Mount, Wall Mount Height 2.7" Width 11.5"
Graphics Modes 4K
Limited Warranty 1-Year
Environmentally Friendly Yes
