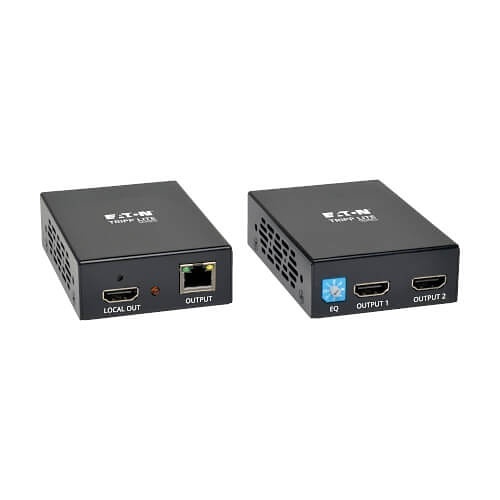

Image of TC-B1262A1
Shop all Eaton Tripp Lite

Eaton Tripp Lite B126-2A1 x HDMI Over CAT5/6 Extender Kit, Box-Style Transmitter/Receiver for Video/Audio, up to 150' (45 m), TAA

B126-2A1|TC-B1262A1
Shop all Eaton Tripp Lite

Eaton Tripp Lite B126-2A1 x HDMI Over CAT5/6 Extender Kit, Box-Style Transmitter/Receiver for Video/Audio, up to 150' (45 m), TAA

B126-2A1|TC-B1262A1

Sign In for Dealer Pricing

Become an ADI Customer
Image of TC-B1262A1
Eaton Tripp Lite

Eaton Tripp Lite B126-2A1 x HDMI Over CAT5/6 Extender Kit, Box-Style Transmitter/Receiver for Video/Audio, up to 150' (45 m), TAA

B126-2A1 | TC-B1262A1

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The B126-2A1 HDMI over CAT5/CAT6 Extender Kit includes a transmitter unit and a receiver unit that work in tandem to extend an HDMI signal to two projectors, monitors or televisions. The kit is ideal for digital signs, trade shows, presentations, classrooms, churches, retail settings and other applications where the video source is located farther than conventional cables allow or that require multiple displays connected to one source. HDMI cable connects the local monitor and the audio/video source to the transmitter's HDMI ports and two monitors to the receiver. CAT5e/6 cable (for best results, use 24AWG solid-wire CAT5e/6 cable, such as the N202-Series) connects the two units. The B126-2A1 can extend a 1080i (60 Hz) signal up to 200' (61m), a 1080p (60 Hz) signal up to 150' (45.7m) and a 3D signal up to 125' (38.1m). You can connect up to three B126-110 remote repeaters in the chain for a maximum of six HDMI displays and full signal extension of 700' (213m) (1080i), 500' (152m) (1080p) or 400' (122m) (3D). In addition to crystal-clear video, the B126-2A1 delivers full, rich stereo and 7.1-Channel surround sound (multi-channel or PCM) audio. Built-in equalization control lets you fine-tune the image quality at each remote display. Supports 24-Bit True Color (8-Bit per channel) and HDCP compatibility. Easy to set up with no software or drivers to install. Mounts to a wall, rack or pole using the included hardware.

Main Features

  • Extends 1080p signals up to 150'
  • Supports 3D signals up to 125'
  • Connects with one CAT5e/6 cable
  • Compatible with all HDMI video sources
  • Supports 7.1-Channel surround sound
  • Plug-and-play, no software needed
  • Includes mounting hardware
  • TAA-Compliant for GSA purchases

General Information

Name: Eaton Tripp Lite B126-2A1 x HDMI Over CAT5/6 Extender Kit, Box-Style Transmitter/Receiver for Video/Audio, up to 150' (45 m), TAA
Category: Eaton Tripp Lite, Pro AV, Commercial Video Signal Distribution, Pro HDMI Extenders
UPC Code: 037332180735
Country of Origin: Taiwan, Province of China. Country of origin is subject to change.

Specifications

Product Documents and Resources

Product Data Sheet
User Manual
Manufacturer Brochure
