Image of TC-B126004
Shop all Eaton Tripp Lite

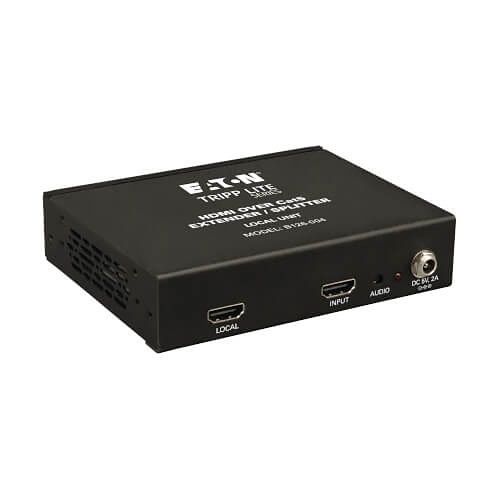

Eaton Tripp Lite B126-004 4-Port HDMI over CAT5/CAT6 Extender/Splitter, Box-Style Transmitter for Video and Audio, 1080P at 60 Hz, up to 200', TAA

B126-004|TC-B126004
Shop all Eaton Tripp Lite

Eaton Tripp Lite B126-004 4-Port HDMI over CAT5/CAT6 Extender/Splitter, Box-Style Transmitter for Video and Audio, 1080P at 60 Hz, up to 200', TAA

B126-004|TC-B126004

Sign In for Dealer Pricing

Become an ADI Customer
Image of TC-B126004
Eaton Tripp Lite

Eaton Tripp Lite B126-004 4-Port HDMI over CAT5/CAT6 Extender/Splitter, Box-Style Transmitter for Video and Audio, 1080P at 60 Hz, up to 200', TAA

B126-004 | TC-B126004

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The B126-004 4-Port HDMI over CAT5/CAT6 Extender/Splitter works with B126-Series remote receivers to split a single HDMI audio/video signal into five separate signals, one local and four remote. It's ideal for digital signs, trade shows, presentations, retail settings and other applications where the video source is located farther than conventional cables allow or that require multiple displays connected to one source. It uses HDMI cable (see P568-Series) to connect to the source and the local monitor and CAT5e/6 cable to transmit to the remote monitors (for best results, use 24AWG solid-wire CAT5e/6 cable, such as N202-Series). When used with B126-1A0 or B126-1A0-WP-1 active remote receivers, the Extender/Splitter can extend a 1080i (60 Hz) signal up to 200' (61m), a 1080p signal (60 Hz) up to 150' (45.7m) and a 3D signal up to 125' (38.1m). With a B126-1P0 or B126-1P0-WP-1 passive remote receiver, it can extend a 1080i (60 Hz) signal up to 100' (30.5m) and a 1080p (60 Hz) signal up to 50' (15.2m). By daisy-chaining up to three Extender/Splitters, one video source can transmit to as many as 13 monitors, one local and 12 remote. Add up to three B126-110 remote repeaters to each channel to fully extend the signal range or add more displays. In addition to crystal-clear video, the B126-004 delivers full, rich stereo and 7.1-Channel surround sound (multi-channel or PCM) audio. Easy to set up with no software or drivers to install. Mounts to a wall, rack or pole using the included hardware. Included HDMI cable with latching connectors provides a more secure connection.

Main Features

  • Perfect for digital signs, trade shows and classrooms
  • Can daisy-chain up to 3 units to extend signal to 13 monitors
  • Works with all operating systems and HDMI video sources
  • Supports stereo and 7.1-channel surround sound audio
  • Plug and play-no software or drivers to install

General Information

Name: Eaton Tripp Lite B126-004 4-Port HDMI over CAT5/CAT6 Extender/Splitter, Box-Style Transmitter for Video and Audio, 1080P at 60 Hz, up to 200', TAA
Category: Eaton Tripp Lite, Residential AV, Pro AV, Residential Video Signal Distribution, Commercial Video Signal Distribution, HDMI Splitters, Pro HDMI Splitters
UPC Code: 037332157515
Country of Origin: Taiwan, Province of China. Country of origin is subject to change.

Specifications

Product Documents and Resources

Product Data Sheet
User Manual
Manufacturer Brochure
