VIVOTEK

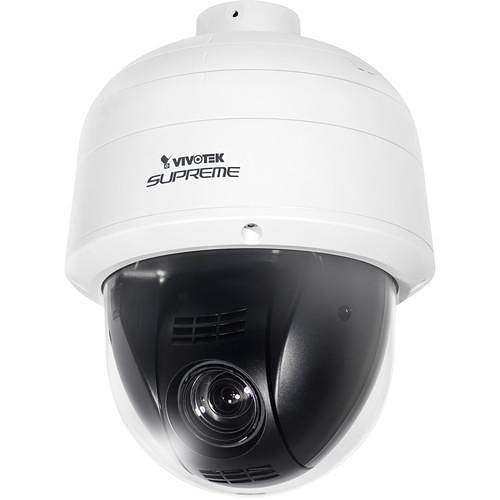

VIVOTEK SD8161 Indoor PTZ IP Speed Dome Camera, 18x Zoom Lens
SD8161 | T6-SD8161
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The 2MP Indoor PTZ Dome Camera from Vivotek features a 2MP 0.3" progressive scan CMOS sensor and a 4.7-84 mm varifocal lens to capture 1920 x 1080 resolution video at up to 30 fps. It supports H.264 and MJPEG compression for high-quality recording and playback. WDR technology allows the camera to compensate for challenging lighting conditions to produce accurate images.
Main Features
- 1920 x 1080 Resolution at 30 fps
- Mechanical IR Cut Filter
- 18x Optical Zoom with Auto Focus
- 70 to 5° Diagonal Field of View
- MicroSD Card Slot for Up to 64GB Storage
- ONVIF Compliant
- RJ45 Ethernet Connection with PoE
General Information
Name: VIVOTEK SD8161 Indoor PTZ IP Speed Dome Camera, 18x Zoom Lens
Category: VIVOTEK, Video Surveillance, IP Cameras, PTZ Security Cameras, ADI Pro Rewards
UPC Code: 4712123674704
Country of Origin: Taiwan, Province of China. Country of origin is subject to change.
Specifications
ADI Part Number T6-SD8161 Brand Name VIVOTEK Manufacturer Part Number SD8161
Effective Camera Resolution 2MP Field of View Diagonal, Horizontal, Vertical Lens Type Varifocal Maximum Aperture f/2.8 Maximum Frame Rate 30 fps Minimum Focal Length 4.7 mm Night Vision Yes Optical Zoom 18x
Wide Dynamic Range Yes
Maximum Video Resolution 1920 x 1080
Longest Shutter Speed 1/5 Second Minimum Illumination 0.001 lux Shortest Shutter Speed 1/32000 Second
Focal Length 4.7-84 mm Maximum Focal Length 84 mm Minimum Aperture f/1.6
Height 10.5" Width 10.5"
Input Voltage 12V DC, 24V AC
Length 12.6" Mount Type Dome
Limited Warranty 3 Year
Environmental Certification CE, FCC, UL Environmentally Friendly Yes Indoor/Outdoor Indoor
