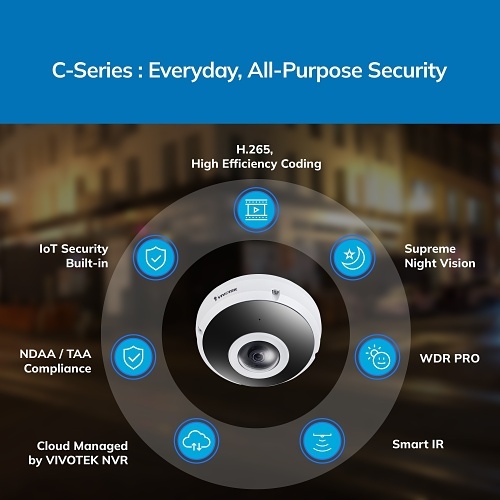

VIVOTEK FE9380-HV C-Series 5MP 360° Fisheye Pro IP Camera, 1.16mm Fixe Lens, WDR, Black and White
FE9380-HV|T6-FE9380HV
VIVOTEK FE9380-HV C-Series 5MP 360° Fisheye Pro IP Camera, 1.16mm Fixe Lens, WDR, Black and White
FE9380-HV|T6-FE9380HV
VIVOTEK
VIVOTEK FE9380-HV C-Series 5MP 360° Fisheye Pro IP Camera, 1.16mm Fixe Lens, WDR, Black and White
FE9380-HV | T6-FE9380HV
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The 5MP FE9380-HV is the newest addition to the VIVOTEK 360° fisheye family. The FE9380-HV is a true day/night camera, with a removable IR-cut filter and 360° IR illumination up to 10m radius. It supports up to 30 fps at full 5MP resolution as well as WDR Pro 120 dB to maintain excellent image quality in high contrast lighting environments. These features greatly enable the FE9380-HV to provide clear images 24 hours a day. To meet the demands of harsh outdoor applications, the FE9380-HV is armed with an IP66-rated housing for protection from rain and dust, as well as IK10-rated for robust protection against acts of vandalism. Lastly the FE9380-HV uses H.265 compression technology. When combined with Smart Stream III, H.265 helps to reduce bandwidth and storage consumption up to 90%, enabling the FE9380-HV to record more detailed 360° images while simultaneously helping to reduce costs.
Main Features
- H.265 Compression technology
- 30 fps at 1920 x 1920
- Smart Stream III to optimize bandwidth efficiency
- WDR Pro for improved visibility in extremely bright and dark environments
- Built-in IR illuminators, effective up to 10m
- Weather-proof IP66-rated and vandal-proof IK10-rated housing
- Built-in MicroSD/SDHC/SDXC card slot for on-board storage
- Trend Micro IoT Security
- Built-in microphone
- Local dewarping
General Information
Name: VIVOTEK FE9380-HV C-Series 5MP 360° Fisheye Pro IP Camera, 1.16mm Fixe Lens, WDR, Black and White
Category: VIVOTEK, Video Surveillance, IP Cameras, Panoramic Cameras, ADI Pro Rewards
UPC Code: 4710469351754
Country of Origin: Taiwan, Province of China. Country of origin is subject to change.
Specifications
ADI Part Number T6-FE9380HV Brand Name VIVOTEK Manufacturer Vivotek, Inc Manufacturer Part Number FE9380-HV Product Model FE9380-HV Product Name Fisheye Network Camera Product Series C Product Type Network Camera Weight 1.53lb
Connectivity Technology Wired Effective Camera Resolution 5MP Field of View 180° Lens Type Fixed Maximum Aperture f/2.25 Maximum Frame Rate 30fps Minimum Focal Length 1.16mm Number of IR LEDs 4 Video Formats H.264, H.265, MJPEG
Image Sensor Type CMOS Night Vision Distance 32.81 ft Wide Dynamic Range Yes
Ingress Protection Rating IP66 NDAA Compliant Yes TAA Compliant Yes
Maximum Video Resolution 1600 x 1200
Maximum Operating Temperature 140°F (60°C) Minimum Operating Temperature -22°F (-30°C) Operating Humidity 0.9
Network (RJ-45) Yes
Focal Length 1.16 mm Maximum Focal Length 1.16 mm
Remote Management Yes
ADI Part Number Replaces T6-FE9181H, T6-FE9182H Model Number Replaces FE9181-H, FE9182-H
Color Black, White Durability Dustproof, Impact Resistant, Waterproof Form Factor Fisheye Height 2.7"
Diameter 5.9" Mount Type Ceiling Mount, Wall Mount
Recording Formats HD
Maximum Resolution 1280 x 720
Limited Warranty 36-Month
Country of Origin TW Impact Protection Rating IK10 Indoor/Outdoor Outdoor Package Contents - Fisheye Network Camera
- Quick Installation Guide
- Warranty Card
- Screw Pack
- Alignment Sticker
- Desiccant Bag
