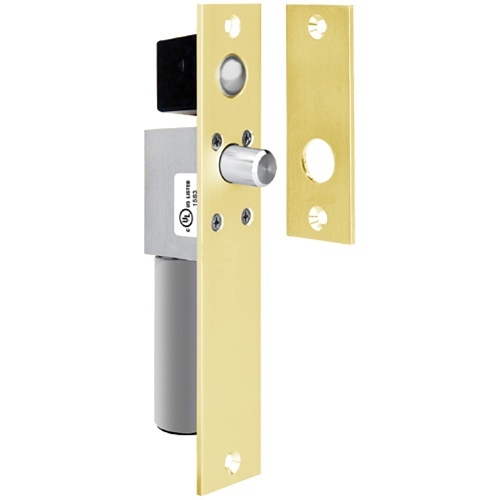

SDC 1091AIC FailSafe Spacesaver Mortise Bolt Lock, Bright Brass
1091AIC|SZ-1091AIC
SDC 1091AIC FailSafe Spacesaver Mortise Bolt Lock, Bright Brass
1091AIC|SZ-1091AIC
Security Door Controls
SDC 1091AIC FailSafe Spacesaver Mortise Bolt Lock, Bright Brass
1091AIC | SZ-1091AIC
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The SDC 1091AIC spacesaver mortise bolt is designed for safety applications, the door unlocks automatically when power is interrupted by the access control, power failure or a signal from the fire life safety system. Conventional failsafe locking bolts rely solely on a spring to retract the bolt while the FS23M bolt will unlock with or without the assistance of the spring. This is the only electric bolt lock listed by the California State Fire Marshal for locking of perimeter entrance and emergency exit doors after-hours. Large repelling magnets are located within the bolt and strike. When power is interrupted the bolt is retracted and held back by a spring. Should the spring fail, repelling magnets eject the bolt from the strike, unlocking the door.
Main Features
- Bright Brass finish
- Bolt Material: Nylon with center magnet
- Fits 1-3/4" minimum face frames
- Adjustable auto relock switch
- Mounting Tabs: Two aluminum mounting tabs are provided for easy lock installation
- Dual Voltage Coil 0.45 Amp at 24VDC continuous duty, 0.9 Amp at 12VDC continuous duty
General Information
Name: SDC 1091AIC FailSafe Spacesaver Mortise Bolt Lock, Bright Brass
Category: Security Door Controls, Access Control, Locking Devices, Deadbolts, Mortise Locks
UPC Code: 712905101019
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number SZ-1091AIC Brand Name Security Door Controls Manufacturer Part Number 1091AIC
