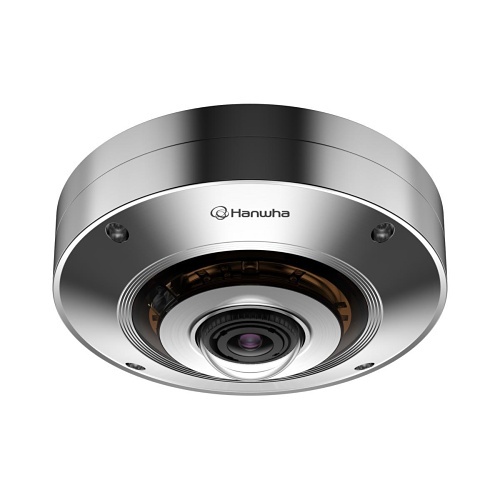

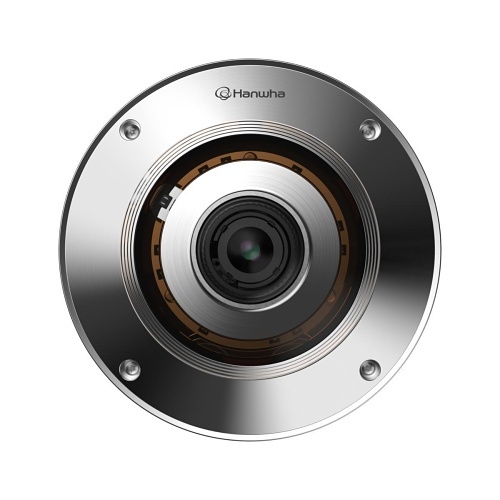

Hanwha XNF-9010RS X Series 12MP Outdoor IP Fisheye Camera
XNF-9010RS|SQ-XNF9010RS
Hanwha XNF-9010RS X Series 12MP Outdoor IP Fisheye Camera
XNF-9010RS|SQ-XNF9010RS
Hanwha Vision
Hanwha XNF-9010RS X Series 12MP Outdoor IP Fisheye Camera
XNF-9010RS | SQ-XNF9010RS
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Stainless steel Fisheye, powered by Wisenet 7, 1/2.3" 12MP CMOS, 3008x3008 resolution @ 30FPS, 1.08mm fixed focal lends, Stereographic type lens for enhanced resolution for the peripheral regions, H.265, H.264, MJPEG codec supported, Fisheye, Single panorama, Double panorama, Quad view, Onboard dewarping, Digital PTZ, extreme WDR (120dB), WiseStream? support, Wise IR, IR viewable length 26.2' (8m), Virtual channel support, selectable I/O port, Video Analytics, Heatmap, People counting, Queue management, Nylon dome, Handover, IP66/IP67/IP6K9K/IK10+/NEMA4X, PoE, 12VDC.
Main Features
- 12MP Outdoor IP Fisheye Camera
- Stainless steel construction
- Powered by Wisenet 7
- 3008x3008 resolution at 30FPS
- 1.08mm fixed focal lens
- Supports H.265, H.264, MJPEG codecs
- Extreme WDR (120dB)
- IR viewable length 26.2' (8m)
- Video Analytics and Heatmap
- IP66/IP67/IP6K9K/IK10+/NEMA4X rated
General Information
Name: Hanwha XNF-9010RS X Series 12MP Outdoor IP Fisheye Camera
Category: Hanwha Vision, Video Surveillance, IP Cameras, Panoramic Cameras, ADI Pro Rewards
UPC Code: 8801089199805
Country of Origin: Korea, Republic of. Country of origin is subject to change.
Specifications
ADI Part Number SQ-XNF9010RS Brand Name Hanwha Vision Manufacturer Hanwha Group Manufacturer Part Number XNF-9010RS Product Model XNF-9010RS Product Name Stainless Steel X series 12 MP sensor 360? Outdoor Fisheye Product Series X Product Type Network Camera
Connectivity Technology Wired Effective Camera Resolution 12MP Field of View H: 187° / V: 187° / D: 187° Lens Type Fixed Maximum Aperture f/2.2 Maximum Frame Rate 30fps Night Vision Yes Night Vision Type Infrared
Night Vision Distance 26' Wide Dynamic Range Yes
Ingress Protection Rating IP66, IP67, IP6K9K TAA Compliant Yes
Maximum Video Resolution 1600 x 1200
Maximum Operating Temperature 122°F Minimum Operating Temperature -40°F
Longest Shutter Speed 1/5 Second Shortest Shutter Speed 1/12000 Second
Focal Length 1.08 mm Lens Included Yes
Remote Management Yes
ADI Part Number Replaces SQ-PN9002VQS Model Number Replaces PNM-9002VQS
Color White Durability Dustproof, Impact Resistant, Waterproof Form Factor Fisheye
Storage Type Memory Card
Maximum Resolution 1280 x 720
Features Audio Compression, Audio Detection, Back Light Compensation (BLC), Built-in IR LED, Day/Night, Digital Noise Reduction, Enter/Exit Detector, Gain Control, Highlight Compensation (HLC), Motion Detection, Privacy Masking, PTZ, SD Card Local Storage, Tamper Detection, White Balance, Wide Dynamic Range Impact Protection Rating IK10 Indoor/Outdoor Outdoor
