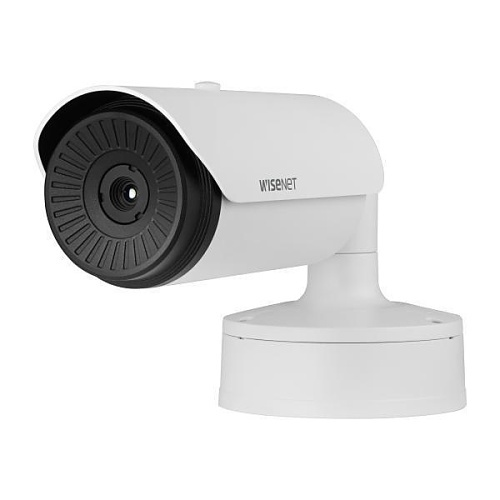

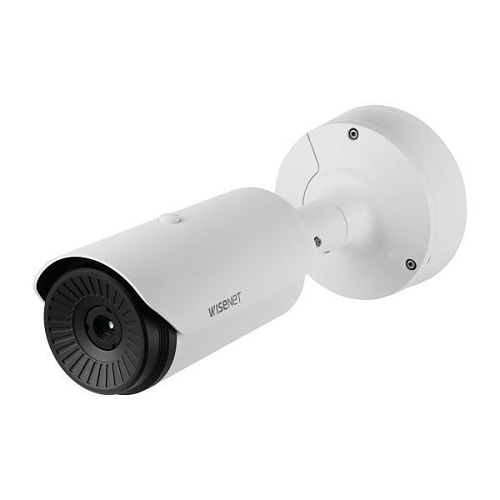

Hanwha TNO-3020T T Series QVGA Thermal Bullet Camera, 4.7mm Fixed Lens, White
TNO-3020T|SQ-TNO3020T
Hanwha TNO-3020T T Series QVGA Thermal Bullet Camera, 4.7mm Fixed Lens, White
TNO-3020T|SQ-TNO3020T
Hanwha Vision
Hanwha TNO-3020T T Series QVGA Thermal Bullet Camera, 4.7mm Fixed Lens, White
TNO-3020T | SQ-TNO3020T
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The Hanwha TNO-3020T T Series Thermal Bullet Camera offers advanced surveillance with a thermal QVGA resolution of 320 x 240. Equipped with a built-in 4.7mm fixed lens, it delivers smooth video at 30fps across all resolutions, supporting multiple codecs including H.265, H.264, and MJPEG for versatile streaming options. Featuring WiseStream II technology and 7 color palettes, it enhances image clarity. The camera supports two-way audio, alarm I/O, and has a large memory slot compatible with SD cards up to 256GB. Built to endure extreme temperatures from -40°F to 140°F, it includes PoE, multiple power inputs, and robust IP66, NEMA4X, IK10 ratings for all-weather, vandal-resistant performance. Upgrade your security with this reliable thermal camera today!
Main Features
- Thermal QVGA (320 x 240) resolution
- Built-in 4.7mm fixed lens
- 30fps at ll resolutions(H.265, H.264, MJPEG)
- H.265, H.264, MJPEG triple codec support
- WiseStream II support
- 7 selectable color palettes
- 2-way bi-directional audio and Alarm I/O support
- SD / SDHC / SDXC memory slot (Maximum 256GB)
- Operating temperature -40 deg F -+140 degF
- PoE, 24V AC, 12V DC / IP66, NEMA4X, IK10
General Information
Name: Hanwha TNO-3020T T Series QVGA Thermal Bullet Camera, 4.7mm Fixed Lens, White
Category: Hanwha Vision, Video Surveillance, IP Cameras, Bullet Cameras, ADI Pro Rewards
UPC Code: 8801089191694
Country of Origin: Korea, Republic of. Country of origin is subject to change.
Specifications
ADI Part Number SQ-TNO3020T Brand Name Hanwha Vision Manufacturer Hanwha Group Manufacturer Part Number TNO-3020T Product Model TNO-3020T Product Name QVGA NW Thermal Camera Product Series T Product Type Network Camera
Connectivity Technology Wired Field of View H: 50,0?, V: 36,4?, D: 65,3? Lens Type Fixed Maximum Aperture f/1 Maximum Frame Rate 30fps Video Resolution 320 x 240
Ingress Protection Rating IP66 NDAA Compliant Yes
Maximum Video Resolution 320 x 240
Maximum Operating Temperature 140°F Minimum Operating Temperature -40°F
Focal Length 4.7 mm Lens Included Yes Maximum Focal Length 4.7 mm Maximum Thermal Focal Length 4.7mm
Remote Management Yes
Color White Durability Dustproof, Impact Resistant, Waterproof Weight 5.54lb
Input Voltage 12V DC, 24V AC
Recording Formats HD Storage Type Memory Card
Analog Video Signal Format CVBS Maximum Resolution 1280 x 720
Features Alarm Triggering, Audio Compression, Audio Detection, Digital Image Stabilization, HTTPS Encryption, Motion Detection, Privacy Masking, SD Card Local Storage, Shock Detection Impact Protection Rating IK10
