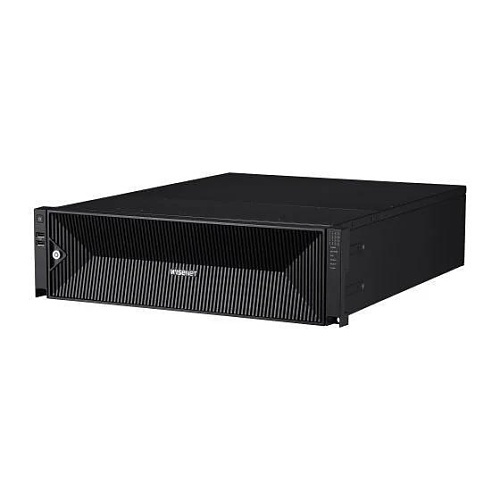

Hanwha PRN-6400DB4-120TB 64-Channel 8K AI NVR, 400Mbps H.265, H.264, and MJPEG CODECs, 120TB
PRN-6400DB4|SQ-6400DB4
Hanwha PRN-6400DB4-120TB 64-Channel 8K AI NVR, 400Mbps H.265, H.264, and MJPEG CODECs, 120TB
PRN-6400DB4|SQ-6400DB4

Hanwha Vision
Hanwha PRN-6400DB4-120TB 64-Channel 8K AI NVR, 400Mbps H.265, H.264, and MJPEG CODECs, 120TB
PRN-6400DB4 | SQ-6400DB4
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Experience advanced surveillance with the Hanwha PRN-6400DB4-120TB, a powerful 64-channel 8K AI NVR designed for license-free recording. It supports multiple video codecs including H.265, H.264, and MJPEG, ensuring flexible compatibility. Equipped with up to 16 internal SATA drives (up to 10TB each) and RAID 5 and 6, it offers robust storage options and data protection. The device features Automatic Recovery Backup, dual stream recording with WiseStream technology, and delivers seamless 400 Mbps recording and 32 Mbps playback. Enjoy enhanced visuals with HDMI/VGA dual display supporting up to 32MP resolution. AI search functions enable intelligent video analysis with select Hanwha cameras, all accessible via a user-friendly web UI 2.0 without any plugins. Upgrade your security setup today with this feature-rich NVR.
Main Features
- 8K NVR, up to 64 channels, License-free recording
- Supports H.265, H.264, & MJPEG CODECs,
- Up to 16 fixed internal SATA HDDs (10TB max per HDD), RAID 5 & 6 recording
- ARB (Automatic Recovery Backup)
- 400 Mbps recording / up to 32 Mbps playback
- Dual stream recording, WiseStream technology
- HDMI/VGA dual display, max. resolution of 32MP recording/display
- Add AI search capabilities to select P, X and Q series Hanwha Cameras
- AI search (Wisenet AI cameras only)
- web UI 2.0 (no plugins required)
General Information
Name: Hanwha PRN-6400DB4-120TB 64-Channel 8K AI NVR, 400Mbps H.265, H.264, and MJPEG CODECs, 120TB
Category: Hanwha Vision, Video Surveillance, Recording Devices & Servers, Network Video Recorders (NVRs), ADI Pro Rewards
UPC Code:
Country of Origin: Vietnam. Country of origin is subject to change.
Specifications
ADI Part Number SQ-6400DB4 Brand Name Hanwha Vision Manufacturer Hanwha Group Manufacturer Part Number PRN-6400DB4-120TB Product Model PRN-6400DB4 Product Name 64CH 8K 400Mbps H.265 AI NVR Product Type Video Surveillance Station
Connectivity Technology Wired Effective Camera Resolution 32MP Maximum Frame Rate 1920fps Number of Channels 64 Power Consumption 285W Storage Capacity 120TB
HDMI Yes Number of USB Ports 1
Ethernet Yes Remote Management Yes
Depth 22.5" Height 5.2" Width 17.3"
Hard Drive Capacity 120TB Recording Formats 8K
Maximum Resolution 8160 x 6120
Limited Warranty 3-Year
