Speco H2LB1 2MP HD-TVI Bullet Camera with White Light Intensifier and Junction Box, 2.8mm Fixed Lens, White
H2LB1|SO-H2LB1
Speco H2LB1 2MP HD-TVI Bullet Camera with White Light Intensifier and Junction Box, 2.8mm Fixed Lens, White
H2LB1|SO-H2LB1
Speco Technologies
Speco H2LB1 2MP HD-TVI Bullet Camera with White Light Intensifier and Junction Box, 2.8mm Fixed Lens, White
H2LB1 | SO-H2LB1
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

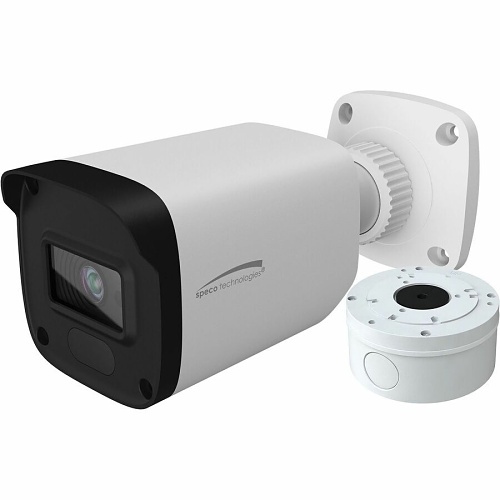

Monitor an indoor or outdoor area with the white H2LB1 2MP Outdoor HD-TVI Bullet Camera with White Light Intensifier from Speco Technologies. This unit uses a 1/2.8" progressive scan CMOS sensor to transmit 1080p resolution video at 30 fps. A white LED provides up to 98' of illumination for recording full-color video in low-light conditions. The H2LB1 features a 2.8mm fixed lens. HD-TVI, HD-CVI, AHD, and CVBS signal outputs are supported. An Up-the-Coax (UTC) connection allows for control of the camera via OSD.
Main Features
- Full HD 1080P at 30 FPS
- 24/7 full color image with white light intensifier
- White LED range: Up to 98' (depending on scene reflection)
- Weather resistant
- 5 Year warranty
- NDAA Compliant
- Smart LED (auto or manual modes)
- IP67
General Information
Name: Speco H2LB1 2MP HD-TVI Bullet Camera with White Light Intensifier and Junction Box, 2.8mm Fixed Lens, White
Category: Speco Technologies, Video Surveillance, HDoC Cameras, Bullet Cameras
UPC Code: 030519035927
Country of Origin: China. Country of origin is subject to change.
Specifications
ADI Part Number SO-H2LB1 Brand Name Speco Technologies Manufacturer Speco Technologies Manufacturer Part Number H2LB1 Packaged Quantity 20 Product Line AI line Product Model H2LB1 Product Name H2LB1 Product Series AI line Product Type Surveillance Camera Weight 0.93lb
Connectivity Technology Wired Effective Camera Resolution 4MP Field of View Horizontal: 95.3° Vertical: 53.2° Diagonal:100.7° Lens Mount Type M12 Lens Type Fixed Maximum Aperture F1.6 Maximum Frame Rate 30fps Minimum Focal Length 2.8mm Night Vision Yes Night Vision Type IR Number of IR LEDs 1 Video Formats NTSC, PAL Video Signal Format NTSC, PAL
Image Sensor Type CMOS Night Vision Distance 98 ft Wide Dynamic Range Yes
Ingress Protection Rating IP67 NDAA Compliant Yes
Maximum Video Resolution 1920 x 1080 Number of Sensors 1
Maximum Operating Temperature 140°F Minimum Operating Temperature -22°F Operating Humidity 95% (Non-condensing) Operating Temperature (T-T) -22-140°F Storage Temperature (T-T) -22-149°F
Longest Shutter Speed 1/3s Minimum Illumination 0.005 lux Shortest Shutter Speed 1/100000 s
Network (RJ-45) Yes
Focal Length 2.8 mm Lens Included Yes Maximum Focal Length 2.80 mm
Remote Management Yes
Color White Depth 5" Durability Dustproof, Waterproof, Weather Resistant Form Factor Bullet Height 2.7" Package Type Box Width 2.7"
Input Voltage 12V DC
Length 6.5" Mount Type Ceiling Mount, Pole Mount, Wall Mount
Recording Formats Full HD
Analog Video Signal Format AHD, CVBS, CVI, HDCVI, HDoC, HD-TVI, TVI Maximum Resolution 1280 x 720
Limited Warranty 5-Year
Country of Origin CN Environmental Certification EC, EU RoHS, REACH, WEEE Environmentally Friendly Yes Features Automatic White Balance, Back Light Compensation (BLC), Built-in OSD Function, Day/Night, Digital Noise Reduction, Digital Wide Dynamic Range (D-WDR), Noise Reduction, Wide Dynamic Range Indoor/Outdoor Indoor, Outdoor Package Contents Camera, Screws, QSG, CD, Drill Template, Junction Box
