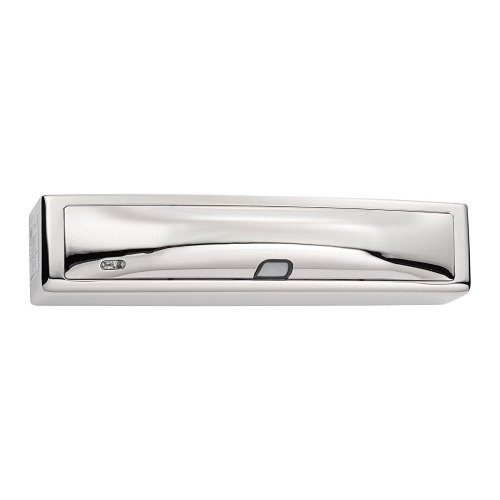

Image of SN-M680EBDX9
Securitron by ASSA ABLOY

Securitron M680EBDX-629 EcoMag Magnalock, PIR Request to Exit, 12/24VDC, Bright Stainless Steel

M680EBDX-629 | SN-M680EBDX9

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

Intelligent. Optional door prop sensing allows the magnet to de-energize the coil when the door is held open for extended periods, dropping the power draw as low as 20mA at 12V. Versatile. Optional integrated PIR Request to Exit is an available option for this new magnalock, providing the flexibility to customize as needed. Eco-Friendly. With up to 80% decreased energy consumption, and biodegradable packaging insert, the Securitron M680E is the most eco-friendly magnalock available today. Easy installation. Updated strike plate mounting template makes for faster, easier installation.

Main Features

  • Strike plate mounting template provides the easiest install for out-swing doors
  • LED Indicator shows the lock is secure, open, or has an incomplete bond
  • Tamper Switch sends an alarm output if the cover is removed and is selectable to NO or NC
  • Optional integrated BondSTAT and integrated Door Position Switch
  • Autosensing dual voltage with microprocessor technology
  • Adjustable automatic relock timer (0 to 30 seconds)
  • Energy efficient, low power usage
  • Size optimized for use with door closers

General Information

Name: Securitron M680EBDX-629 EcoMag Magnalock, PIR Request to Exit, 12/24VDC, Bright Stainless Steel
Category: Securitron by ASSA ABLOY, Access Control, Locking Devices, Magnetic Locks
UPC Code: 784607046561
Country of Origin: . Country of origin is subject to change.
