Securitron by ASSA ABLOY

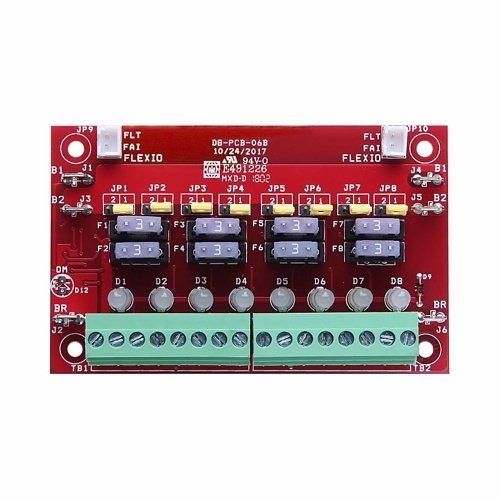

Securitron D8 Power Distribution Module, 3A, ATM Fused
D8 | SN-D8
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The Securitron AQL D8/D8P Distribution Module offers programmable outputs to either of the two voltages available when used in an Securitron AQL dual voltage power system or to the continuous output of the power supply when used in a single voltage system.
Main Features
- Dual Buss architecture for field selectable Buss 1 or Buss 2 output
- 8 outputs for auxiliary power distribution or direct lock control and additional accessory power distribution modules
- Output Protection- D8 ATM style fuse - 3 A/per output- D8P solid state circuit breaker - 2.5 A/per output
- DC Out visual indicators (Dual color LED per output - Green- 12 V | Blue- 24 V)
- Multiple modules can be daisy chained to add additional outputs
- Multi-voltage ready when used with B100
- Snap-in style standoffs with fast-on connect cables for easy field installation
- Fiberglass PCB and high efficiency circuit generates less heat leading to a longer service and lower MTBF
- MagnaCare lifetime replacement, no-fault, no questions asked warranty
General Information
Name: Securitron D8 Power Distribution Module, 3A, ATM Fused
Category: Securitron by ASSA ABLOY, Batteries & Power Supplies, Power Management, Power Distribution Modules
UPC Code: 0784607048848
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number SN-D8 Brand Name Securitron by ASSA ABLOY Manufacturer ASSA ABLOY Manufacturer Part Number D8 Product Model D8 Product Name AQL D8 Power Distribution Module Product Type Module
Color Blue, Green
Limited Warranty Lifetime
Country of Origin US
