Product Overview

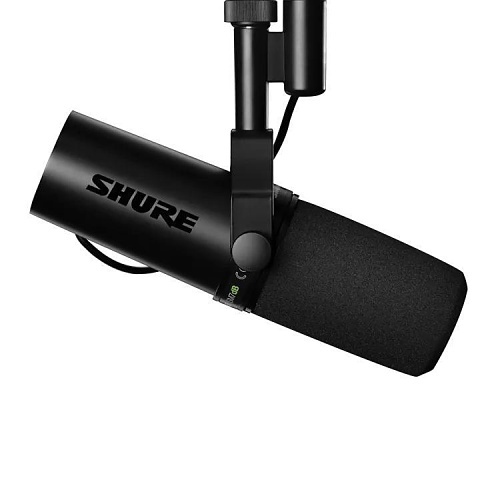

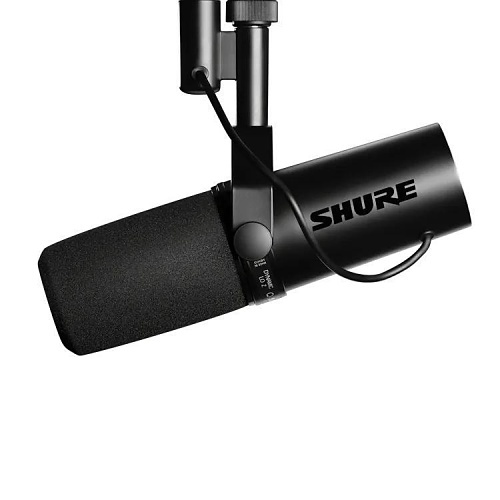

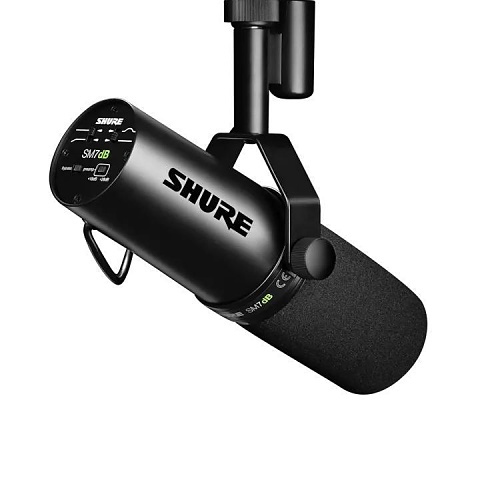

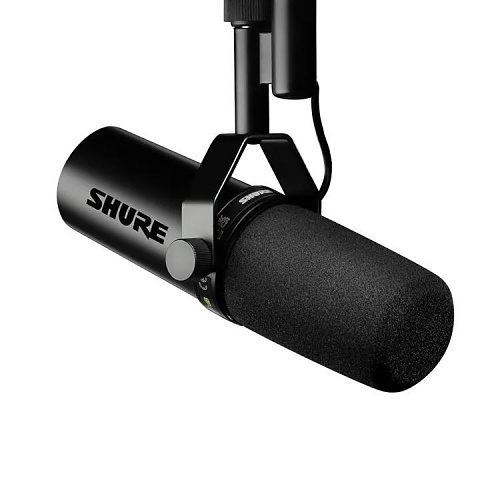

The SM7dB is a cardioid dynamic microphone with a Shure-designed built-in preamp providing up to +28 dB of low-noise, flat, transparent gain ideal for lower-output interfaces and simplified audio chains. Delivers warm and smooth audio for vocal and studio applications. Preamp bypass switch, adjustable bass roll-off and presence boost, electromagnetic hum shielding, internal shock mounting, and external windscreen ensure clear and consistent audio reproduction.
FEATURES
- Built-in active preamp providing either +18dB or +28dB of extra gain delivers levels suitable for any interface.
- Flat, wide-range frequency response for exceptionally clean and natural reproduction of both music and speech.
- Preamp bypass switch to revert to original SM7B performance.
- Bass roll-off and mid-range emphasis (presence boost) EQ switch controls.
- Superior rejection of electromagnetic hum, optimized for shielding against broadband interference emitted by computer monitors
- Internal "air suspension" shock isolation virtually eliminates mechanical noise transmission.
- Highly effective pop filter eliminates need for any add-on protection against explosive breath sounds, even for close- up vocals or narration.
- Yoke mounting with captive stand nut for easy mounting and dismounting provides precise control of microphone position.
- Classic cardioid polar pattern, uniform with frequency and symmetrical about axis, to provide maximum rejection and minimum coloration of off-axis sound.
- Rugged construction and excellent cartridge protection for outstanding reliability.
Main Features
- Confidence that each patch cord delivers specified component level performance
- U/UTP Stranded 24AWG copper cable with a nominal diameter of 0.235" allows for high-density installations and superior panel cable management
- Performs in center of ANSI/TIA-568.2-D component range, ensuring interoperability and superior performance
- Optimizes performance and consistency by reducing untwist at plug
- Prevents snags and provides easy release, saving time on frequent moves, adds and changes
- Provides easy access in high-density applications
General Information
Name: Shure SM7DB Dynamic Vocal Microphone (Cardioid with +28
Category: Shure, Pro AV, Commercial Audio, Pro Microphones, Headphones & Headsets
UPC Code: 042406756860
Country of Origin: Mexico. Country of origin is subject to change.
Specifications
ADI Part Number SB-SM7DB Brand Name Shure Manufacturer Shure, Inc Manufacturer Part Number SM7DB Product Model SM7dB Product Name SM7dB Microphone Product Type Microphone
Application/Usage Music, Speech, Studio Impedance 150 ohms Material Aluminum, Steel Polar Pattern Cardioid
Maximum Frequency Response 20 kHz Minimum Frequency Response 50Hz
Microphone Controls Bass Rolloff, Gain, Wide
Microphone Technology Dynamic Microphone Type Shock Mount
Color Gray Height 5.9" Weight 1.85lb
Length 7.8"
Limited Warranty 2-Year
Package Contents - SM7dB Microphone
- Foam Windscreens
- 3/8" Thread Adapter
