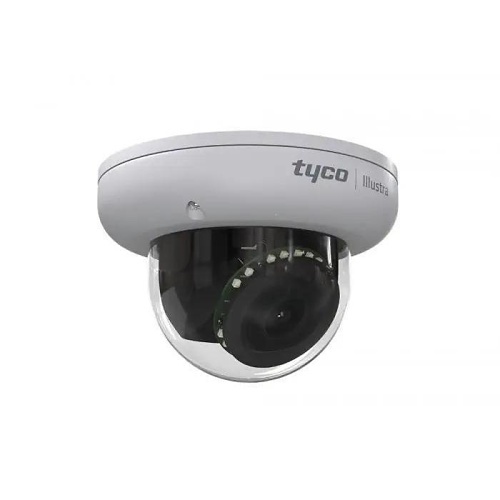

American Dynamics IPS08-D14-OI04 Illustra Pro Gen4 8MP Indoor / Outdoor MiniDome Camera, 6-22mm Lens, IP67, IK10,
IPS08-D14-OI04|RO-IP8D14OI4
American Dynamics IPS08-D14-OI04 Illustra Pro Gen4 8MP Indoor / Outdoor MiniDome Camera, 6-22mm Lens, IP67, IK10,
IPS08-D14-OI04|RO-IP8D14OI4
American Dynamics
American Dynamics IPS08-D14-OI04 Illustra Pro Gen4 8MP Indoor / Outdoor MiniDome Camera, 6-22mm Lens, IP67, IK10,
IPS08-D14-OI04 | RO-IP8D14OI4
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Illustra Pro Gen 4 cameras are ready for the rise of intelligence at the edge. With built-in AI based object classification, events can be narrowed to classes such as person, car, bus, motorcycle and more. Forensic searches become more accurate and situational awareness becomes more automated with fewer missed incidences and false alarms. Choose from a variety of analytic rules to customize the solution that will be most beneficial to your business and begin gathering transformative data instantly.
Main Features
- Built in AI delivers accurate object classification, powerful situational awareness and security automation
- Integrated recess mount,universal back-box,a range of IO options including Micro HDMI plus WIFI configuration via the Illustra Tools App
- Exposure profile settings allow the mini-dome to adapt to scenarios such as license plate recognition,gaming and more
- Ultra low light capabilities to maintain color image quality without IR
General Information
Name: American Dynamics IPS08-D14-OI04 Illustra Pro Gen4 8MP Indoor / Outdoor MiniDome Camera, 6-22mm Lens, IP67, IK10,
Category: American Dynamics, Video Surveillance, IP Cameras, Dome Cameras
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number RO-IP8D14OI4 Brand Name American Dynamics Manufacturer Part Number IPS08-D14-OI04 Product Line Illustra Product Series Pro Gen4
Effective Camera Resolution 8MP Field of View Horizontal, Vertical Lens Type Varifocal Maximum Aperture f/1.6 Maximum Frame Rate 30 fps Minimum Focal Length 6 mm Night Vision Yes Night Vision Type Infrared (IR)
Night Vision Distance 164' Wide Dynamic Range Yes
Ingress Protection Rating IP66, IP67
Maximum Video Resolution 3840 x 2160
Maximum Operating Temperature 149°F Minimum Operating Temperature -58°F Operating Humidity 0-90%
Longest Shutter Speed 1/4 Second Minimum Illumination 0 lux Shortest Shutter Speed 1/10000 Second
HDMI Yes
Focal Length 6-22 mm Lens Included Yes Maximum Focal Length 22 mm Minimum Aperture f/2.4
Color White Form Factor MiniDome Height 5.3"
Input Voltage 24V AC, PoE
Diameter 5.4"
Storage Type Memory Card
Environmental Certification AS/NZS CISPR 32 Class A, CSA 22.2 No. 60950, EN50130-3, EN55024, EN55032 Class A, EN60950-1, FCC Part 15 Class A, ICES-003/NMB-003 Class A, IEC 60950-1, RoHS, UL60950-1, WEEE Impact Protection Rating IK10 Indoor/Outdoor Indoor, Outdoor
