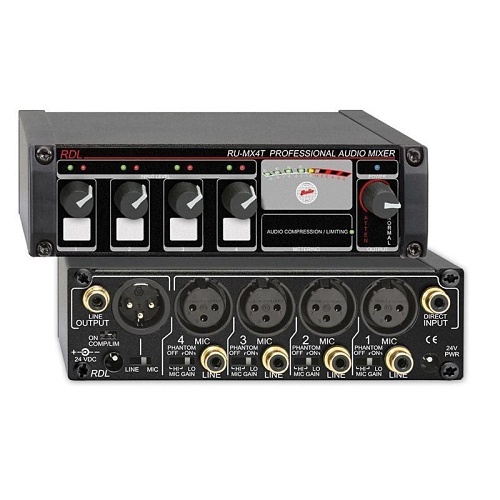

RDL RU-MX4T Professional 4-Channel Microphone/Line Mixer with Phantom Power and Transformer

RU-MX4T | RL-RUMX4T

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The RU-MX4 is the ideal choice in many applications where a combination of balanced mic and/or unbalanced line-level signals needs to be mixed. Balanced connections use XLR connectors. Unbalanced signals are coupled through phono jacks. Each of the four inputs can accept either a balanced XLR mic or an unbalanced line-level input. 24V phantom is individually switch selectable for each mic input. The unbalanced phono jack LINE OUTPUT from one RU-MX4 may connect to the unbalanced input of other equipment, or may be connected to the DIRECT input of another RU-MX4 to expand mixing capabilities. The RU-MX4 provides one balanced output, switchable for mic or line level. Audio levels are adjustable on the front panel. Each input channel is equipped with a front-panel dual-LED VU meter that follows standard VU ballistics. The final mix is displayed on an LED string VU meter featuring a visually comfortable arc motion. A rear-panel switch allows the soft-knee compressor to be switched in or out. A factory installed output isolation transformer is available by ordering the RU-MX4T.

Main Features

  • Four Channel Audio Mixer with Expansion Capability
  • XLR Microphone Inputs, Phono Jack Line Inputs
  • Switchable 24 V Phantom for Each Mic Input
  • Mic or Line XLR Output, Switchable
  • Unbalanced Line Output and Direct Input
  • Integral Compressor/Limiter, Switchable
  • Studio-Quality, Low-Noise Performance

General Information

Name: RDL RU-MX4T Professional 4-Channel Microphone/Line Mixer with Phantom Power and Transformer
Category: Radio Design Labs, Pro AV, Commercial Audio, Pro Audio Mixers
UPC Code: 813721013088
Country of Origin: United States. Country of origin is subject to change.

Specifications

Product Documents and Resources

Product Data Sheet
