Product Overview

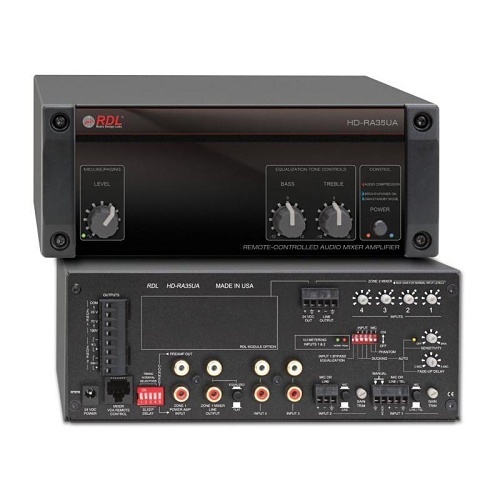

The HD-RA35UA is a four input audio mixer amplifier for systems demanding the broadest range of features and the highest energy efficiency. Two output power amplifier zones, 35W (Zone 1) and 4W (Zone 2), are driven from high-efficiency Class D amplifier stages. The mixer and amplifier sections all normally shut down (standby "sleep" mode) when audio is absent and automatically turn on when needed. A paging source is normally connected to Input 1. The Zone 1 amplifier output level for inputs 2, 3 and 4 is VCA controlled using various optional RDL remote controls. This allows the user controls to be conveniently wall mounted without running audio to and from the remote control location. The Zone 1 output provides a constant voltage output (25V, 70V or 100V). The Zone 2 amplifier output drives an 8 ohm speaker and/or 600 ohms telephone equipment.
General Information
Name: RDL HD-RA35UA Rackmount Audio Amplifier, 35W, Universal Power Supply
Category: Radio Design Labs, Pro AV, Commercial Audio, Pro Amplifiers
UPC Code: 813721010759
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number RL-HDRA35UA Brand Name Radio Design Labs Manufacturer Part Number HD-RA35UA
Input Voltage 24V DC
Environmental Certification ENERGY STAR
