Product Overview

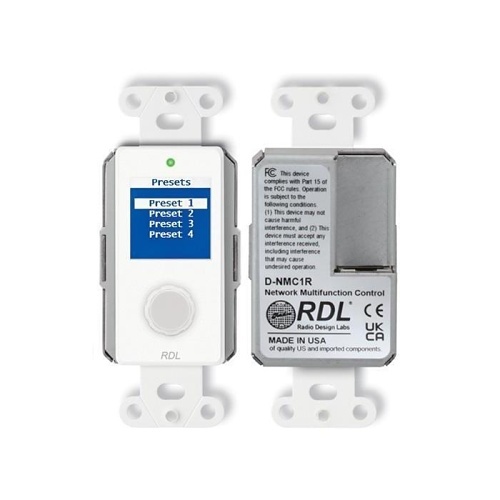

The D SERIES-NMC1R is a rotary remote control that provides volume control and muting at single or multiple user locations. Opening the installer-enabled MENU provides for selecting, starting or pausing an audio track on a network-connected Bluetooth device, or selecting from installer-programmed PRESETS that can set or clear Dante routings, select devices controlled by the -NMC1R and execute all settings and commands available in RDL CONSOLE, RDL configuration software for networked endpoints and controls. The -NMC1R connects to a local network that may include compatible RDL audio and control modules as well as Dante devices from RDL and other manufacturers. The unit is menu-driven using a full-color LCD display. If multiple -NMC1R units are assigned to control the same RDL product or group of products, the -NMC1R units all remain active with tracking volume displays. RDL D-NLC1R rotary remote volume controls may also be used as auxiliary volume controls in a zone where the primary control is an RDL D-NMC1R. Network bandwidth typically supports up to 4 of these remote controls per zone.
Main Features
- Rotary Encoder Remote Control with Full-Color LCD Display
- Knob Rotation Adjusts Audio Volume Up or Down
- Attenuation Adjustment in 1 dB Steps From 0 to 64 dB
- Programmable Knob Action Acceleration
- Momentary Knob Push to Mute/Unmute with Screen Indication
- Extended Knob Push to Open Menu
- Menu Accesses Volume,Bluetooth Control or Presets
- Presets Execute Volume, Routings and RDL CONSOLE Commands
- Each Preset Controls One or Multiple Dante Devices
- Selectable Screen Display Color Themes
General Information
Name: RDL D-NMC1R Network Remote Control with Screen
Category: Radio Design Labs, Residential AV, Residential Projectors & Display Accessories, Universal Remote Controls
UPC Code: 813721016614
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number RL-DNMC1R Brand Name Radio Design Labs Manufacturer Part Number D-NMC1R
Depth 1.61" Height 4.11" Package Type Cardboard Box Width 1.8"
Compatibility DD-RN, D-RN, Other RDL Products Country of Origin US Environmental Certification CE, UKCA Environmentally Friendly Yes
