RDL DDB-BN2M Wall-Mounted Bi-Directional Mic / Line Dante Interface 2 x 2
DDB-BN2M|RL-DDBBN2M
RDL DDB-BN2M Wall-Mounted Bi-Directional Mic / Line Dante Interface 2 x 2
DDB-BN2M|RL-DDBBN2M
Radio Design Labs
RDL DDB-BN2M Wall-Mounted Bi-Directional Mic / Line Dante Interface 2 x 2
DDB-BN2M | RL-DDBBN2M
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

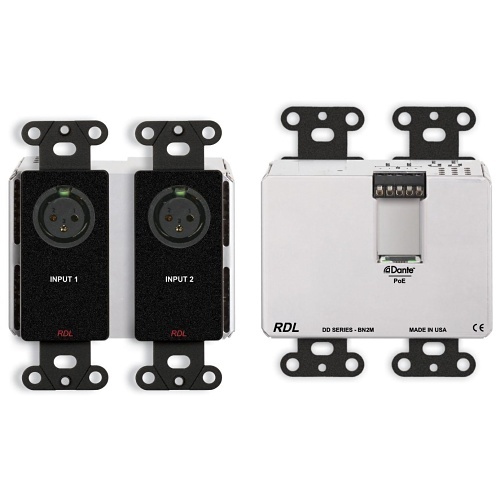

The DDB-BN2M is a complete wall-mounted Dante audio network interface. It features two XLR mic or line inputs on the front panels, plus two-line outputs on a rear-panel detachable terminal block. Special software is not required to configure the DDB-BN2M. Each XLR input provides three switches that may be set from the front of the unit when the cover plate is not installed. One switch enables or disables P48 phantom- the second switch selects the mic or line gain range- the third switch sets the gain. Each rear-panel output provides a switch to set the output to balanced professional or unbalanced consumer level. The DDB-BN2M fits a standard US dual-gang electrical box or an RDL WB-2 back box for installations in thinner European or equivalent walls. The DDB-BN2M is PoE powered and is available in multiple finishes with optional customized graphics.
General Information
Name: RDL DDB-BN2M Wall-Mounted Bi-Directional Mic / Line Dante Interface 2 x 2
Category: Radio Design Labs, Pro AV, Commercial Audio, Pro Wall Plates
UPC Code: 813721016812
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number RL-DDBBN2M Brand Name Radio Design Labs Manufacturer Part Number DDB-BN2M
Mount Type Wall Mount
