Comprehensive USB10G-CC4K-20PROPAF Integrator Series USB 3.2 Gen-2 USB-C 4K AV and Data Active Optical Plenum Cable, 20'
USB10G-CC4K-20PROPAF|RH-USB10GCC4
Comprehensive USB10G-CC4K-20PROPAF Integrator Series USB 3.2 Gen-2 USB-C 4K AV and Data Active Optical Plenum Cable, 20'
USB10G-CC4K-20PROPAF|RH-USB10GCC4
Comprehensive
Comprehensive USB10G-CC4K-20PROPAF Integrator Series USB 3.2 Gen-2 USB-C 4K AV and Data Active Optical Plenum Cable, 20'
USB10G-CC4K-20PROPAF | RH-USB10GCC4
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Comprehensive's Pro AV/IT USB 10G 4K AV Active Optical Plenum Cables are bus powered and can extend the distance of USB connectivity with consistent and reliable signal performance. This AOC cable adopted the USB 3.2 Gen 2 technology and supports USB SuperSpeed 10Gbps data transmission, 4K AV (via DisplayPort Alt Mode) and power delivery 60W up to 32.8' lengths. These active optical extended cables are plenum rated for commercial installing of safe in-wall applications. This cable meets all bandwidth requirements of USB 3.2 Gen II and is backward compatible to USB 3.1, 3.0 and 2.0 peripherals.
Main Features
- Designed for U.C.C, video conferencing and remote work and learning environments
- Supports data transfer speeds up to 10 Gbps and power delivery up to 60W for all lengths
- Supports 4K video up to 4K at 60 with DisplayPort 1.2 Alternate Mode
- Extends webcams, PTZ cameras, keyboards, mice, USB Hubs, USB microphones, external drives, flash sticks, VR headsets and other digital devices

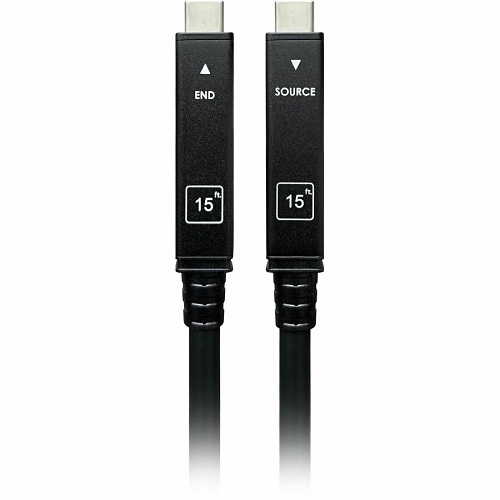

- SureLength Indicators on the connector heads make it easy to organize for installations
- Supports all major operating systems including Windows and MacOS
- Backward compatible with USB 3.1, 3.0 and 2.0
- UL CMP-OF/FT-6 Rated for all plenum applications
General Information
Name: Comprehensive USB10G-CC4K-20PROPAF Integrator Series USB 3.2 Gen-2 USB-C 4K AV and Data Active Optical Plenum Cable, 20'
Category: Comprehensive, Pro AV, Commercial Connector Cables, Pro USB Cables
UPC Code: 808447086270
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number RH-USB10GCC4 Brand Name Comprehensive Manufacturer Comprehensive Connectivity Company Manufacturer Part Number USB10G-CC4K-20PROPAF Packaged Quantity 1 Product Line Pro AV/IT Integrator Series Product Name Pro AV/IT Integrator Series STP Fiber Optic Audio/Video Data Transfer Cable Product Type AV/Data Transfer Cable
American Wire Gauge 24AWG Cable Type Fiber Optic Connector on First End USB Type C Male Connector on Second End USB Type C Male Connector Plating Gold Device Supported Audio/Video Device, Camera, Display, External Hard Drive, Keyboard, Microphone, Monitor, Mouse, Notebook, PC, Peripheral Device, Printer, PTZ Camera, Scanner, USB Device, USB Hub, Video Conferencing System, VR Headset, Webcam Fiber Optic Mode Multimode Jacket Material PVC Jacket Type CMP, FT6, Plenum Shielding Yes
Data Transfer Rate 10 Gbit/s
Cable Length 20' Color Black
Maximum Resolution 3840 x 2160
Limited Warranty Lifetime
Features Active, AOC Technology, Charging, DisplayPort Alternate (ALT) Mode, EMI Protection, Flexible, Molded, Non-slip, Shielded Twisted Pair (STP), SureLength, USB- Power Delivery (USB PD)
